Removing the Coupling
Disassembly
1. Unplug the unit.
2. Remove the motor, coupling, and crank arm assembly (see page 48).
3. Remove the crank arm (see page 50).
4.
Remove the screw in the coupling holding the motor shaft.
5. Remove the coupling.
Assembly
1. Place the key of the coupling in the slot of the motor shaft.
2.
Mount the coupling and tighten the screw holding the motor shaft.
3. Place the key of the crank arm in the slot of coupling
4. Mount the crank arm and tighten the screw.
5. Reassemble the motor, clutch, and crank arm assembly.

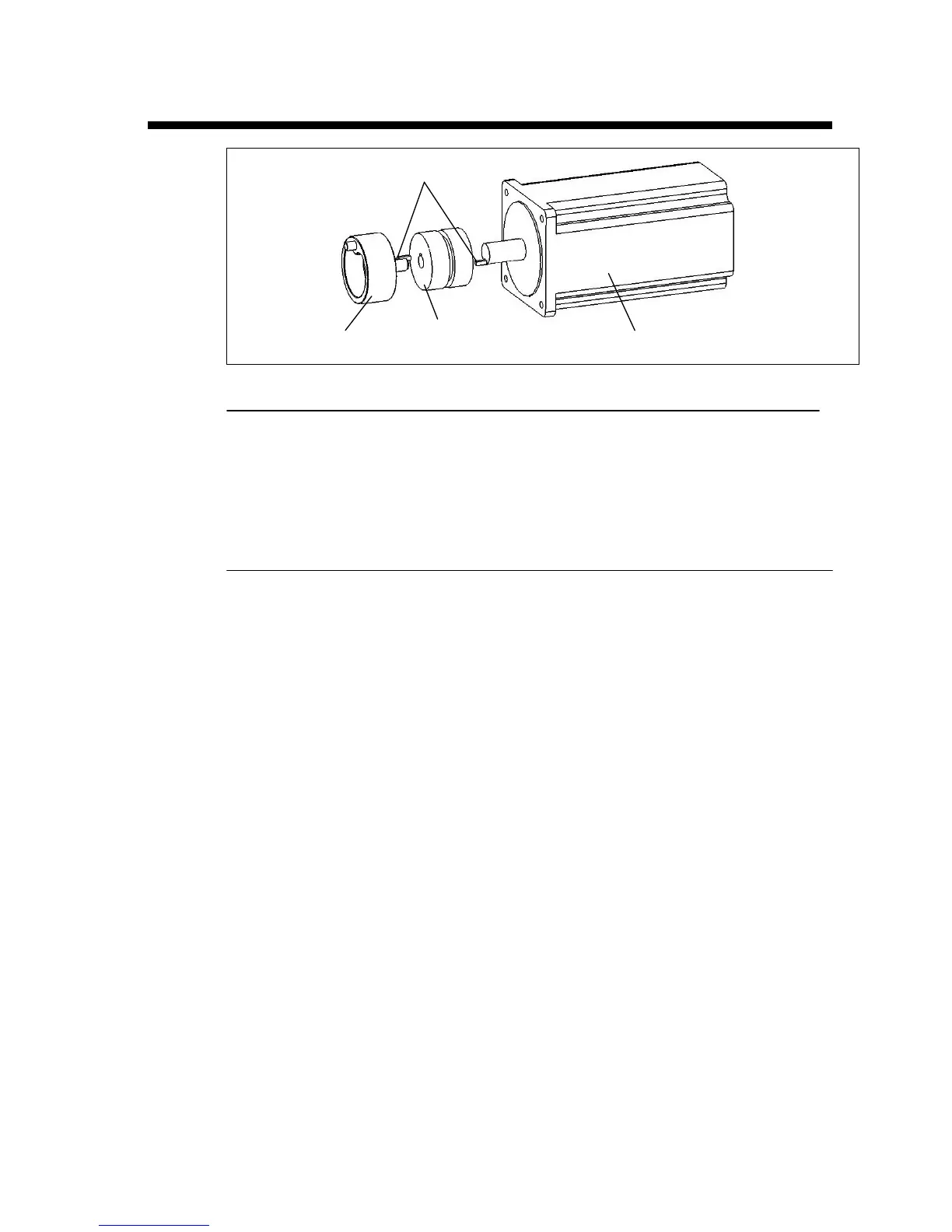

Key
Crank Arm
Coupling
Motor
