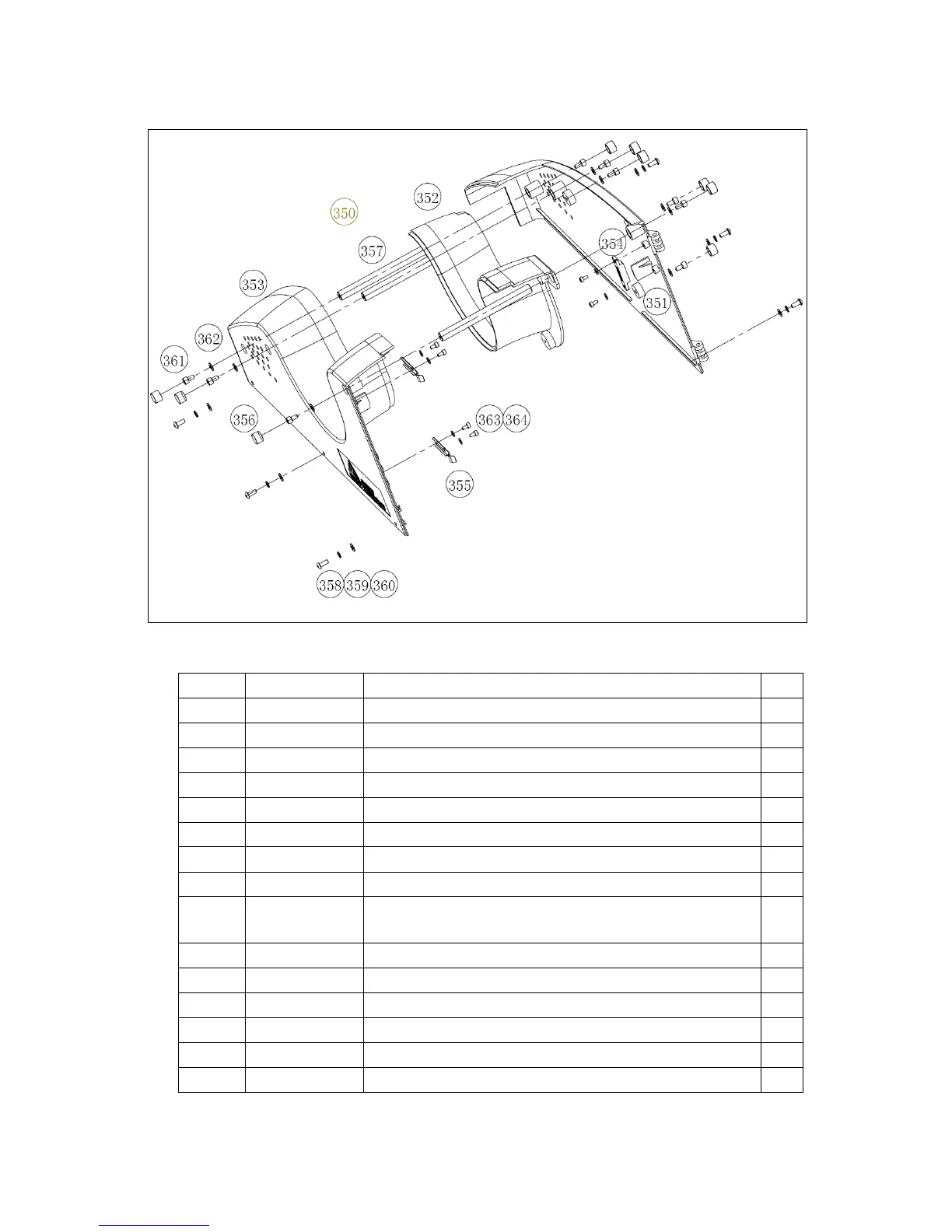

Cover R & L Assy. Exploded Illustration:
Cover R & L Assy. Spare Part List:
Item P/N Description Qty.
350
3-06-0027-01 Assy, Cover R & L 1
351 3-05-0055-01 Cover, Left 1
352 3-05-0056-01 Cover, Top 1
353 3-05-0057-01 Cover, Right 1
354 3-05-0058-01 Board, Wire 1
355 DT0018-001 Spring, Front Door 2
356 3-05-0088-01 Cover, Screw 9
357 3-05-0085-01 Shaft, Cover 3
358 140002010501
Screw, Hexagon Socket Half-
Round Head, Stainless Steel
4X10
6
359 140012012601 Lock Washer, D4 6
360 140012000302 Washer, D4 6
361 140001057701 Screw, Hexagon Socket Cup Head, Black 4X8 9
362 140012012101 Washer, Black D4 9
363 140001000802 Screw, Hexagon Socket Cup Head, Black 3X6 6
364 140012012201 Washer, Black D3 6
To Next Page
