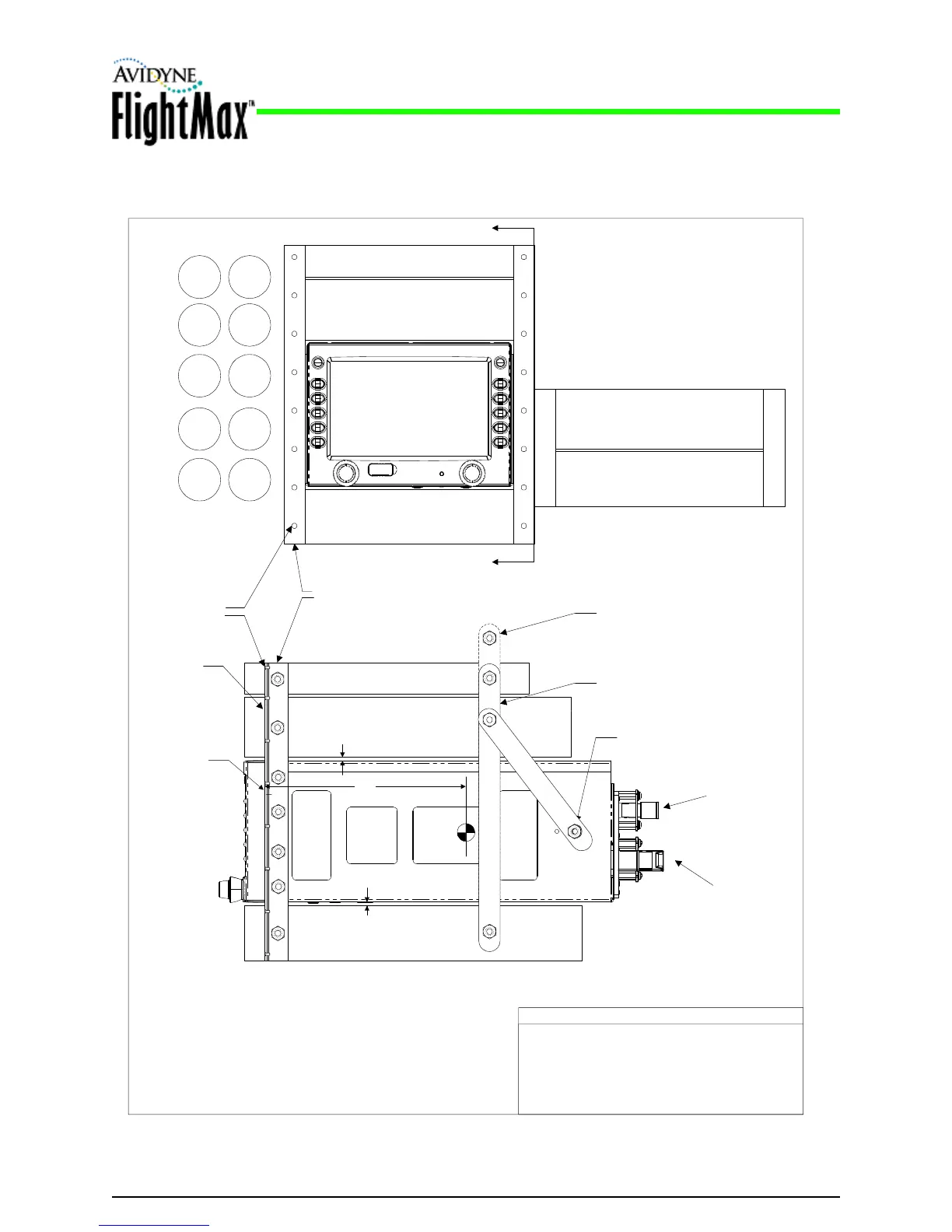

Figure 32: EX500 Tray Support Structure Panel
Installation Manual
P/N 600-00175-000 Rev 04 EX500, EX600, Tray & Panel Dimensions
- 93 -
D.8 EX500 Tray Support Structure Panel
EX500 INSTALLATION MECHANICAL
PANEL, TRAY SUPPORT STRUCTURE
AVIDYNE
FASTEN ANGLE W ITH
RIVETS MS20426A-
FRONT VIEW - RADIO PANEL
A - A
SIDE VIEW - MFD IN
TRAY
WT =7.2 LBS
AUTOPILOT OR OTHER AVIONICS
AUDIO PANEL OR OTHER AVIONICS
GPS/NAV/COM OR OTHER AVIONICS
RPMRPM
MAPMAP
OIL TOIL T
OIL POIL P
FFFF
6.25
MOMENT
ALUMINUM 2024-T3
PER AMS 4037 & AMS QQ-A-250/4
ANGLE, 0.063 X 0.75 X 0.063"
BOTH SIDES
TAIL BRACE (TYPICAL)
2024-T3 ALUMINUM
PER AMS 4037 & AMS QQ-A-250/4
FLAT 0.75 MIN x 0.032 MIN
BOTH SIDES
NAV/COM OR OTHER AVIONICS
TRANSPONDER OR OTHER AVIONICS
A
A
#6-32 FLAT HEAD
SCREWS AN510
3 PLACES, BOTH SIDES
NOTES:
1. DIMENSIONS IN INCHES.
2 WEIGHT AND MOMENT FOR MFD, TRAY, AND CONNECTORS.
3. REAR SUPPORT STRUCTURE REQUIRED.
ATTACH TO EXISTING
STRUCTURE IF AVAILABLE
SPACE TRAYS BY
0.05
SPACE TRAYS BY
0.05
AFT FACING
PLANE OF PANEL
INSTRUMENT OR
RADIO PANEL
FLIGHTMAX
EX500
2-W AY
DATALINK ANTENNA
VIDEO INPUT
(NOT SUPPORTED - SHOWN
FOR REFERENCE ONLY)
