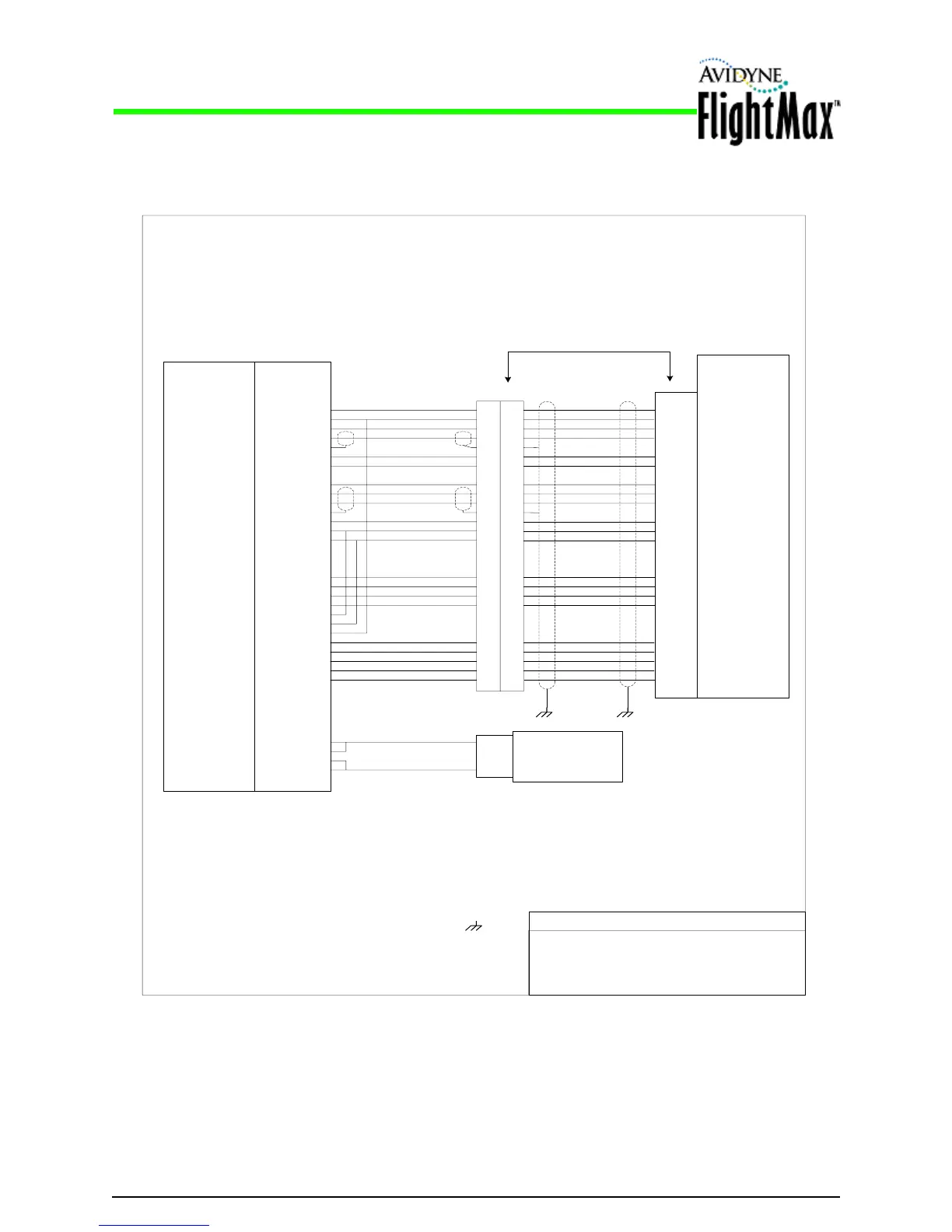

Figure 43: RDR-1100/1200 RADAR w/Adaptor Cable Wiring
Installation Manual
Radar Wiring P/N 600-00175-000 Rev 04
- 104 -
J.5 RDR-1100/1200 RADAR w/ Adaptor Cable Wiring
27,34 GND
8 RT ON/OFF
11 TRIGGER
15 GAIN HI
25 VID INT
13 DATA2
12 DATA1
7 TEST
19 +20 VDC
21 -20 VDC
1 BORE SIGHT
9 AZ DRV
10 AZ DRV90
14 TILT ADJ
P1
GND E
RADAR ANTENNA
RECEIVER
TRANSMITTER
(ART)
BENDIX/KING
RDR-1100/1200
RT-1201A/131A
P1001
RT ON/OFF G
TRIGGER N
TRG SHLD P
GAIN HI R
GAIN LO S
DATA2 V
DATA1 W
DATA SHLD Z
TEST Y
+20 VDC H
-20 VDC M
BORE SIGHT F
AZ DRV G
AZ DRV90 H
TILT ADJ L
VID INT U
+20 VDC B
-20 VDC C
GND Z
28 VDC IN A
GND C
GND D
28 VDC IN B
ANTENNA
J1003
POWER
P/O P1001
EX500/600 INSTALLATION WIRING
DIAGRAM
BENDIX/KING RADAR RDR-1100/1200
WITH ADAPTER CABLE
AVIDYNE CORPORATION
RT FAULT T
16 GAIN LO
STAB DISABL A
TILT HI J
TILT LO K
ROLL HI X
ROLL LO Y
6 STAB DISABL
20 TILT HI
22 TILT LO
32 ROLL HI
33 ROLL LO
B B
D D
K K
L L
M M
N N
R R
S S
T T
j j
V V
E E
J J
W W
X X
Y Y
b b
P2J1004
P P 2 RT FAULT
C C
Z Z
a a
e e
g g
AVIDYNE
100-00082-003
NOTE 1
GND
28VDC
NOTES:
1. P1 AND P2 SHIELDS TERMINATED TO CONNECTOR BACKSHELL
(CHASSIS GROUND).
AVIONICS POWER
AVIDYNE
EX500/EX600
FLIGHTMAX MFD
