Avigilon H4 User Manual

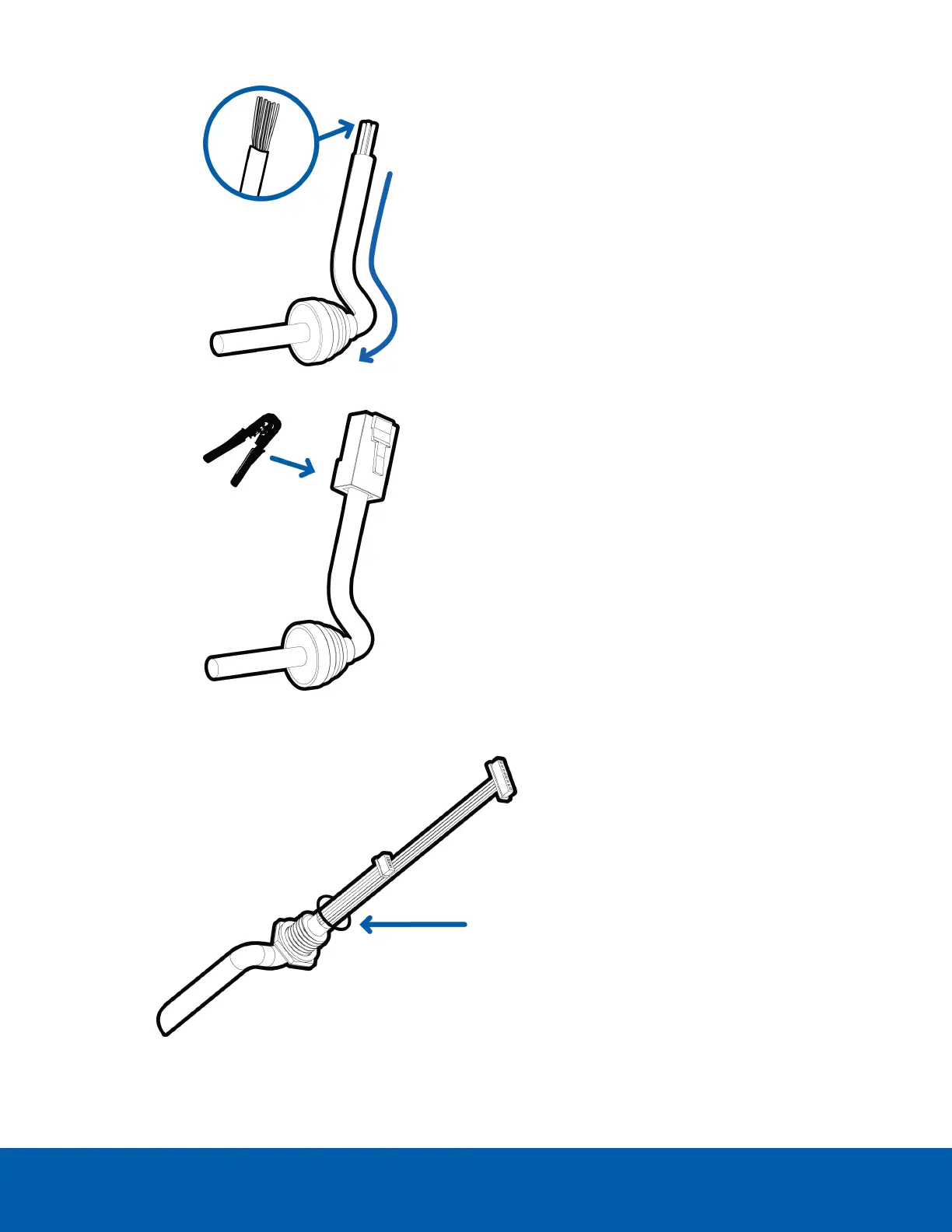

c. Crimp the connector onto the Ethernet cable.
2. If you are using the auxiliary cable, thread the rubber washer through the end with the white
connectors.
3. Do not connect the cables to the dome camera till indicated.
Preparing the Cables 9

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
