A320 PersonAl Mixer User GUide
Connect the A320 to an A-Net Distributor
The A320 Personal Mixer needs to be connected with a Cat-5 cable to a powered port on an A-Net
Distributor such as the D800. The A-Net Distributor supplies the multi-channel digital audio data as well as
the DC power required to run the A320.
e
to/from Personal Mixers
Load
Power
Sync
12345678
D800
I II I II I II I II I III II I III II

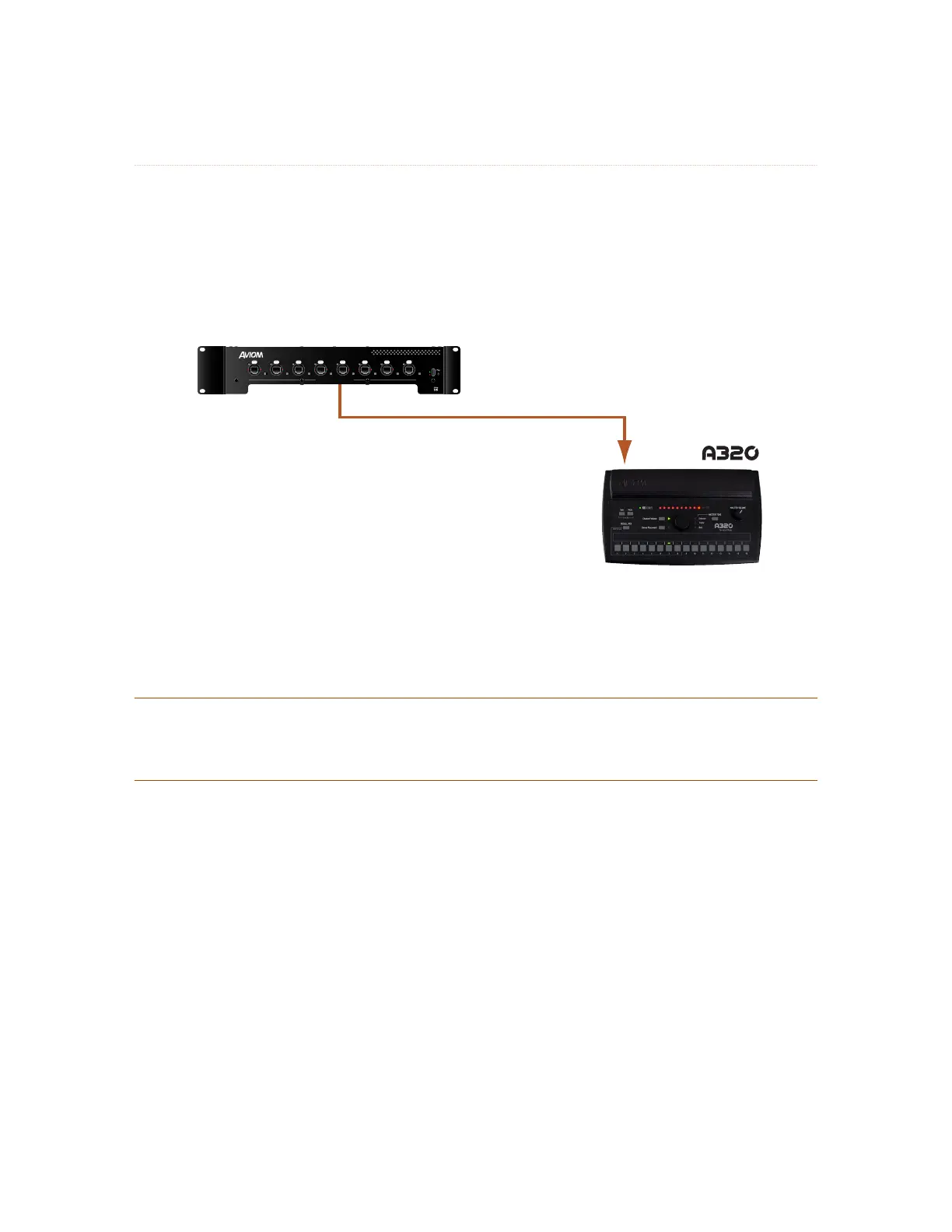

Connect A320 Personal Mixer to an A-Net Distributor.
The Cat-5 cable connecting the A-Net Distributor and the A320 can be up to 400 feet (122 m) in length.
P
Note: When connecting the A320 Personal Mixer to a D800 or D800-Dante A-Net Distributor, the
D800’s front panel switches must be set to the “ I ” position. The “ II “ position is for use only
with the A360 Personal Mixer.
