A320 PersonAl Mixer User GUide
Using Multiple Input Devices
When using multiple input devices in a personal mixing system, each input device provides one 16-channel
bank of slots to the network. The Slot Range switches on the rear panel of the AN-16/i v.2 control the bank
assignment. Up to four input devices may be used to create a pool of 64 slots.

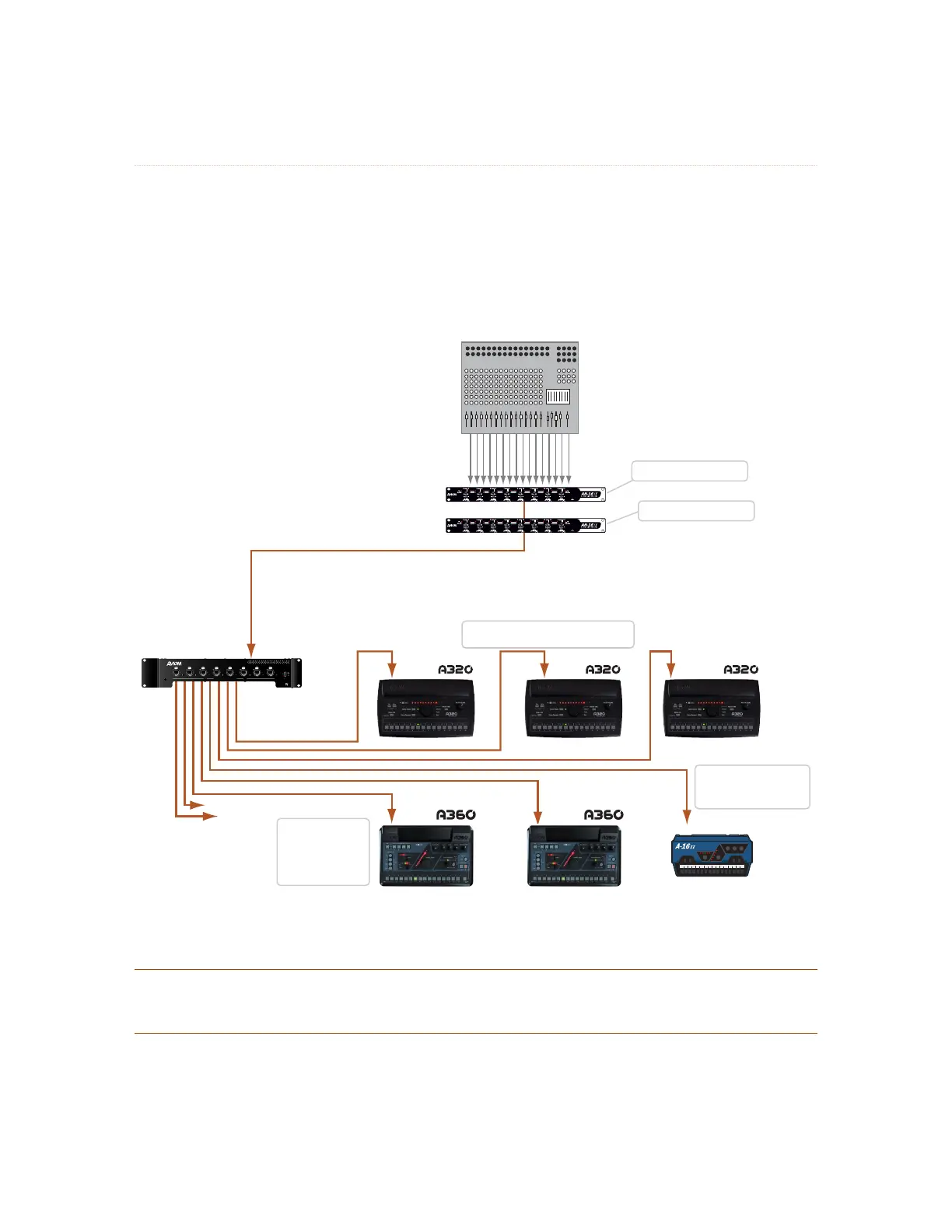

The system shown below shows 32 input sources being used by a variety of personal mixers.
AN-16/i v.2
AN-16/i v.2
A-16II
D800
e
to/from Personal Mixers
Load
Power
Sync
12345678
D800
I II I II I II I II I III II I III II
Channels 1-16Channels 1-16
Channels 17-32Channels 17-32
A-16IIs utilize
channels 1-16 only
A-16IIs utilize
channels 1-16 only
A360s can
utilize all
channels in
the system
A360s can
utilize all
channels in
the system
A320s utilize channels 1-32A320s utilize channels 1-32
A 32-input personal mixing system with A320 Personal Mixers along with the A360 and A-16II Personal Mixers
P
Note: The A320 Personal Mixer can use Slots 1-32 of a network with multiple input devices. Only the
A360 Personal Mixer can use network Slots 33-64.
