A320 PersonAl Mixer User GUide
Stereo Wireless In-Ear Systems
The A320’s Stereo Mix Out may be connected to the left/right inputs of a wireless transmitter used for
in-ear monitoring. A Y-cable that splits the TRS (tip-ring-sleeve) stereo output of the A320 to a pair of TS
(tip-sleeve) mono left and right outputs is required. Note that the connection from the left and right TS
cables is unbalanced. If the inputs to the wireless transmitter are XLR only, a special cable may need to be
made. Consult the transmitter’s documentation for information about properly connecting unbalanced
signals to its balanced XLR inputs.

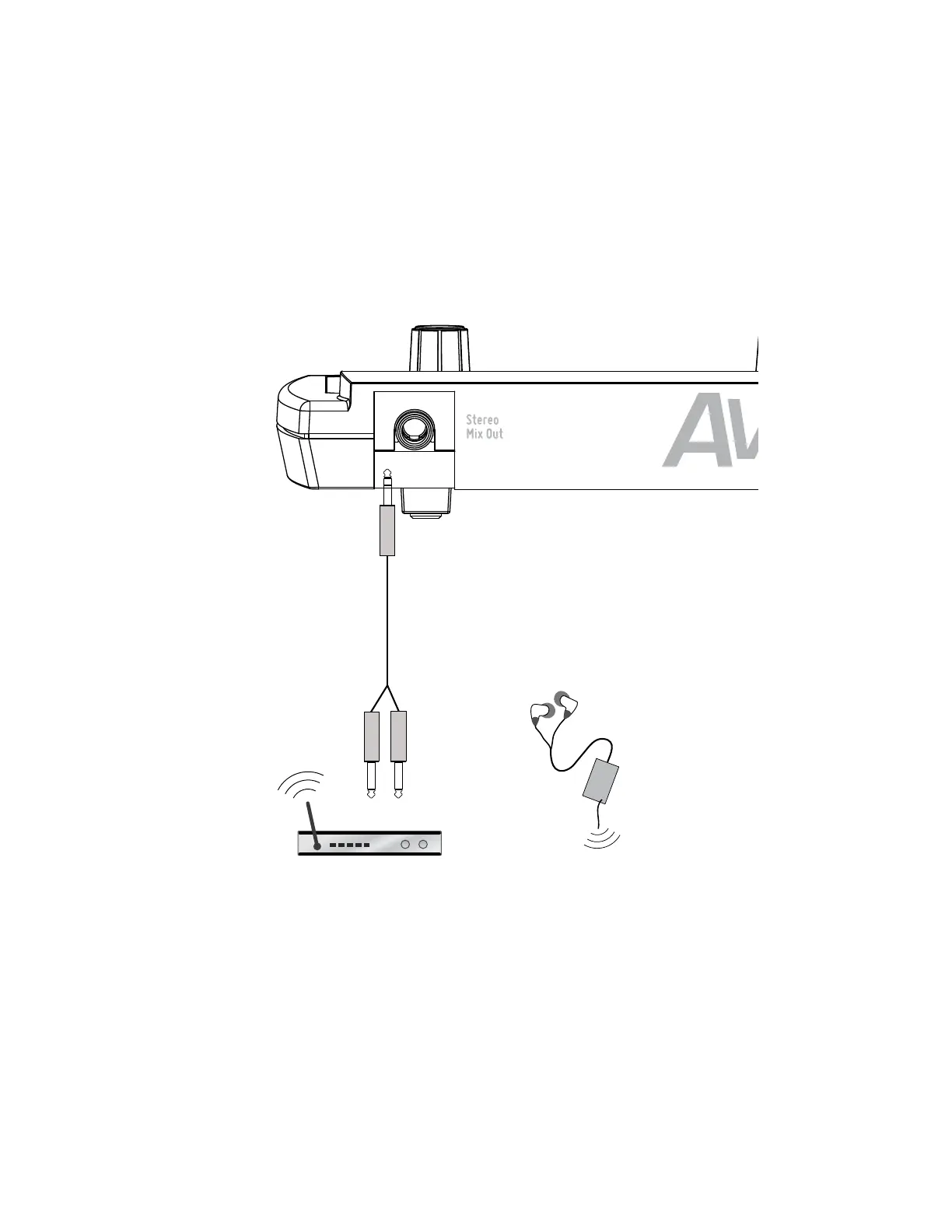

The Stereo Mix Out can be connected to a wireless in-ear transmitter with a Y-cable.
If you need to create a custom adapter cable, note that the TRS tip connector carries the left audio signal,
the ring carries the right signal, and the sleeve provides ground for both. The left and right signals are
unbalanced in this case.
