Cat-5 Cable Pinout
The tables below detail the two wiring pinout variations for Cat-5 cables. When making custom cables,
either pinout can be used, but both ends of a cable must use the same wiring pattern.

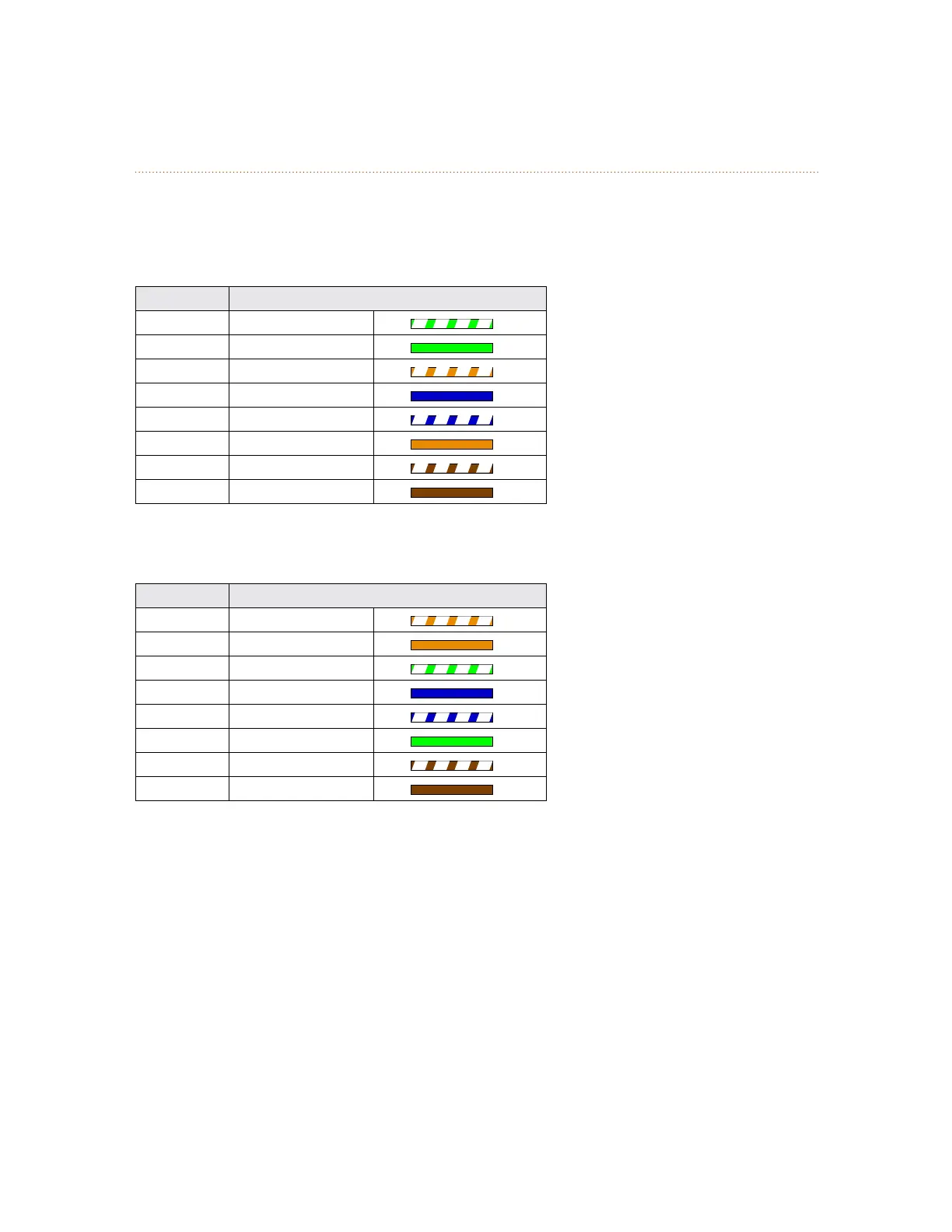

T568A
RJ45 Pin Wire Color
1 White/Green
2 Green
3 White/Orange
4 Blue
5 White/Blue
6 Orange
7 White/Brown
8 Brown
T568B
RJ45 Pin Wire Color
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
