Avocent HMX User Manual

Chapter 2: Installation 13
3. Turn on the HMX 1050 user station. A connection will be automatically established with the
remote workstation.
NOTE: VGA monitors can be connected to the HMX 1050 user station by using a DVI-I to VGA adaptor.

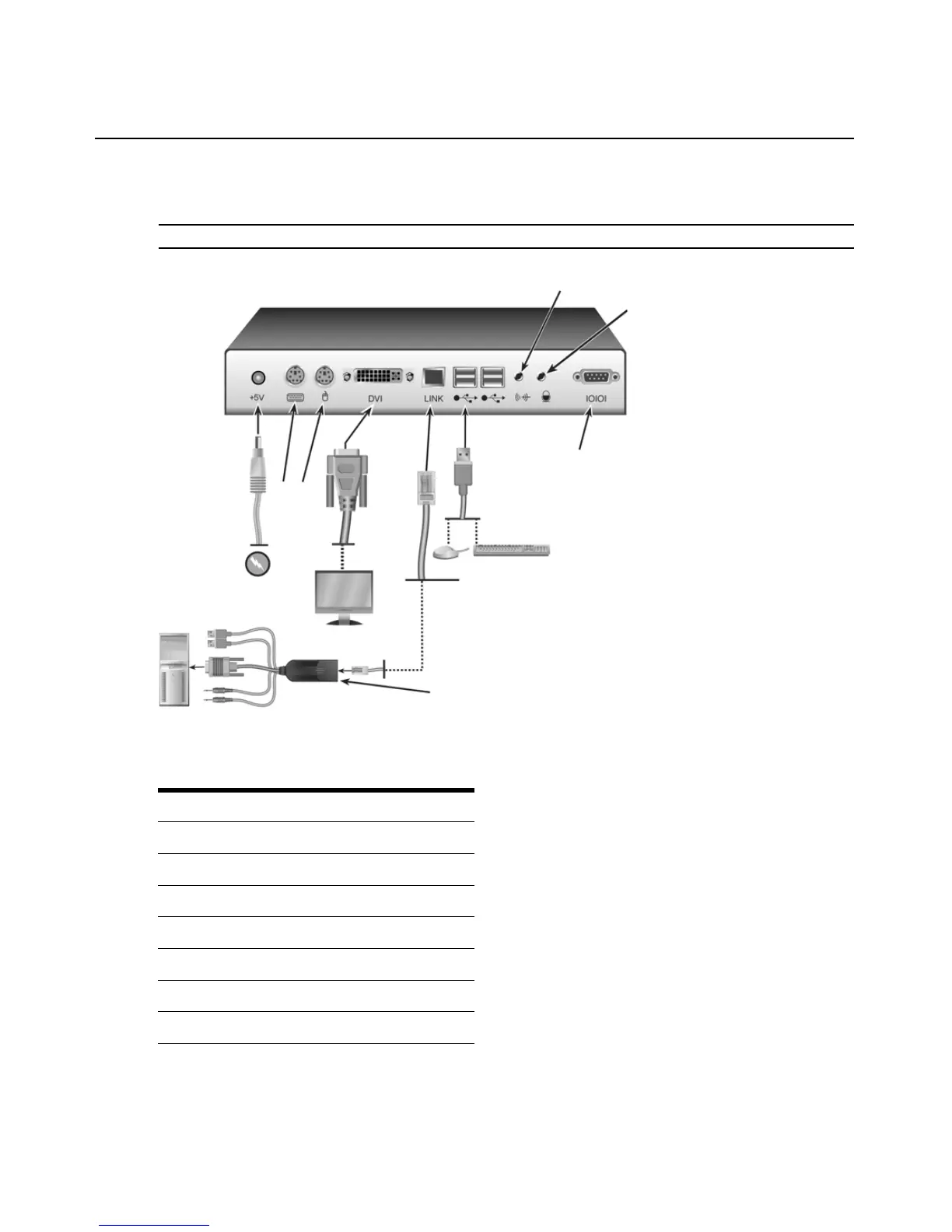

Figure 2.3: HMX 1050 User Station and HMIQDI Transmitter Installation
Table 2.3: Figure 2.3 Descriptions
Number Description
1 HMX 1050 User Station
2 Microphone Port
3 Speaker Port
4 External Power Supply
5 PS/2 Ports
6 Serial Port
7 Remote Workstation
2
3
6
9
7
1
8
4
5

Avocent HMX Specifications

General

Type	KVM extender
Resolution Support	Up to 1920x1200
USB Support	Yes
Distance	Up to 100 meters
Video Interface	DVI
Audio	Yes
Power Supply	External
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
