12 HMX Extender System Installer/User Guide

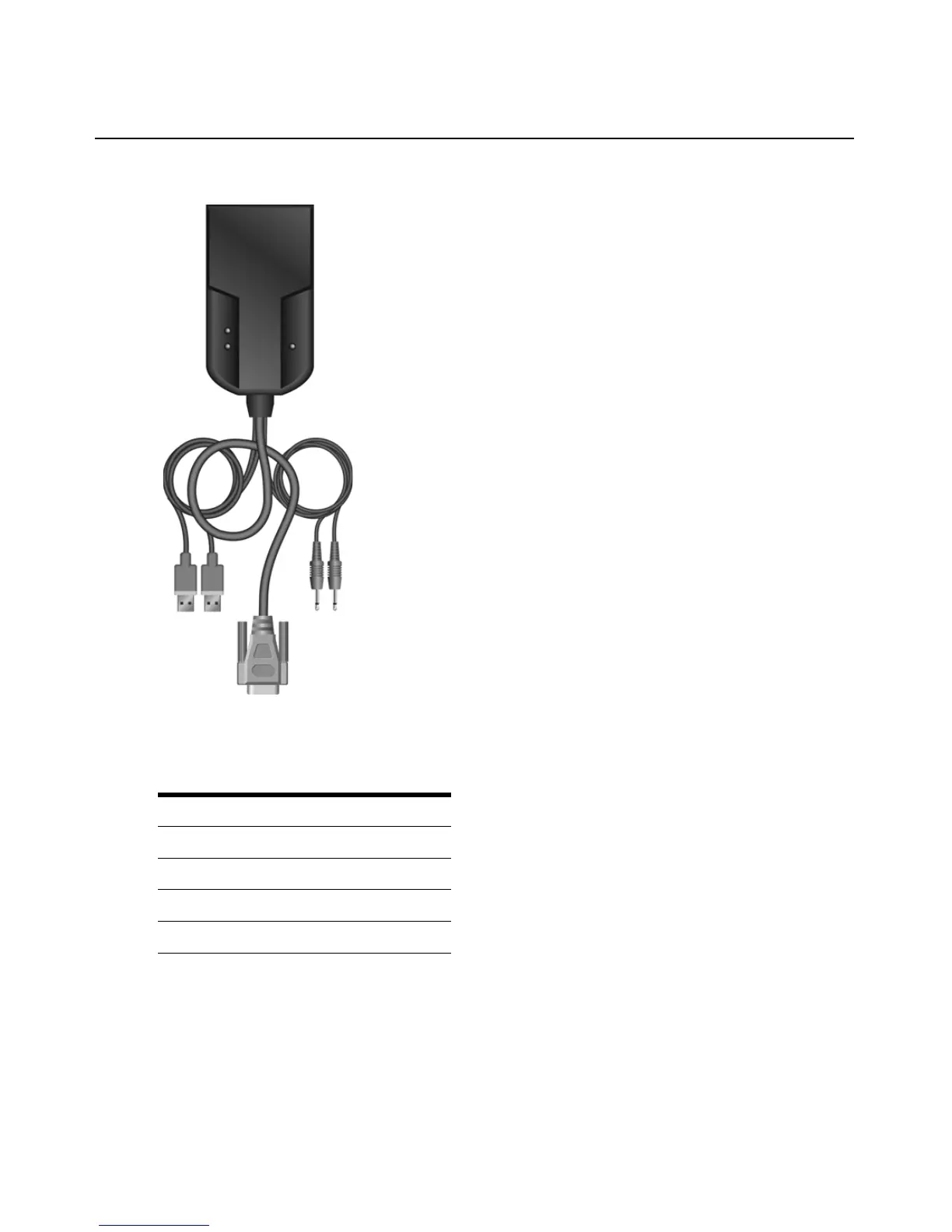

Figure 2.2: HMIQDI Transmitter
To connect the HMX 1050 user station:
1. Connect your keyboard, monitor, mouse and other peripherals cables to the appropriately
labeled ports on the back of the HMX 1050 user station.
2. Connect the UTP cable to the RJ-45 port on the back of the HMX 1050 user station.
Table 2.2: Figure 2.2 Descriptions
Number Type of Connector
1 USB
2 Video
3 Mic
4 Line-out
1
2
3
4

Avocent HMX Specifications

General

Type	KVM extender
Resolution Support	Up to 1920x1200
USB Support	Yes
Distance	Up to 100 meters
Video Interface	DVI
Audio	Yes
Power Supply	External
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
