Chapter 2: Installation 15

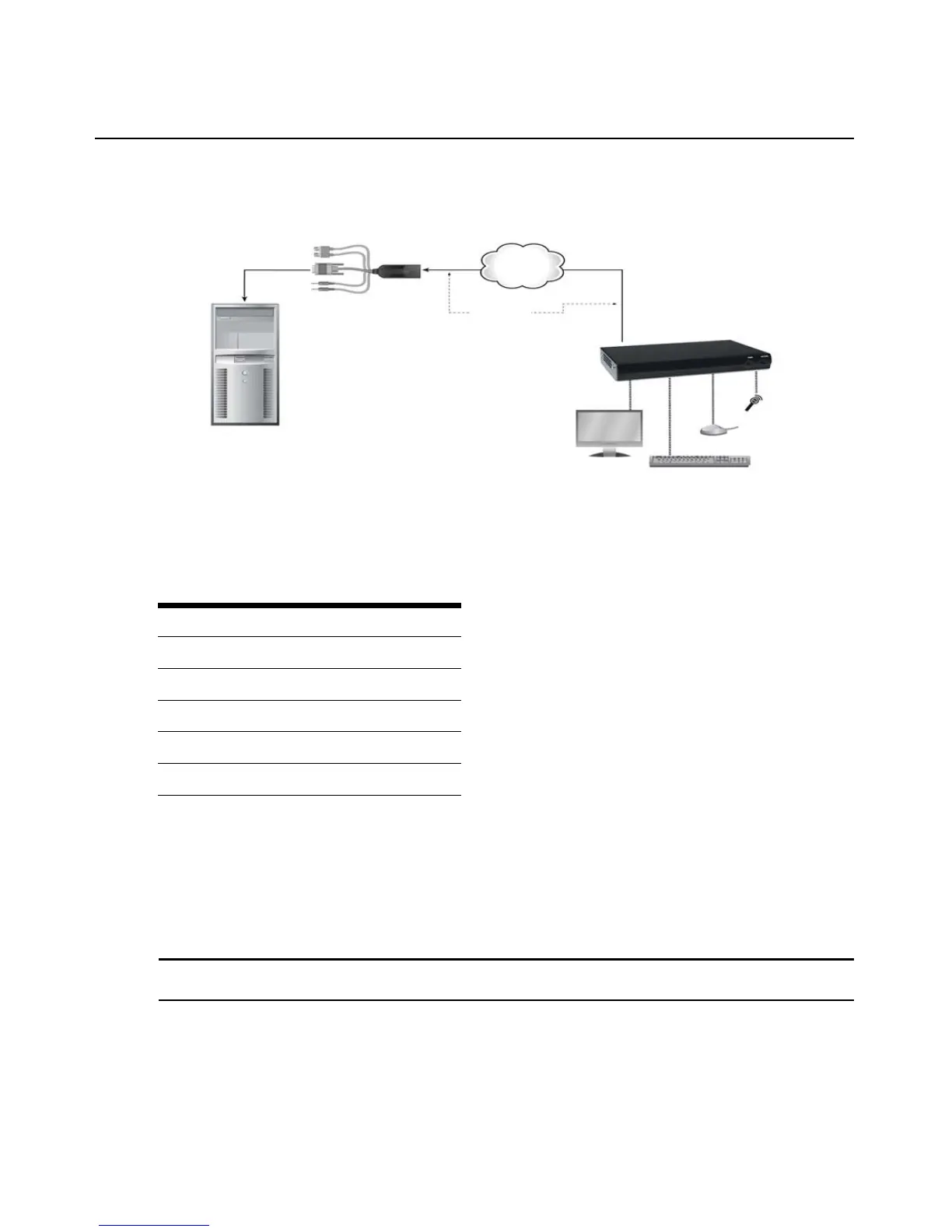

Figure 2.4: Networked Installation
The HMX 1050 user station has been preconfigured with factory-default network settings. If you
install only one HMX 1050 user station and one HMIQDI transmitter on a subnet, you do not need
to change these default network settings. If you install multiple units on the same subnet, you will
need to assign a unique IP address to each unit or configure them for DHCP. This can be done via
the serial port and must be carried out before displaying multiple devices on the same network. See
Chapter 3 for more information.
NOTE: The DHCP server must be configured to assign IP addresses to the user station that do not expire. Do
not change the mode to DHCP unless the equipment is connected to a DHCP server.
Table 2.4: Figure 2.4 Descriptions
Number Description
1 Remote Workstation
2 HMIQDI Transmitter
3 IP Network
4 HMX 1050 User Station
5 UTP Cable
