Avocent HMX User Manual

Chapter 3: Operations 27
To display system information:
1. Press Print Screen and select the User tab to display user information for your HMX user
station.

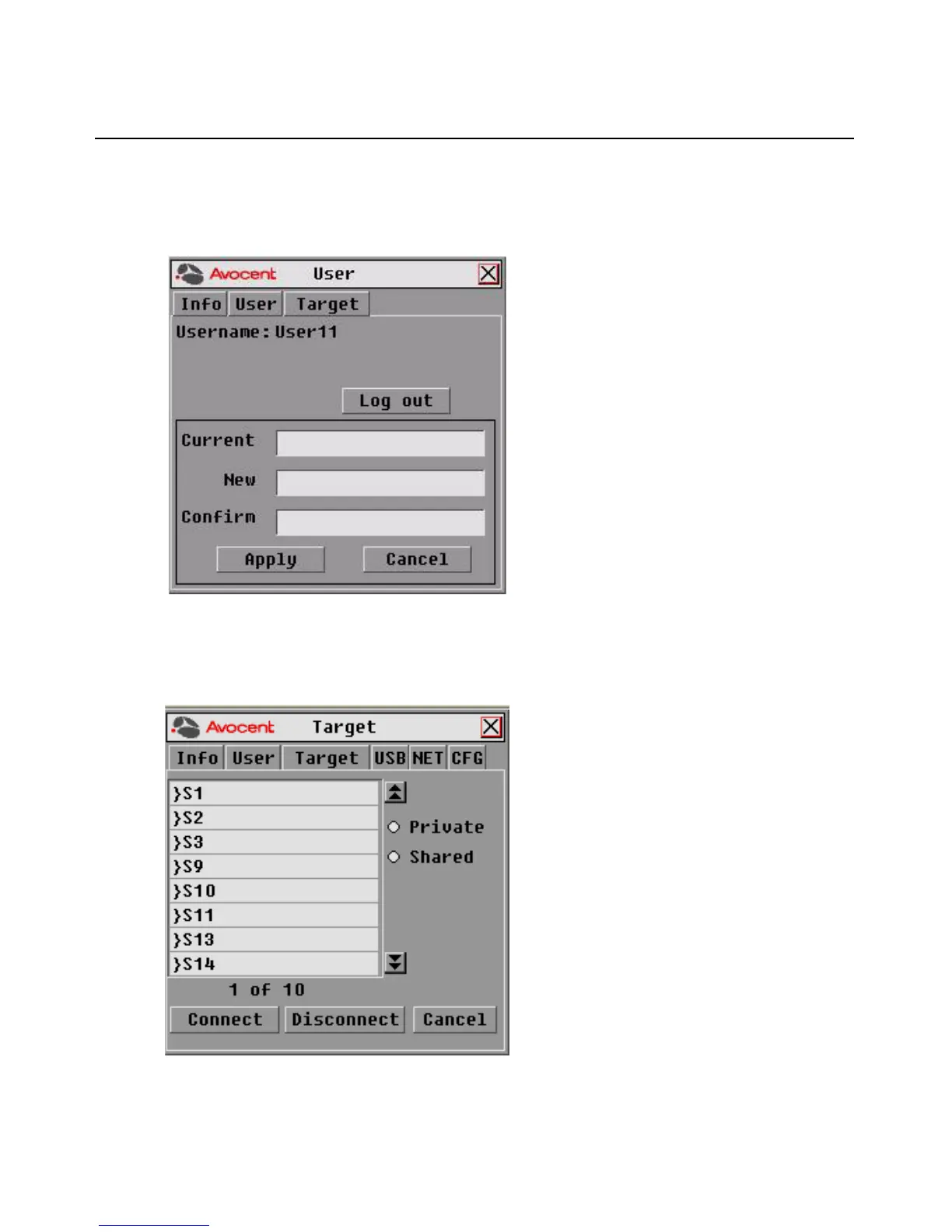

Figure 3.1: User Dialog Box (Matrix Mode)
2. If the user has access to a list of target computers, the Target dialog box will appear when the
Target tab is selected. The Target dialog box displays a list of target computers to which the
user has access.
Figure 3.2: Target Dialog Box

Avocent HMX Specifications

General

Type	KVM extender
Resolution Support	Up to 1920x1200
USB Support	Yes
Distance	Up to 100 meters
Video Interface	DVI
Audio	Yes
Power Supply	External
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
