Example:
 in order to set low threshold 1000g in scale B1.5 (d=0.5g) the following
order should be sent:
S L 1 0 0 0 . 0 CR LF (53h 4Ch 31h 30h 30h 30h 2Eh 30h 0Dh 0Ah),
 in order to set low threshold 100kg in scale B150 (d=50g) the following
order should be sent:
S L 1 0 0 . 0 0 CR LF (53h 4Ch 31h 30h 30h 2Eh 30h 30h 0Dh 0Ah),),
 Setting high threshold value (option):
Computer Scale: S H D1...DN CR LF (53h 48h D1...DN 0Dh 0Ah),
D1...DN – threshold value (see )
Scale Computer: without response.

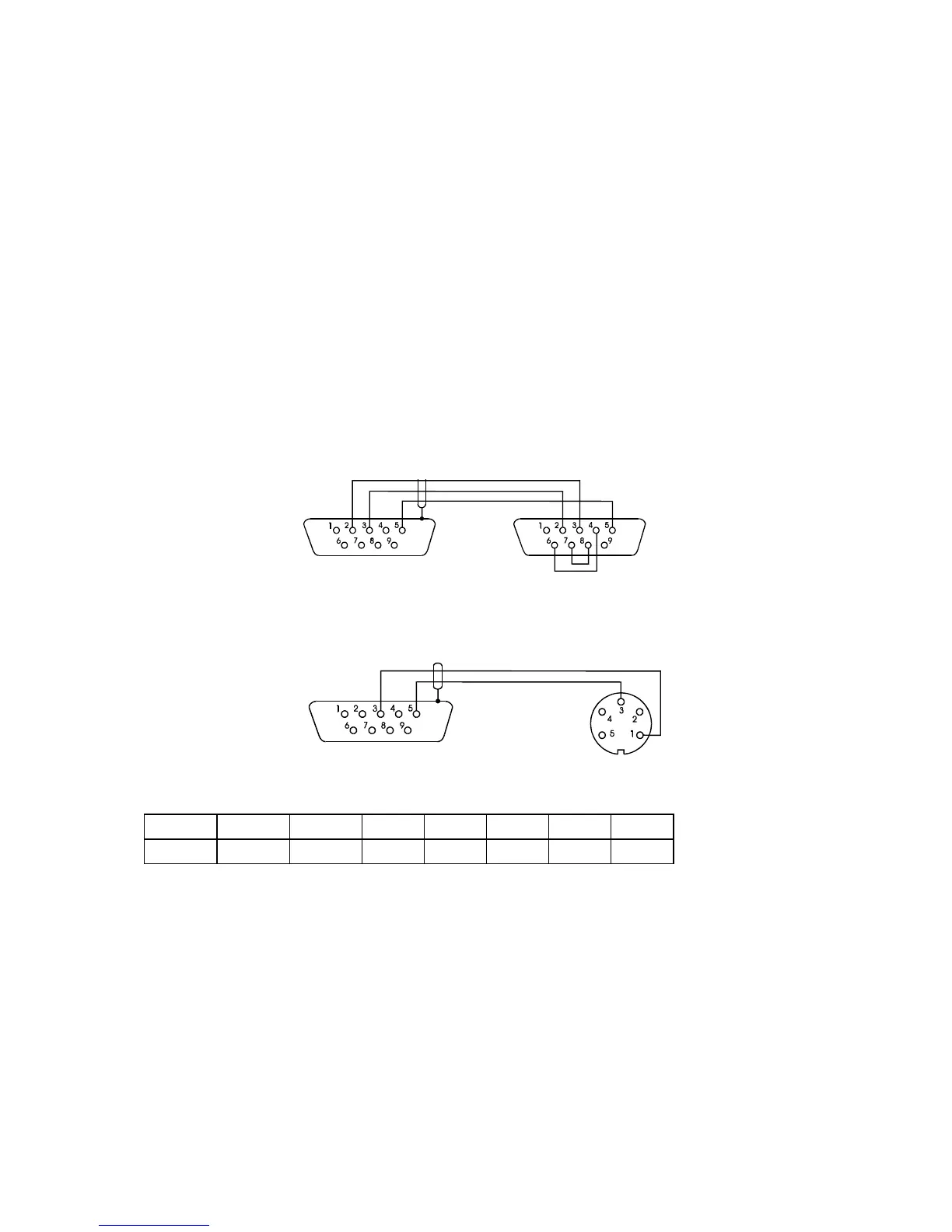

Connecting cable WK-1 (scale – computer / 9-pin interface):
Connecting cable WD-1 (scale with AXIS printer):
Setting internal AXIS printer swithces:
SW-1
SW-2
SW-3
SW-4
SW-5
SW-6
SW-7
SW-8
on
off
on
off
off
on
off
off
BALANCE COMPUTER
BALANCE PRINTER
