Azbil 700 series User Manual

A-1

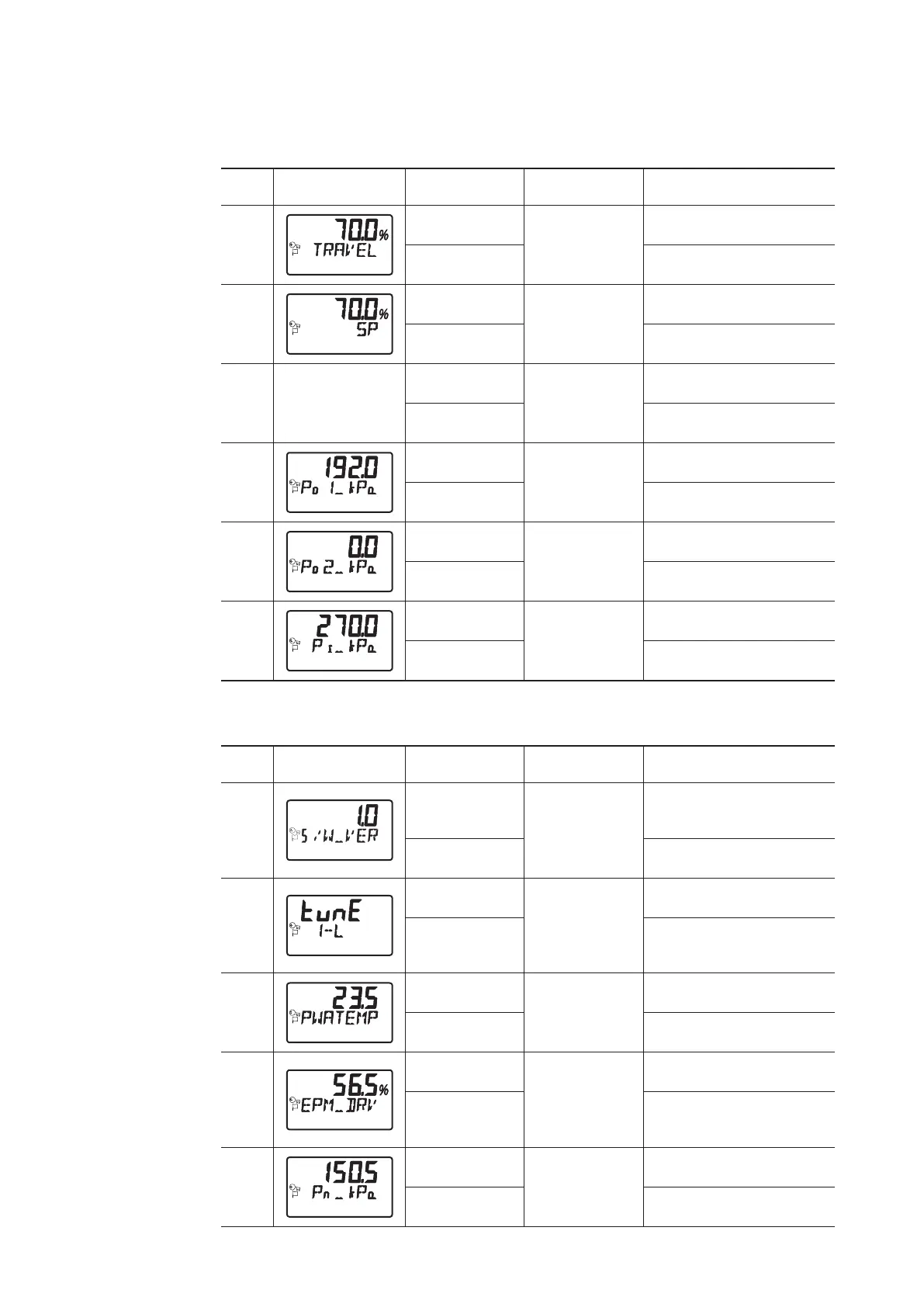

Appendix A LUI Display Example
Normal monitor
Guide
number
Display Reading Item Remarks
1-1
70.0
Opening
Displays the item value in
percentage.
TRAVEL Valve opening
1-2
70.0
Input signal
Displays the item value in
percentage.
SP SetPoint
1-3 -
-
-
-
- -
1-4
192.0
Output air
pressure OUT1
Displays the item value in
kPa.
Po1_kPa
Pressure OUT1
(kPa)
1-5
0.0
Output air
pressure OUT2
Displays the item value in
kPa.
Po2_kPa
Pressure OUT2
(kPa)
1-6
270.0
Supply air
pressure Ps
Displays the item value in
kPa.
Ps_kPa
Pressure Supply
(kPa)
Details monitor
Guide
number
Display Reading Item Remarks
2-1
1.0
Software version
Displays the item value.
(The initial setting is the same as
that on the seal affixed on the case.)
S/W_VER Software Version
2-2
TUNE
Control
parameters
Tuning Parameter
1-L
Left: Actuator Size
Right: Friction Level
(Initial setting value: 2-L)
2-3
23.5
Electronic
substrate
temperature
Displays the item value in
degrees.
PWATEMP Substrate temperature
2-4
56.5
Electropneumatic
transduction
module
Driving current
Displays the item value in
percentage.
EPM_DRV
EPM Drive Signal
(EPM: Electropneumatic
transduction module)
2-5
150.5
Electropneumatic
transduction
module
Output air pressure
Displays the item value in
kPa.
Pn_kPa
Pressure Nozzle back in EPM
(kPa)
