SYSTEM INSTALLATION
DEALER MANUAL MAX DRIVE SYSTEM
2 SYSTEM INSTALLATION

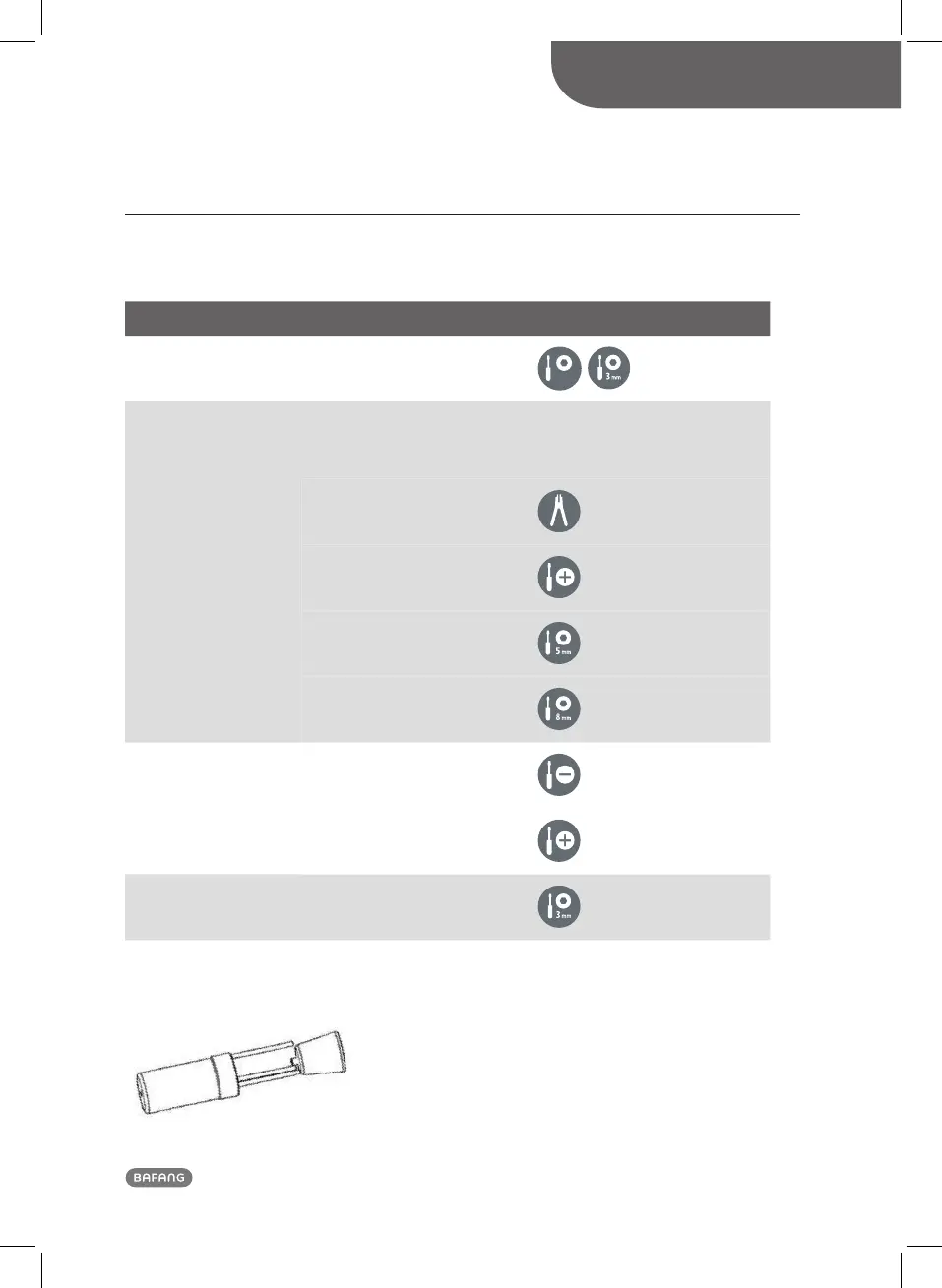

2.1 List of Tools to be used
Components Use of the Tools Tools
Display To tighten M3 & M4 screws
2,5mm
Internal hex wrench
Drive Unit
To fix the chain
wheel retaining
ring
Special tool
To remove the chain wheel retaining
ring
Plier for the
retaining ring
To tighten M4 screws on the chain
guard
Cross screwdriver
To fasten M6 bolts and nuts onto the
frame adapter and the drive unit
Internal hexagonal
wrench
To fasten M8 screws on the crank
mounting
Internal hexagonal
wrench
Speed Sensor
To install the iron magnet
Straight slot
screwdriver
To tighten M5 screws of the speed
sensor
Phillips screwdriver
Battery
To fasten the battery plate onto the
carrier using M5 screws
Internal hex wrench
The tool used to install the retaining ring onto the hub
Tool code (GZ-MM G31-5025)
