SYSTEM CABLING
DEALER MANUAL MAX DRIVE SYSTEM

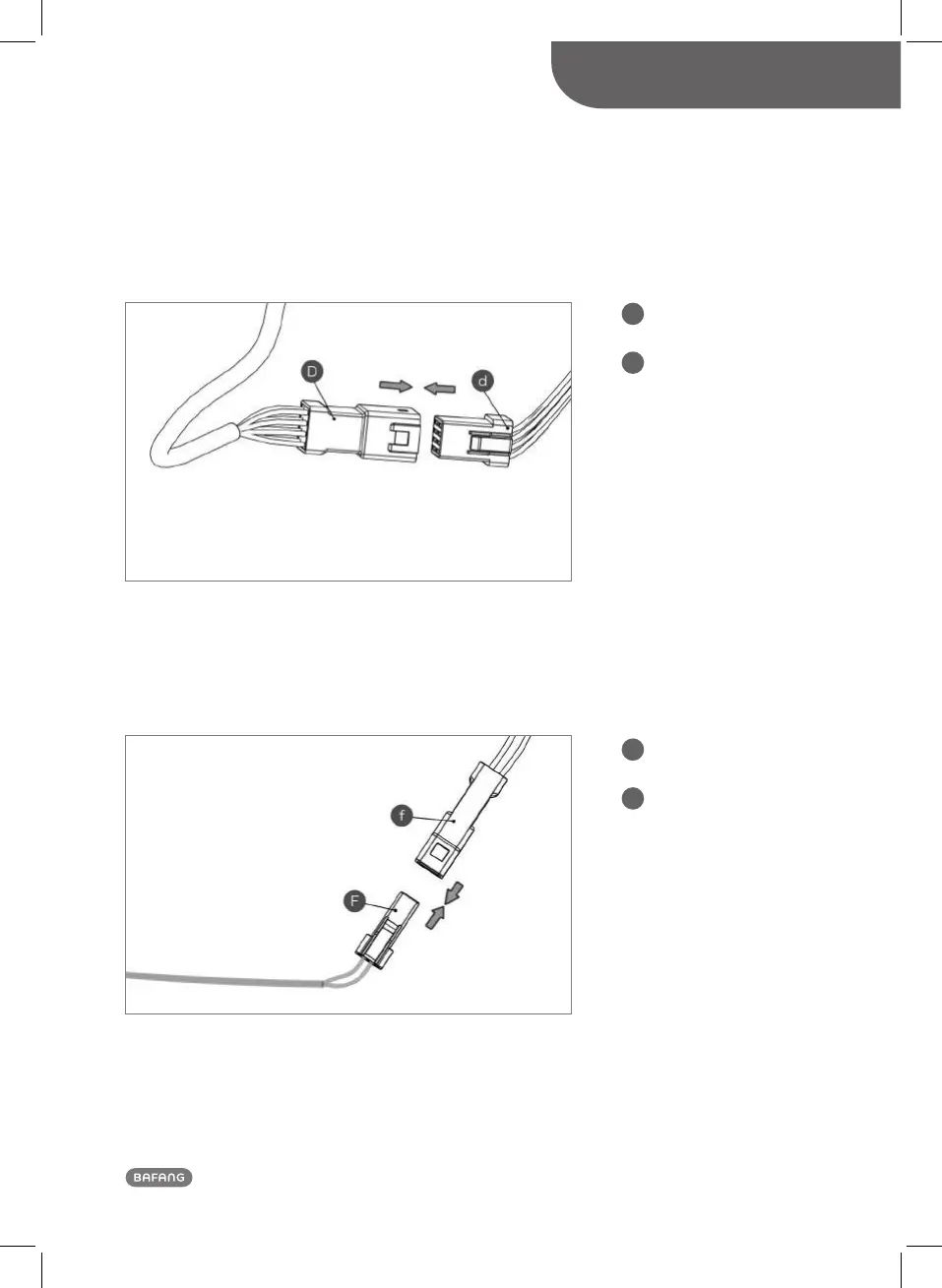

3.3 Connection of the EB-BUS to the Drive Unit
D
male connector at the
EB-BUS 2105020000099
d
female connector at the
drive unit for connection
to the EB-BUS
Link the EB-BUS cable to the EB-BUS connector at the drive unit.
3.4 Connection of the Headlight Cable to the Drive Unit
F
female connector at the
headlight cable
f
male connector for the
headlight at the drive
unit
Link the headlight cable to the connector for the headlight at the drive unit.
