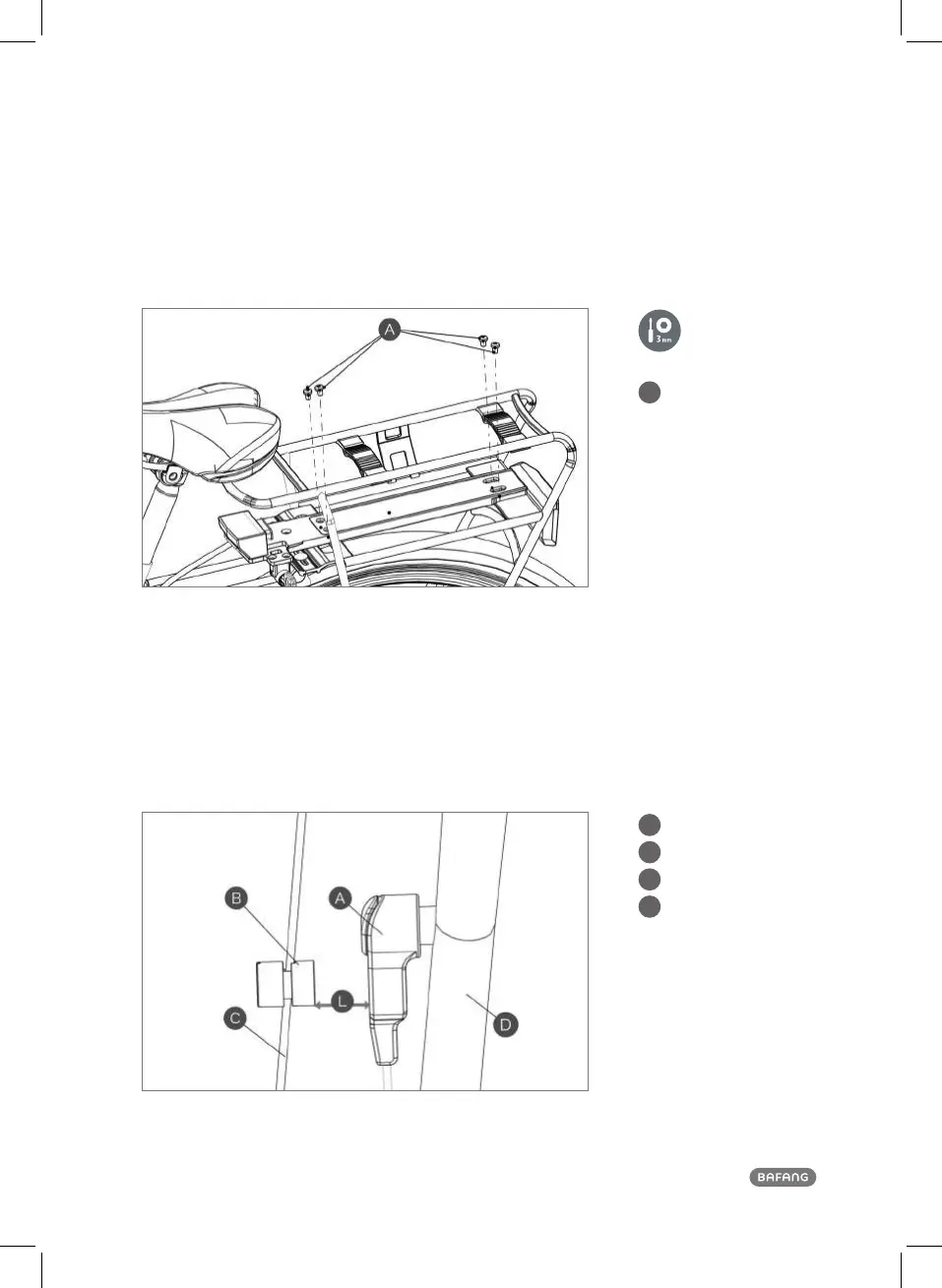

2.5 Battery Rail Installation
A
hex socket head cap
screw (M5)
Align the mounting holes of the carrier with the mounting holes of the battery rail. Fasten the battery rail onto the
battery carrier with hex socket head screws (M5).
Tightening torque: 2 Nm
2.6 External Speed Sensor Installation SR SD02.01
A
external speed sensor
B
magnet unit
C
spoke
D
chain stay
Before installing the speed sensor, please make sure the gap between the speed sensor and the magnetic unit is
between 5 and 25 mm.
