SYSTEM INSTALLATION
DEALER MANUAL MAX DRIVE SYSTEM
2,5mm
B
hex socket head cap
screw M3×8

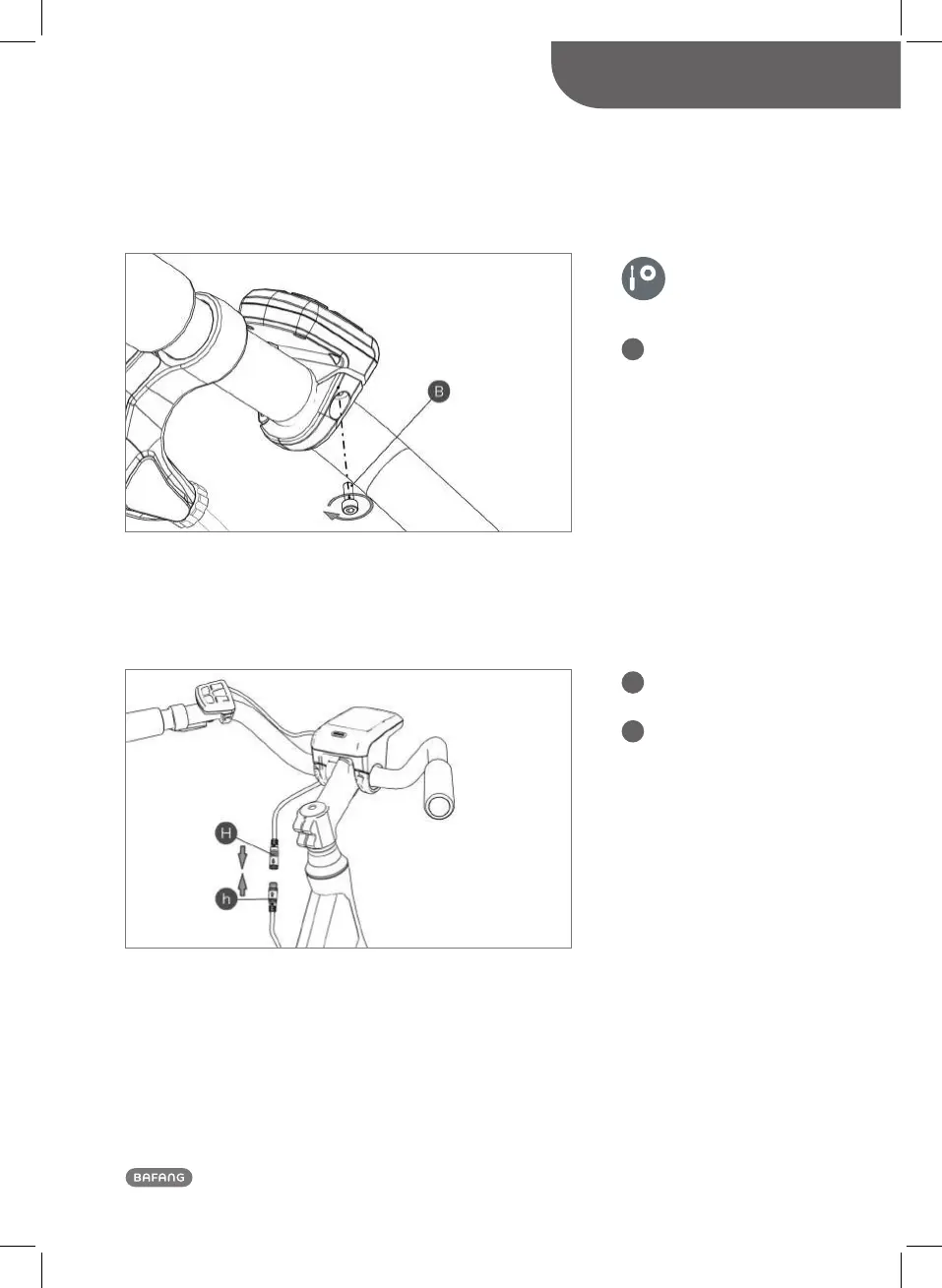

Fix the keypad onto the handlebar with a screw. Then tighten the fixing screw with an internal hex wrench.
Tightening torque: 1 Nm
H
female connector at the
display
h
male connector at the
EB-BUS
Match the female connector at the display with the male connector at the EB-BUS as shown in the picture above.
