BAFANG MAX Drive System User Manual

25
DEALER MANUAL MAX DRIVE SYSTEM
3 SYSTEM CABLING

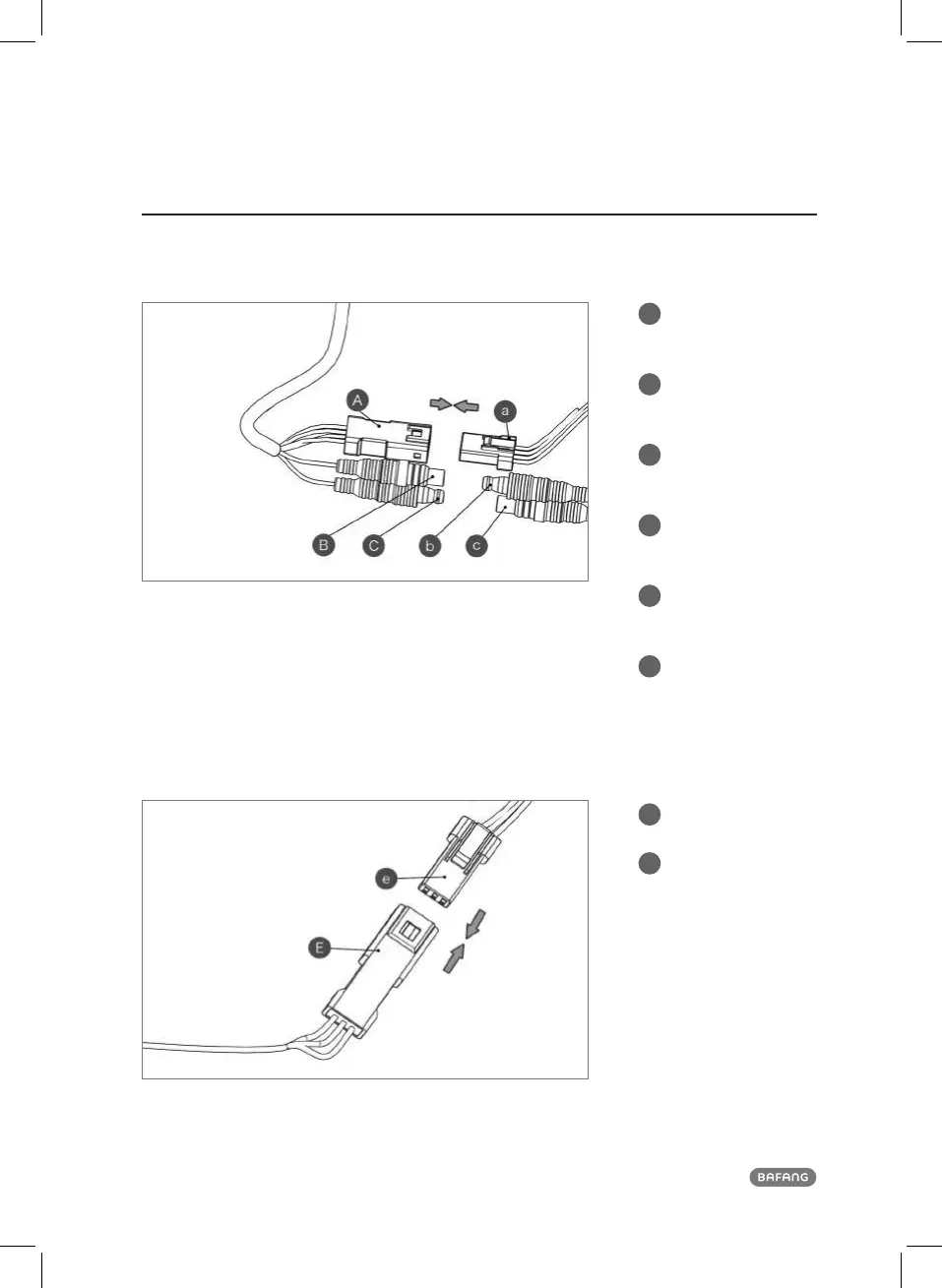

3.1 Connection of the Battery Cable to the Drive Unit
A
female connector for the
communication cables at
the battery
a
male connector for the
communication cables at
the drive unit
B
female connector for
the positive cable at the
battery
b
male connector for the
negative cable at the
drive unit
C
male connector for the
negative cable at the
battery
c
female connector for the
negative cable at the
drive unit
The power bus, which is made up of a positive battery cable, a negative battery
cable and battery communication cables, is connected to the battery cables at the
drive unit.
3.2 Connection of the Speed Sensor to the Drive Unit
E
male connector at the
speed sensor
e
female connector at the
drive unit for connection
to the speed sensor
Link the male connector at the external speed-detecting sensor to the female connector for the external speed-
detecting sensor cable at the drive unit.
