BAFANG MAX Drive System User Manual

37
DEALER MANUAL MAX DRIVE SYSTEM

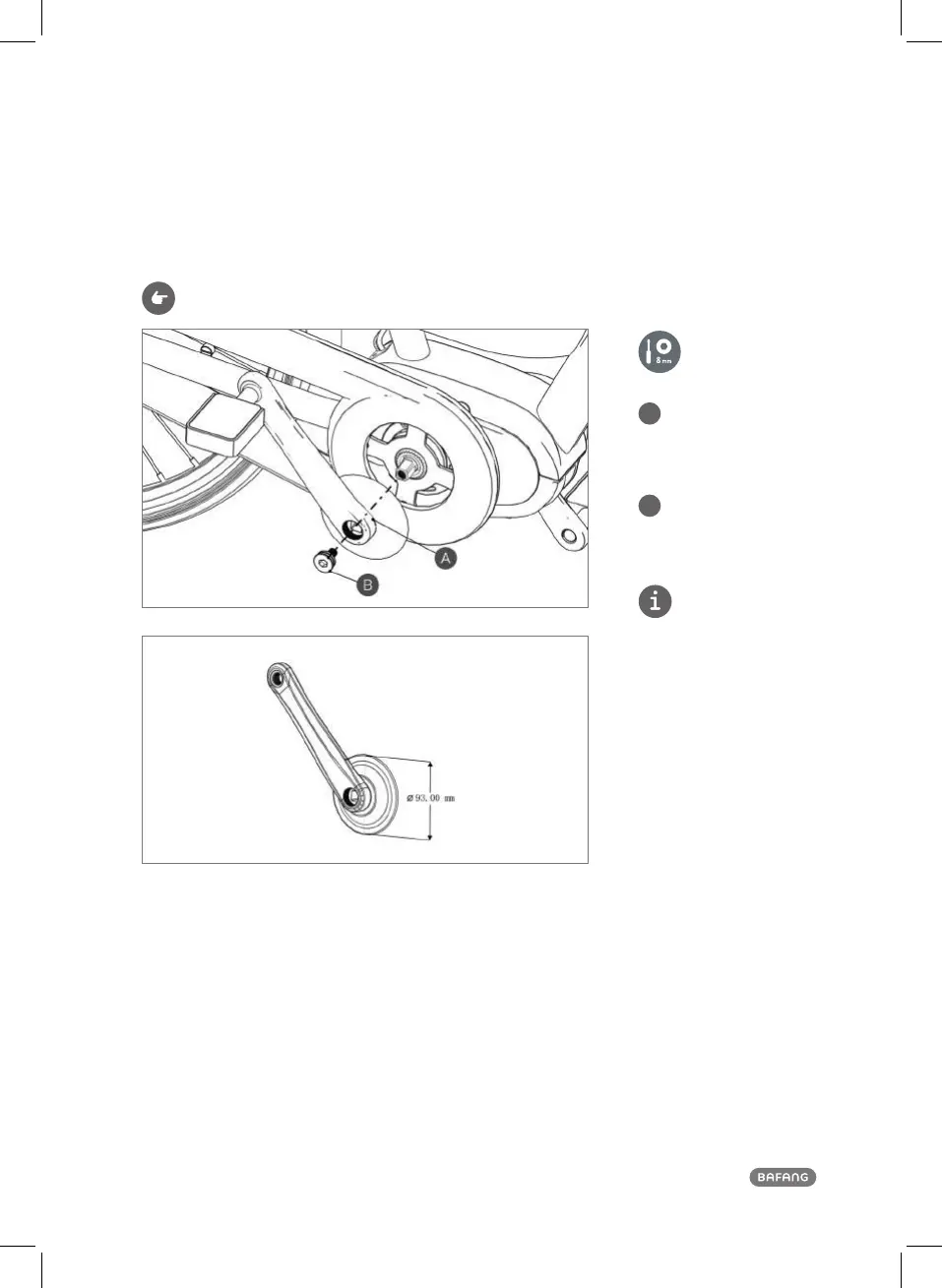

4.3 Crank Installation
Installation of the crank with a chain guard
A
right straight crank with
a cap 1327040000001
left straight crank
1327020000001
B
screws M8 for mounting
the crank
1401020000109
Different right cranks are
used depending on the
chain guard.
Fasten the right crank onto the bottom bracket on the right with a screw M8. Install the left crank in the same way.
Torque: 35 – 40 Nm
