CHAIN GUARD INSTALLATION
DEALER MANUAL MAX DRIVE SYSTEM

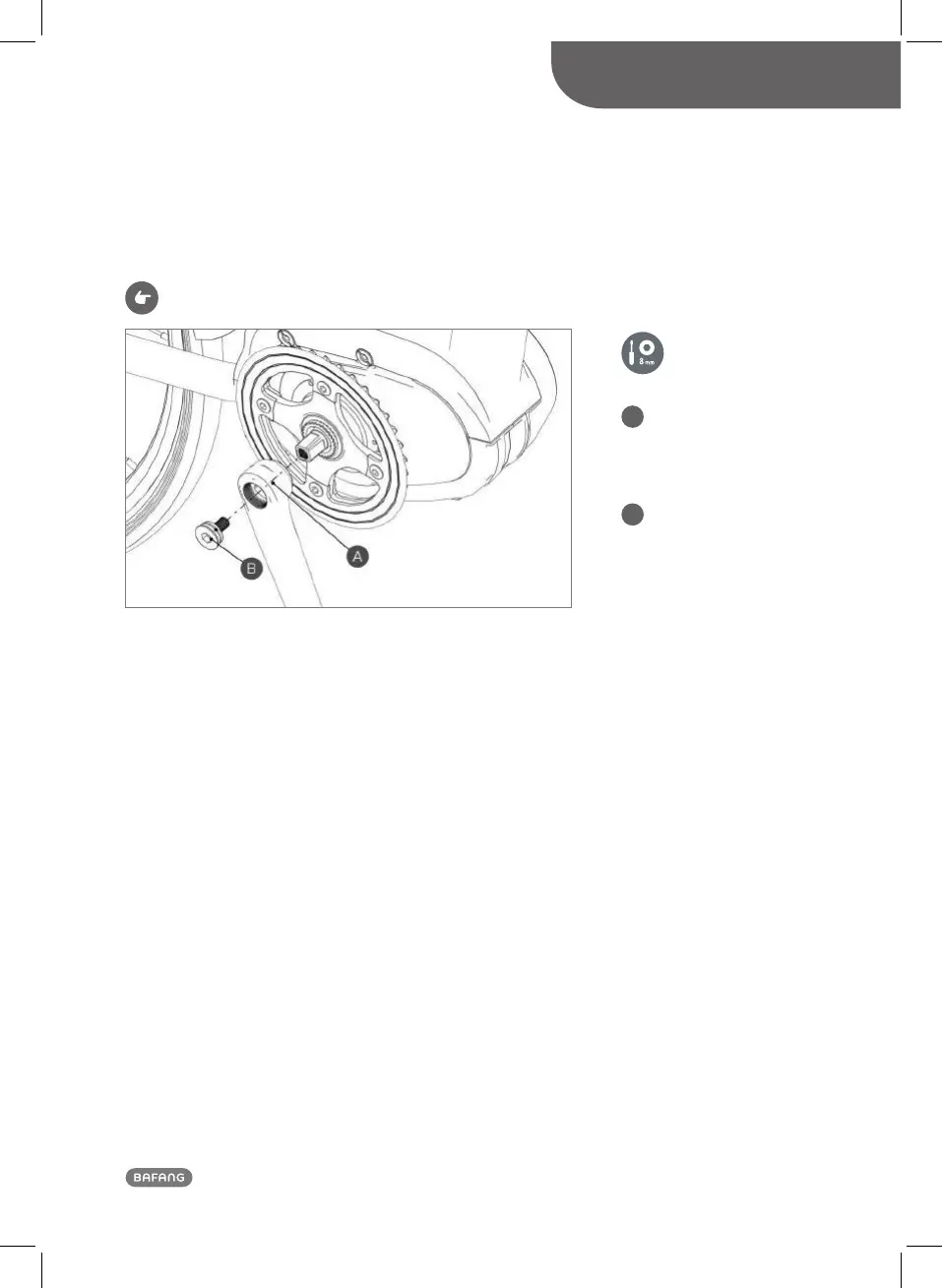

Installation of the crank without a chain guard
A
right straight crank
1327010000001
left straight crank
1327020000001
B
screws M8 for mounting
the crank
1401020000109
Fasten the right crank onto the bottom bracket on the right with a screw M8.
Install the left crank in the same way.
Torque: 35 – 40 Nm
