DEALER MANUAL MAX DRIVE SYSTEM

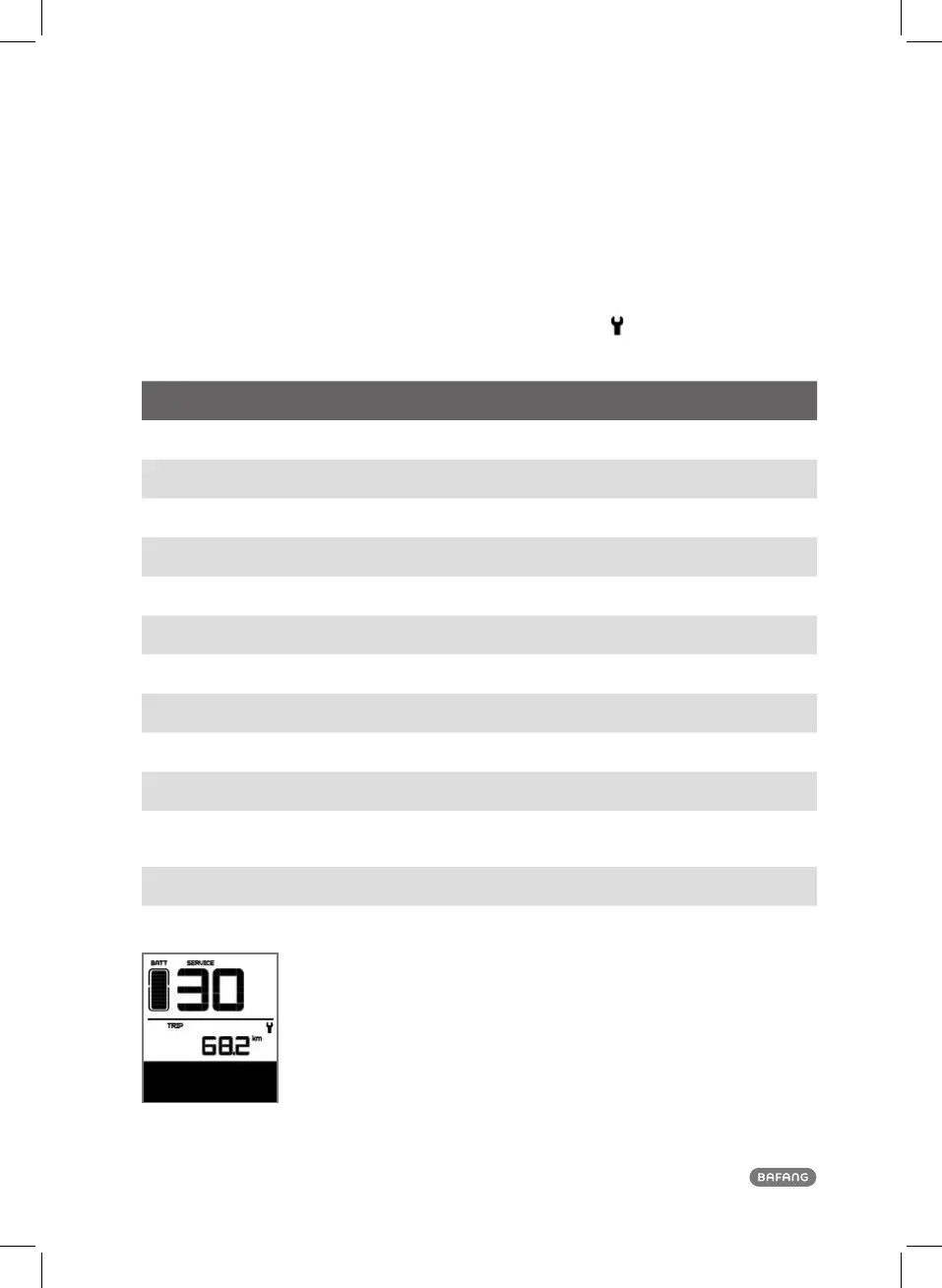

6.6 Error Code Definitions
The MAX-C966 display can show e-bike faults. When a fault is detected, the icon will be displayed. In the speed
field one of the following error codes will be displayed:
Error Code Error Description Error-shooting Method
“03” Brake enabled Check whether a brake cable is stuck
“04” The throttle has not returned home Check if throttle has returned home
“05” Throttle fault Check the throttle
“06” Low voltage protection Check the battery voltage
“07” Overvoltage protection Check the battery voltage
“08” Motor hall signal cable fault Check the motor module
“09” Motor phase cable fault Check the motor module
“11” Controller temperature sensor failure Check the controller
“12” Current sensor failure Check the controller
“13” Battery temperature fault Check the battery
“21” Speed sensor fault Check installation position of speed sensor
“22” BMS communication fault Replace the battery
“30” Communication fault Check the controller connection
Error display
