CHAIN GUARD INSTALLATION
DEALER MANUAL MAX DRIVE SYSTEM
4 CHAIN GUARD INSTALLATION

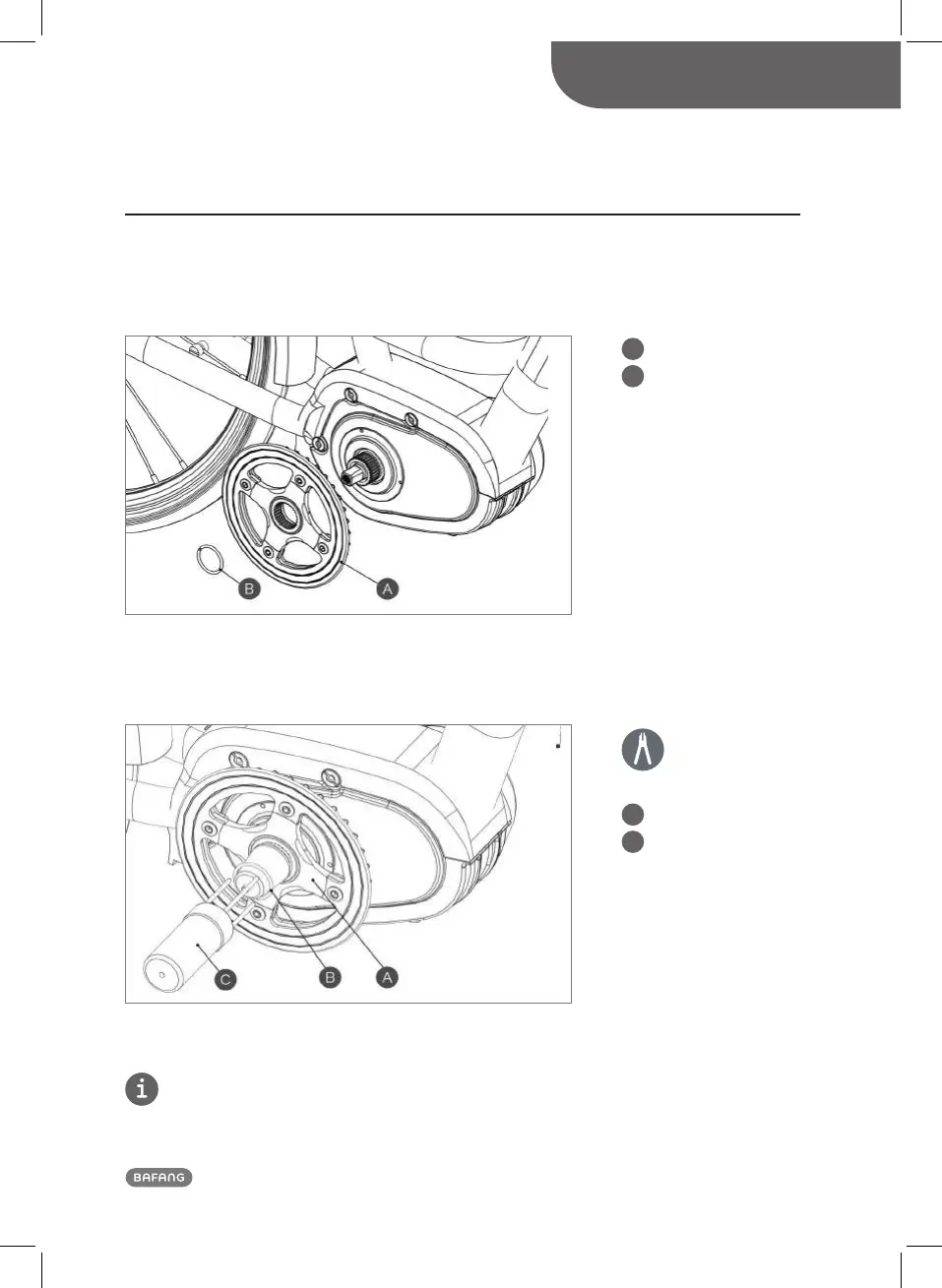

4.1 Installation of the Front Chainwheel
(without a chain guard)
A
chain wheel
B
retaining ring
1401010000026
Put the front chain wheel onto the spline shaft of the drive unit.
B
retaining ring
C
a special tool used to
install the retaining ring
onto the hub
Tool code:
GZ-MM G31-5025
Use a special tool to fix the retaining ring onto the spline shaft.
A used retaining ring must be replaced.
