BAFANG MAX Drive System User Manual

18
SYSTEM INSTALLATION
DEALER MANUAL MAX DRIVE SYSTEM

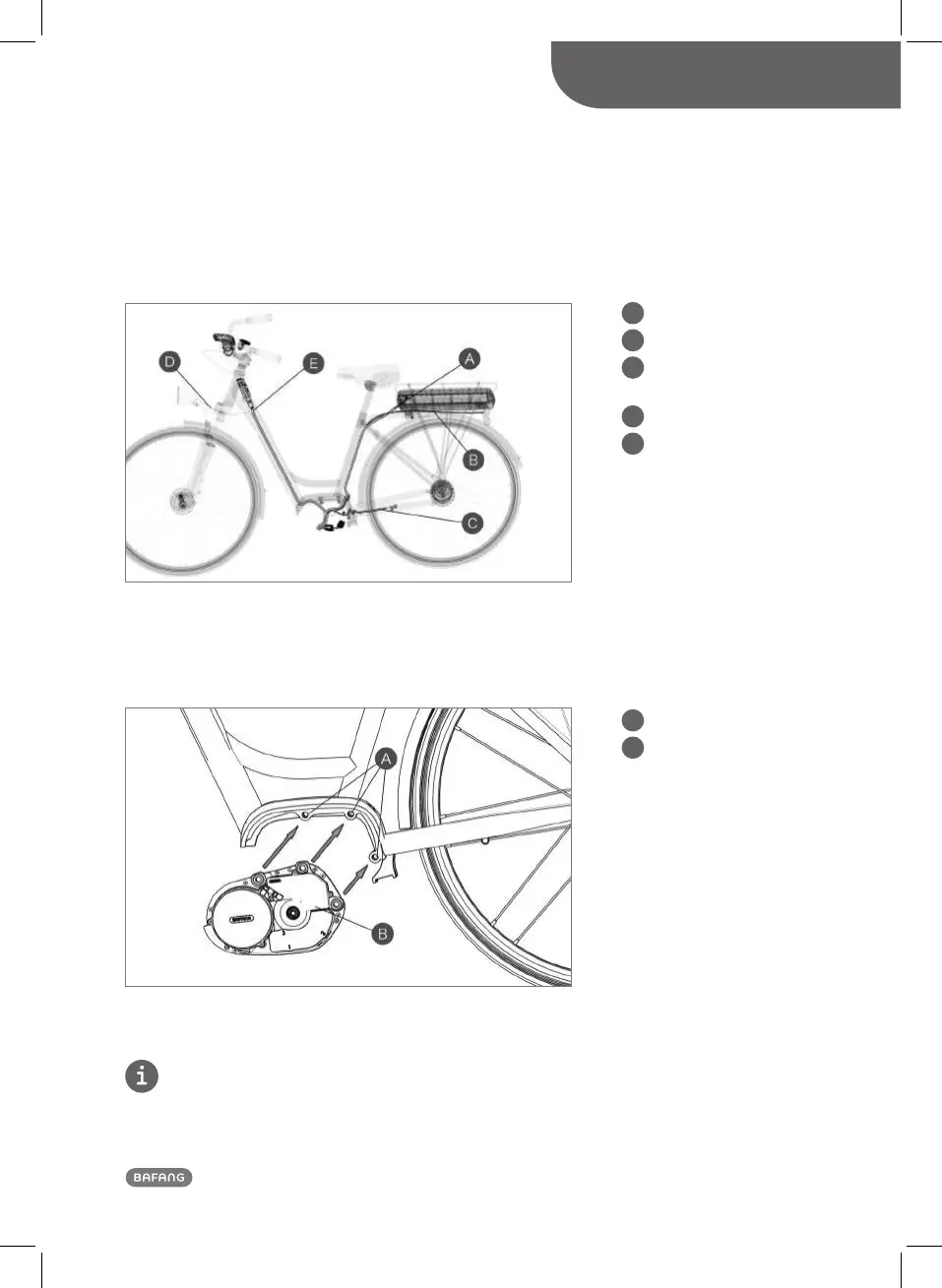

2.7 Drive Unit Installation
A
battery cable
B
taillight cable
C
external speed sensor
cable
D
headlight cable
E
EB-BUS
Cables should be arranged in advance according to the e-bike type and the cabling system before installing the drive
unit.
A
mounting holes
B
drive unit
MM G33.350
Align the three mounting holes of the drive unit with the mounting holes in the bike frame.
Pay attention to the outgoing directions of the cables. Please note that the cables should not be squeezed by the drive unit.
