BAFANG MAX Drive System User Manual

17
DEALER MANUAL MAX DRIVE SYSTEM
A
external speed sensor
B
magnet unit
PS01010702/
2308040000001
C
spoke

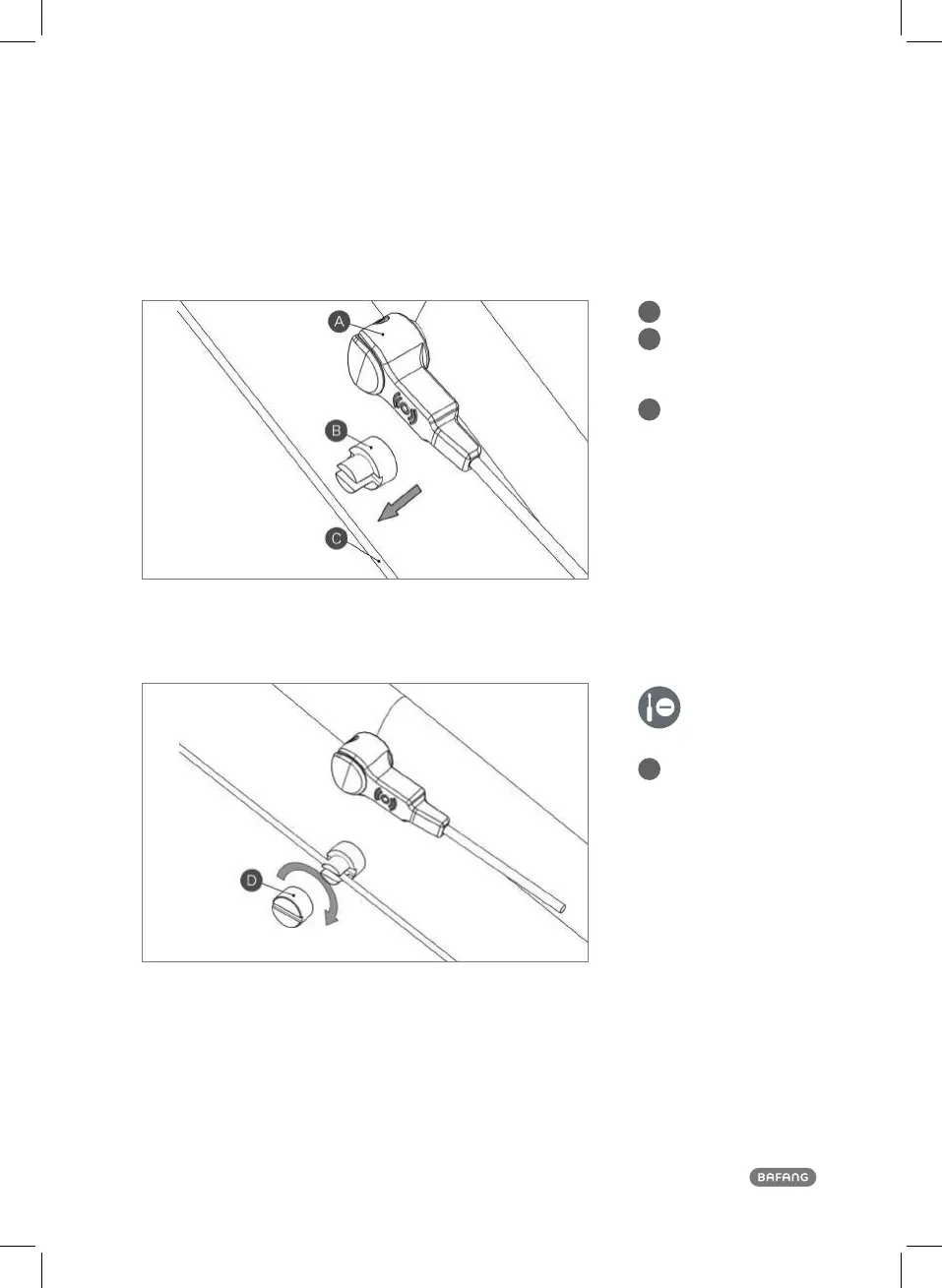

Arrange the speed sensor and the magnet unit as shown by the picture above. Mount the magnet unit onto the spoke.
D
Mounting nut of the
magnet
PS01010701/
2327000000003
Tighten up the mounting nut with a straight slot screwdriver. Tightening torque: 1.5 – 2 Nm

BAFANG MAX Drive System Specifications

General

Brand	BAFANG
Model	MAX Drive System
Category	Engine
Language	English
