Downlink Modulation and Coding Scheme - an indication of channel conditions
determining throughput in the downlink
Uplink Modulation and Coding Scheme - an indication of channel conditions
determining throughput in the uplink
The Signal-to-Interference-plus-Noise Ratio reflects the signal strength of the signal
received from the two antennas in the eNB, expressed in decibels (dB)
NOTE: Additional SINR values are reported when a transmitting device is using more
than two antennas.
The Reference Symbol Received Power is an indication of the average power of the LTE
reference signals over the entire bandwidth. RSRP is reported for each transmit
antenna. These signals must be at a high enough level for the CPE to attach to an eNB.
The current downlink data throughput rate, in Kbps
The current uplink data throughput rate, in Kbps
The average DL and UL data throughput rates, in Kbps, for this CPE in the last 3 minutes
The peak DL and UL data throughput rates, in Kbps, for this CPE in the last 3 minutes
The total (sum) DL and UL data throughput rates, in Kbps
Access Point Name (gateway) connection to other network devices. At least one APN
must be configured to establish the TR-069 connection to the CloudCore or other NMS
Indicates if the APN is enabled or disabled
MAC address of the APN gateway
Type of network connection
IPv4, IPv6, or IPv4v6 address of the APN gateway
Domain Name Server IP address
MAC address of the LAN device, e.g., router, to which the CPE is connected
The IP address of the LAN device
The subnet mask of the LAN device
Numerical ID assigned to each smart device connected through the ODU CPE
The name of each smart device connected through the CPE
The MAC address of each smart device connected through the CPE
The IP address of each device connected through the CPE
Amount of time a smart device’s IP address has been leased
Type of smart device connection

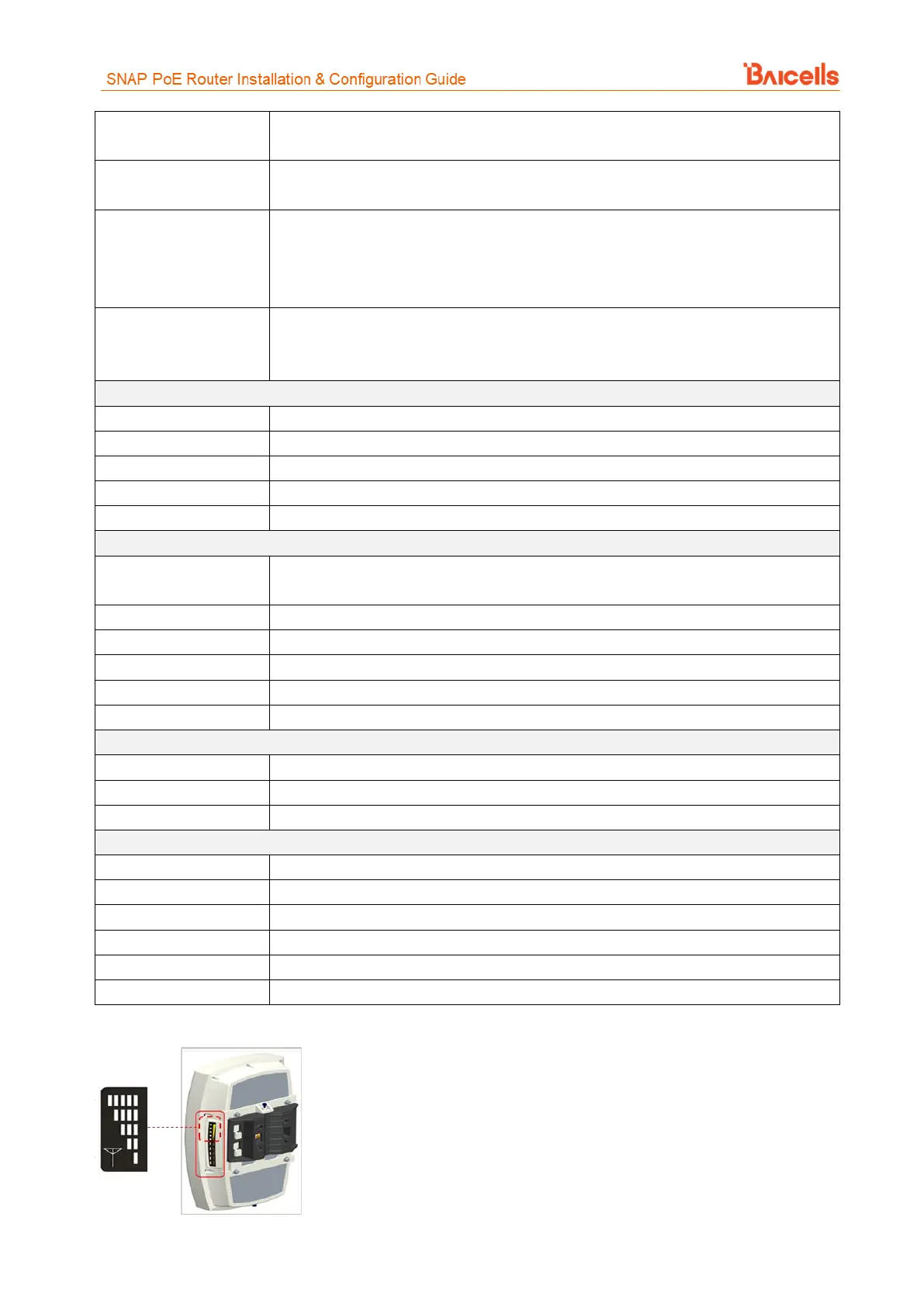

Figure 7: ODU CPE Signal Intensity (Strength) - Atom OD04L Example
