9 © Banner Engineering Corp. www.bannerengineering.com
SENSOR PROGRAMMING
3.2.1. TEACH Procedures (Analog)
Use the following procedures to teach the Ch1 analog output.
To cancel a TEACH procedure, press TEACH for longer than 2 seconds, or hold the remote input low for longer than 2 seconds. CnCL momen-
tarily displays when a TEACH procedure is canceled.
3.2.1.1. Two-Point (2-Pt) TEACH (Channel 1 Only)
Two-point TEACH sets the distance values associated with 0 V and 10 V (4 mA and 20 mA) based on taught target distances.

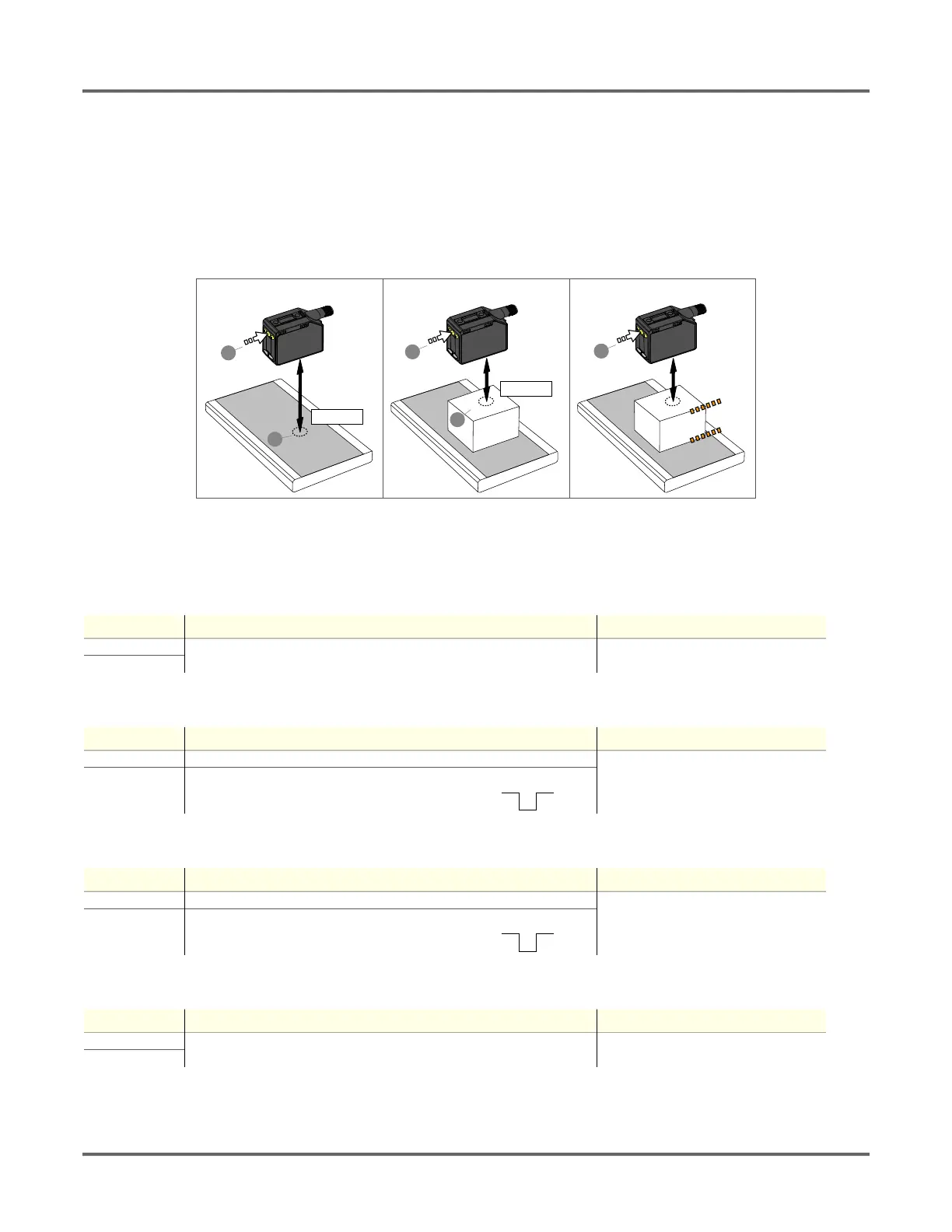

Figure 3: Two-Point TEACH
The sensor must be set to tch = 2-Pt to use the following instructions. To program the sensor using remote input, remote input must be enabled
(inPt = SEt).
1) Present the target at the desired 0 V (4 mA) distance.
2) Start the TEACH mode.
3) Teach the sensor at the 0 V (4 mA) distance.
4) Present the target at the desired 10 V (20 mA) distance.
5) Teach the sensor at the 10 V (20 mA) distance.
Method Action Result
Push Button
Present the first target. The sensor-to-target distance must be within the sensor's
range.
The target's measurement value displays.
Remote Input
Method Action Result
Push Button Press and hold TEACH for longer than 2 seconds.
SEt and O U flash alternately on the display.
The 2-Pt indicator flashes.
Remote Input Single-pulse the remote input.
Method Action Result
Push Button Press TEACH to teach the target.
The measurement value flashes briefly, and
the sensor is taught the first target. SEt and 10
U flash alternately on the display. The 2-Pt
indicator flashes.
Remote Input Single-pulse the remote input.
Method Action Result
Push Button
Present the second target. The sensor-to-target distance must be within the sensor's
range.
SEt and 10 U flash alternately on the display.
The 2-Pt indicator flashes.
Remote Input
10 V
0 V
2
Press and Hold
> 2s
Press again
4
Teach 0 V
Teach 10 V
1
Press again
3
5
To Next Page
