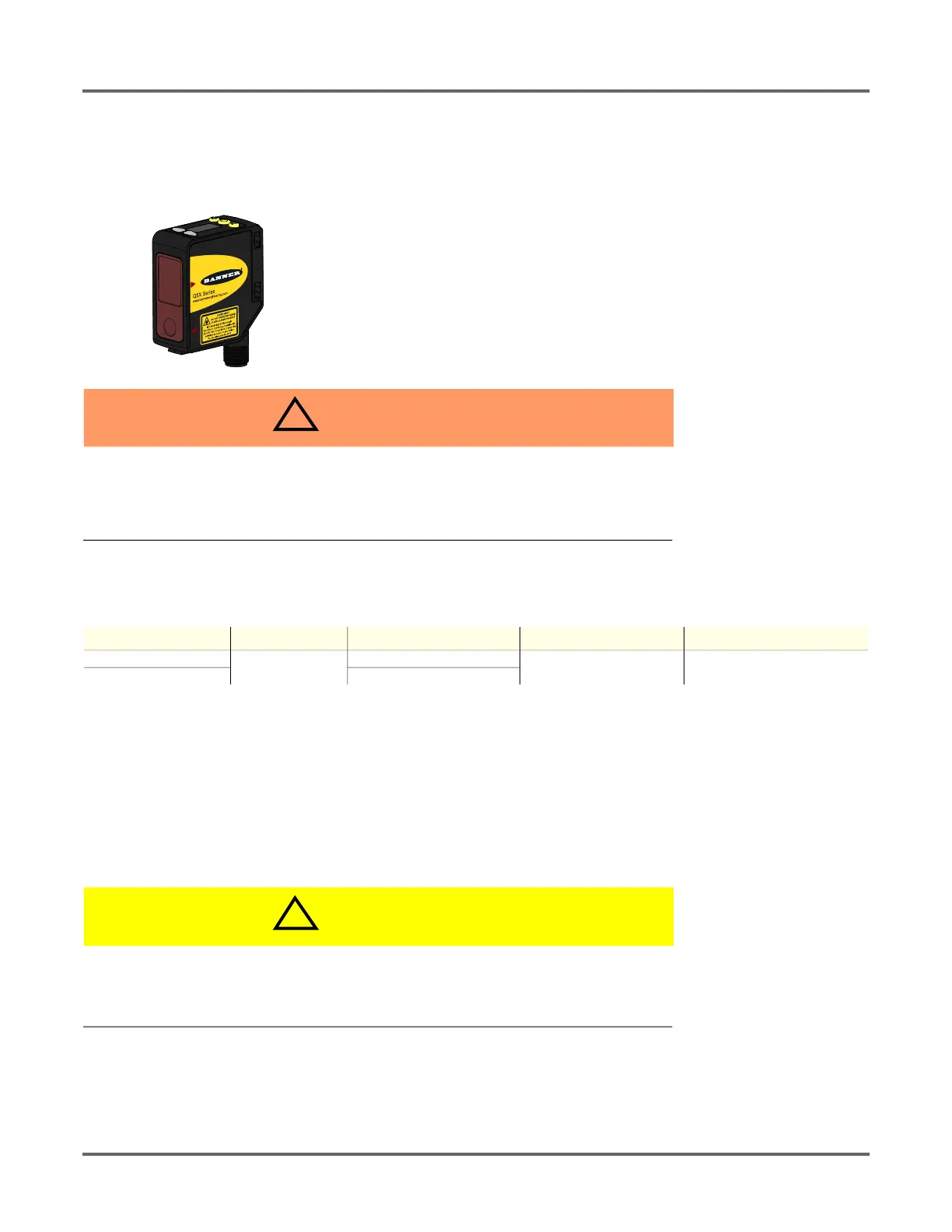

Page #4 background imageLoading...
Page #4 background image
1 © Banner Engineering Corp. www.bannerengineering.com
PRODUCT DESCRIPTION
1. Product Description
Laser sensor with an analog output and IO-Link
WARNING
!
DO NOT USE THIS DEVICE FOR PERSONNEL PROTECTION
Using this device for personnel protection could result in serious injury or death.
This device does not include the self-checking redundant circuitry necessary to allow its use in personnel
safety applications. A device failure or malfunction can cause either an energized (on) or de-energized (off)
output condition.
1.1. Models
1.2. Overview
The Q5X Laser Triangulation Sensor offers analog and discrete (switched) outputs with IO-Link.
The normal sensor state is Run mode. From Run mode, users may change the switch point value and channel selection and perform the selected
TEACH method.
The secondary sensor state is Setup mode. From Setup mode, users may select the TEACH mode, adjust all standard operating parameters,
and perform a factory reset.
1.3. Class 2 Laser Description and Safety Information
CAUTION
!
RETURN DEFECTIVE UNITS TO THE MANUFACTURER.
Use of controls or adjustments or performance of procedures other than those specified herein may result in haz-
ardous radiation exposure.
Do not attempt to disassemble this sensor for repair. A defective unit must be returned to the manufacturer.
Laser measurement sensor with a range up to 3000 mm
Bright output indicators and real-time distance feedback provide easy set up and trouble-
shooting for reduced installation costs
Exceptionally high excess gain enables the sensor to reliably detect the darkest objects
(< 6% reflective black targets), including black targets against a black background, black
targets against a shiny metal background, clear and reflective objects, multicolor pack-
aging, and targets of all colors
Dual independent output channels and communication over IO-Link
Optional Remote Sensor Display (RSD) (available separately) enables remote program-
ming and monitoring
Model Sensing Range Channel 1 Default Channel 2 Default Connection
Q5XKULAF3000-Q8
95 mm to 3000 mm
Analog voltage output (0-10V)
Push/pull discrete output or
IO-Link
270° rotatable integral 5-pin M12
male quick disconnect fitting
Q5XKILAF3000-Q8 Analog current output (4-20mA)
