Banner Q5X Series User Manual

3 © Banner Engineering Corp. www.bannerengineering.com
PRODUCT DESCRIPTION
For 1-PT, 2-PT, BGS, FGS, and DYN TEACH modes, the display shows the current distance to the target in centimeters. For Dual TEACH mode,
the display shows the percentage matched to the taught reference surface. A display value of 999P indicates the sensor has not been taught.
1.4.2. Buttons
Use the sensor buttons (SELECT)(TEACH), (+)(CH1/CH2), and (-)(MODE) to program the sensor.

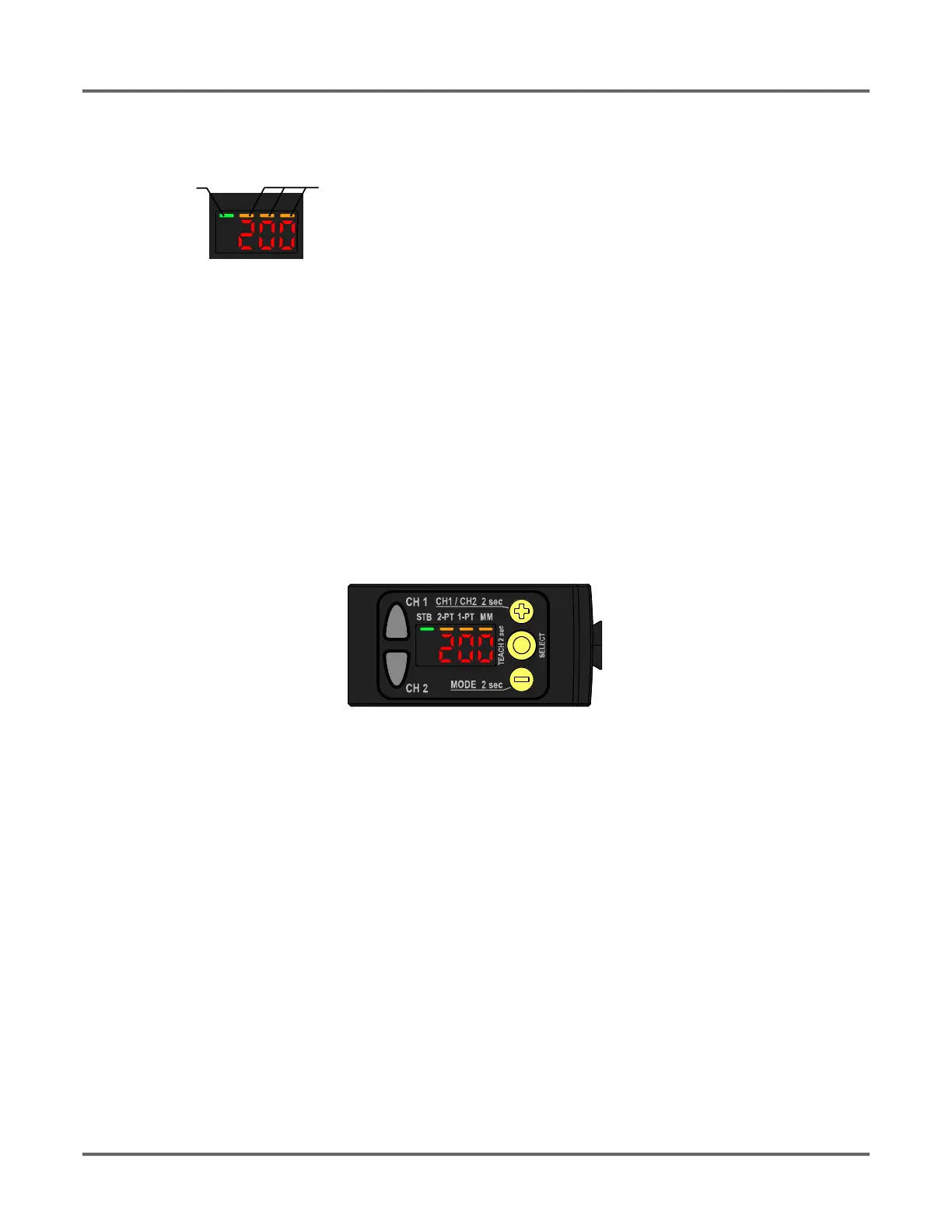

Figure 4: Q5X sensor face
Figure 3: Display in Run Mode
1) Stability Indicator (STB—Green)
2) Active TEACH Indicators
◦ 2-PT - Two-Point TEACH (Amber)
◦ 1-PT - One-Point TEACH (Amber)
3) Display value indicator (MM - Amber)
Output Indicators
• Ch1: On when the displayed distance is within the taught
analog output window
• Ch2: On when the displayed distance is within the taught
discrete output window
Stability Indicator (STB)
• On—Stable signal within the specified sensing range
• Flashing—Marginal signal, the target is outside the limits of
the specified sensing range, or a multiple peak condition
exists
• Off—No target detected within the specified sensing range
Active TEACH Indicators (2PT and 1PT)
• 2-PT on—Two-point TECH mode selected (default)
• 1-PT on—One-point TEACH mode selected
Display Value Indicator (MM)
• On—Display shows the distance in millimeters (default)
• Off—Display shows the analog output value
• Toggle off the MM light by pressing SELECT when the
sensor is in run mode. This changes the display to show the
analog output value. Press SELECT again to show the
distance value.
(SELECT)(TEACH)
• Press to select menu items in Setup mode
• Press and hold for longer than 2 seconds to start the
currently selected TEACH mode (the default is two-point
TEACH)
(+)(CH1/CH2)
• Press to navigate the sensor menu in Setup mode
• Press to change setting values; press and hold to increase
numeric values
• Press and hold for longer than 2 seconds to switch between
Channel 1 and Channel 2
(-)(MODE)
• Press to navigate the sensor menu in Setup mode
• Press to change setting values; press and hold to decrease
numeric values
• Press and hold for longer than 2 seconds to enter Setup
mode
NOTE: When navigating the menu, the menu items loop.
STB 2-PT 1-PT MM
1
2
