Banner Q5X Series User Manual

© Banner Engineering Corp. www.bannerengineering.com 18
SENSOR PROGRAMMING
3.2.6. Slope (SLPE)
Use this menu to set the slope as positive or negative.
This swaps the 0 V and 10 V (4 and 20 mA) values. The default is positive. The slope is defined relative to the zero reference, so if the zero
setting is changed from near to far, a slope will be considered positive if the analog output increases as the target becomes closer to the face of
the sensor.
• POS—the slope is positive
• nEG—the slope is negative
Table 8:Trigger submenus
Trigger Submenus Description
Average AUEr The averaged distance since the last trigger event. (default)
Range rnGE
The difference between the maximum and minimum distance since the last trigger event. For additional information
on the Range measurement behavior when the maximum or minimum distance is outside of the taught values, see
Loss of Signal (LOS) on page 17.
Maximum Hi The maximum distance since the last trigger event.
Minimum Lo The minimum distance since the last trigger event.
TrackMax t Hi
The maximum distance since the last trigger event. The Analog Output tracks new maximum values during the
measurement period.
TrackMin t Lo
The minimum distance since the last trigger event. The Analog Output tracks new minimum values during the
measurement period.
Sample SAnP
The current distance at the time of the trigger event. The Analog Output tracks the sample values during the
measuring period.

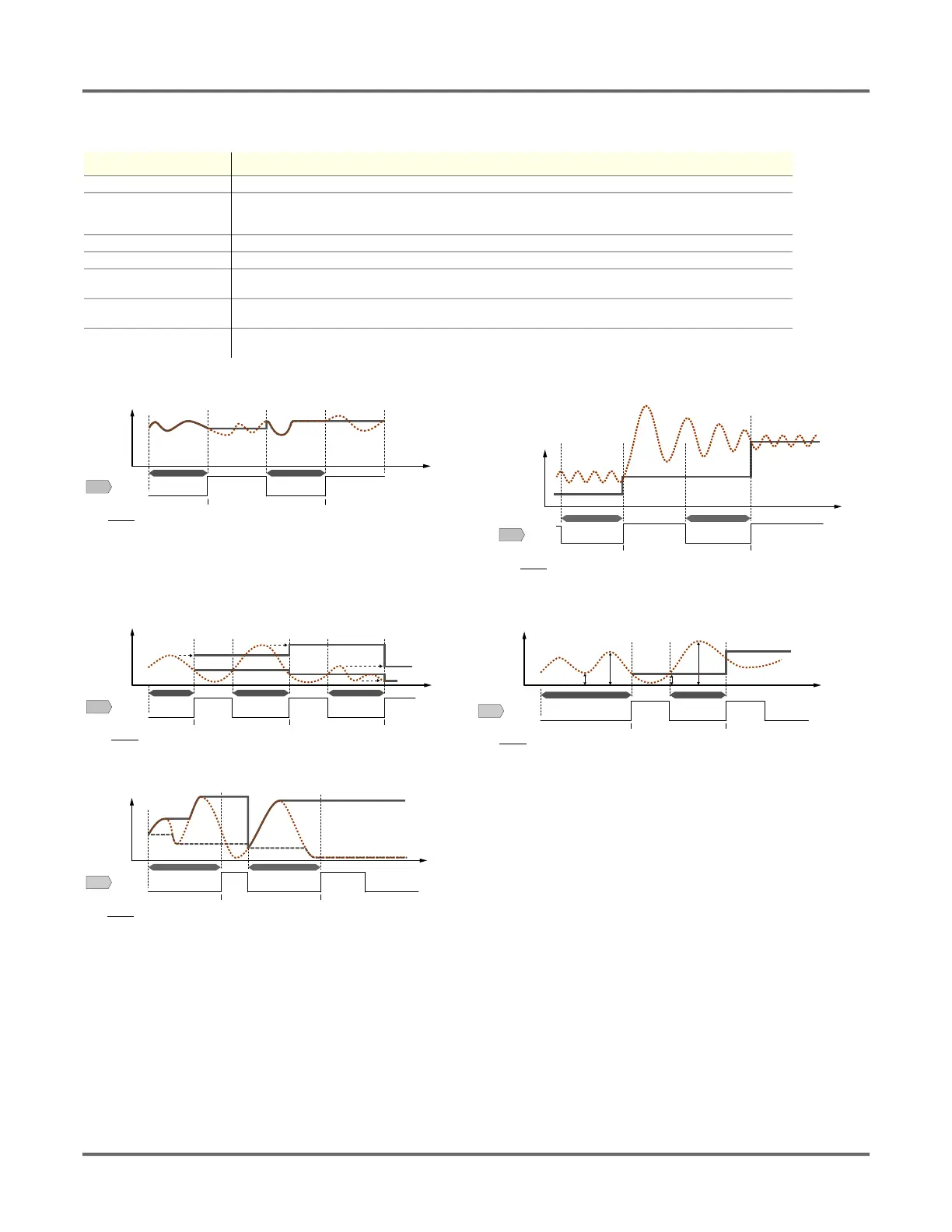

Figure 10: Sample
Figure 11: Average
Figure 12: Maximum and Minimum Figure 13: Range
Figure 14: Track Maximum and Track Minimum
Active
Sample
Inactive
(t)
Input
Signal
Hold
Measurement
Hold
Measurement
Measuring Period
Measuring Period
REMOTE
INPUT
(Active Low shown)
Average
(t)
Input
Signal
Measuring Period Measuring Period
Hold
Measurement
Hold
Measurement
Active
Inactive
REMOTE
INPUT
(Active Low shown)
Active
Hold
Measurement
Hold
Measurement
Inactive
Maximum
Minimum
Measuring Period
(t)
Input
Signal
Hold
Measurement
REMOTE
INPUT
Measuring Period
(Active Low shown)
Measuring Period
Active
Inactive
Range
Measuring Period
(t)
Input
Signal
Min
Max
Min'
(Max'-Min')
(Max-Min)
Max'
REMOTE
INPUT
(Active Low shown)
Measuring Period
Hold
Measurement
Hold
Measurement
Active
Inactive
TrackMax
TrackMin
(t)
Input
Signal
Hold
Measurement
Hold
Measurement
REMOTE
INPUT
Measuring Period Measuring Period
(Active Low shown)

Banner Q5X Series Specifications

General

IP Rating	IP67
Laser Classification	Class 1
Protection Rating	IP67
Connection Type	M12 connector
Supply Voltage	10-30 VDC
Output	PNP or NPN
Operating Voltage	10 V DC to 30 V DC
