R5900049 /13 ClickShare CSE-80030

LEDs behavior Explanation

static red

• receiving content from the Buttons and streaming towards the

display.

• pairing and software update of the Button is done. You can now

unplug the Button from the Base Unit.

• during the first phase of the Base Unit boot process.

blinking white

• system is starting up (during the second phase)

• Button pairing is in progress

• software update of the Base Unit

breathing white

• ECO standby mode

static white

• awake and ready (i.e. showing the welcome message on the

display)

• pairing is done

red blinking

• an error occurred

dark

• deep standby/off

Standby button

The button at the front of the Base Unit has a standby function once the Base Unit is powered

• When the system is in normal operational mode, a push makes the system goes to a pre-defined standby

mode.

• When the system is in a standby mode, a push triggers the system to start up and to go to normal

operational mode.

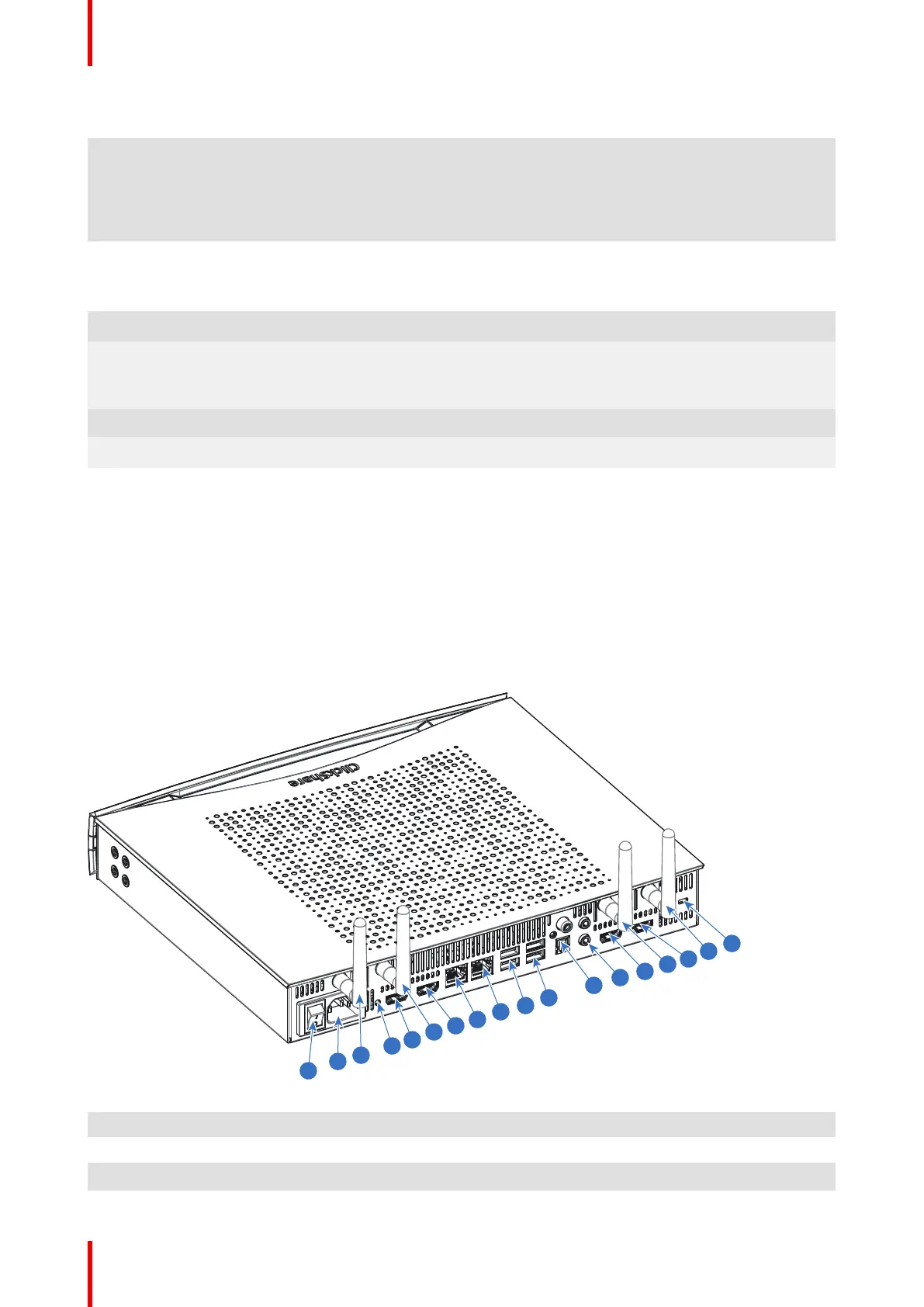

Back layout of the Base Unit

The connection panel is situated at the back of the Base Unit.

Image 2–3

1 Rocker switch

2 Power connection

3a Fixture point for antenna Wi-Fi 1
