R5900049 /13 ClickShare CSE-80098
6.27 Energy savers
About standby
Standby after (minutes): If there is no client connection detected during the standby timeout period, the Base
Unit will enter the selected standby mode.
Default setting: Time to standby: 10 min, the Base Unit will enter the Eco standby mode.
Eco mode
When the Base Unit enters ECO standby mode, it will disable the HDMI output signal and go in low power
mode. The Base Unit's LEDs will be breathing white to indicate the ECO standby mode.
Power consumption in Eco standby: 2.6W
The Base Unit will wake up with one of the following actions:
• Button connecting with the Base Unit
• Press the standby button on the Base Unit
• "Wake up" signal over the network
• Pairing a Button on the Base Unit's USB port
• Detection of display hot plug
Standby mode
When the Base Unit goes in standby mode, it will shut down all processes, including the Wi-Fi access point
and the secondary LAN connection.
When there is an active network connected to the Base Unit's primary LAN interface and Corporate network is
enabled, the primary LAN interface will remain active and the Base Unit's LEDs will be breathing white to
indicate this standby mode. Otherwise, The Base Unit's LEDs will be dark.
Power consumption in Deep standby: 0.4W
The Base Unit will wake up when the standby button on the Base Unit is pressed, or
when the primary LAN interface remains active: a detection of HDMI input hot plug or Button or app
connecting with the Base Unit's primary LAN interface.

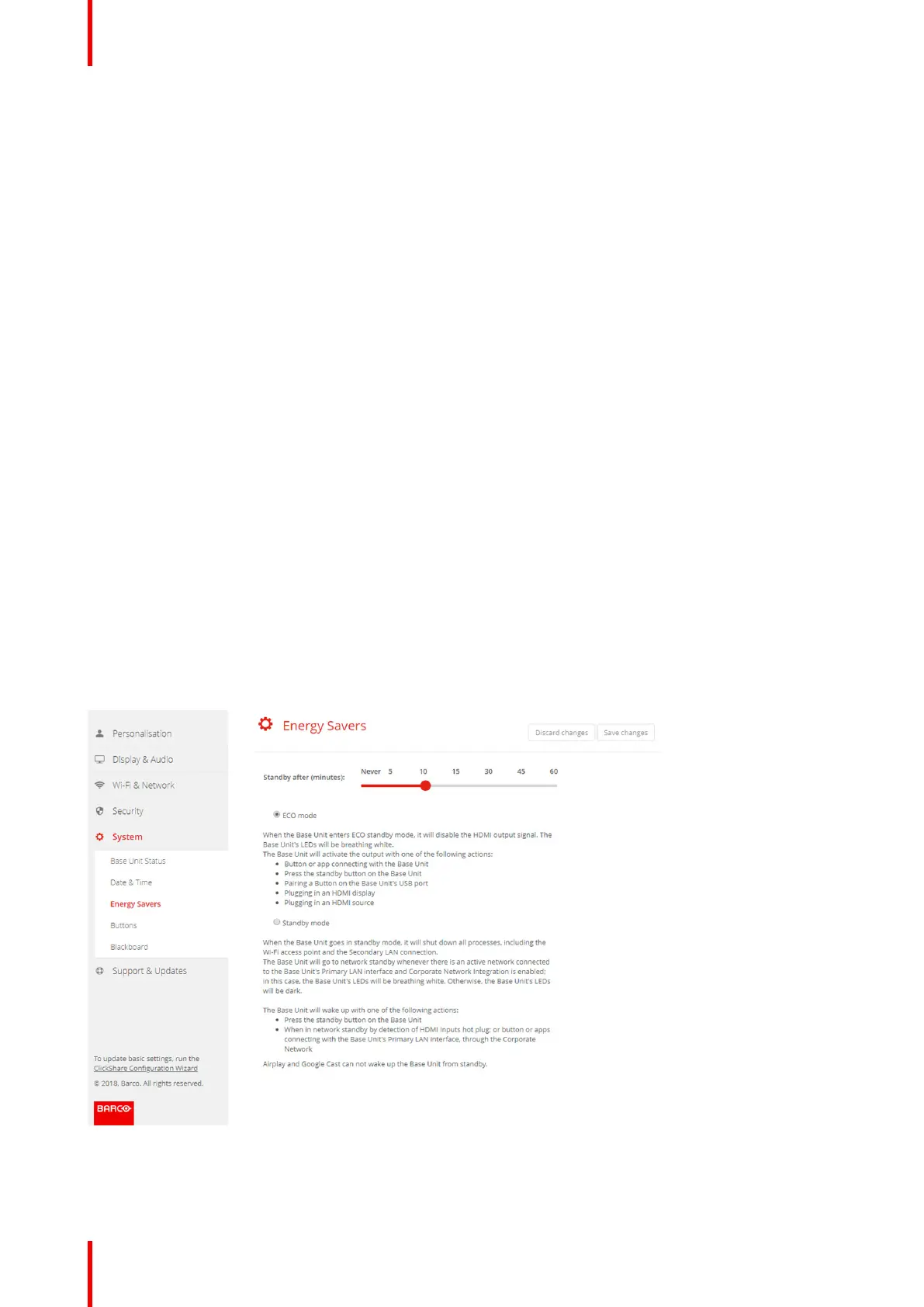

Image 6–48 Energy savers
CSE-800 Configurator
