Barco ClickShare CSE-800 Installation Manual

39R5900049 /13 ClickShare CSE-800

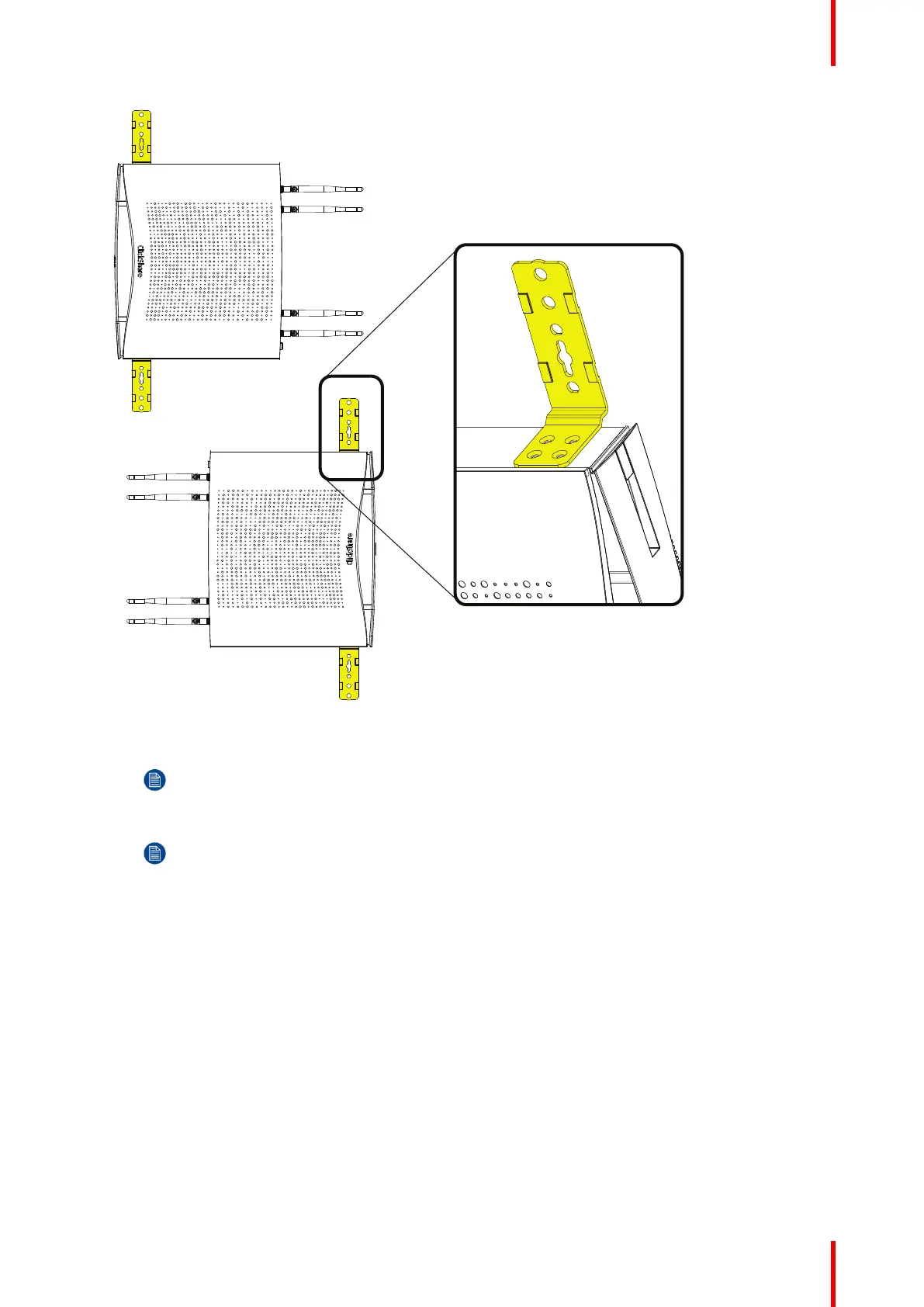

Image 4–1 Mount brackets
2. Drill 2 holes in the wall, at a distance of 370.8 mm (14.6 inch) or 464 mm (18.3 inch) from each other on a
vertical line.
Note: Always mount the Base Unit as shown in the drawing.
3. Insert a plug in each hole (if needed, depends on the wall type).
Note: Mounting screws and plugs are not included in the CSE-800 box . The type of screws and plugs
depend on the type of wall (stone, wood, plasterboard, ...) you are mounting the Base Unit to.
CSE-800 Installation
