2.1 Convention projector orientation
Convention
This manual refers to the left side of the projector as the side at your left hand when standing behind the
projector and looking at the projection screen in front of the projector.

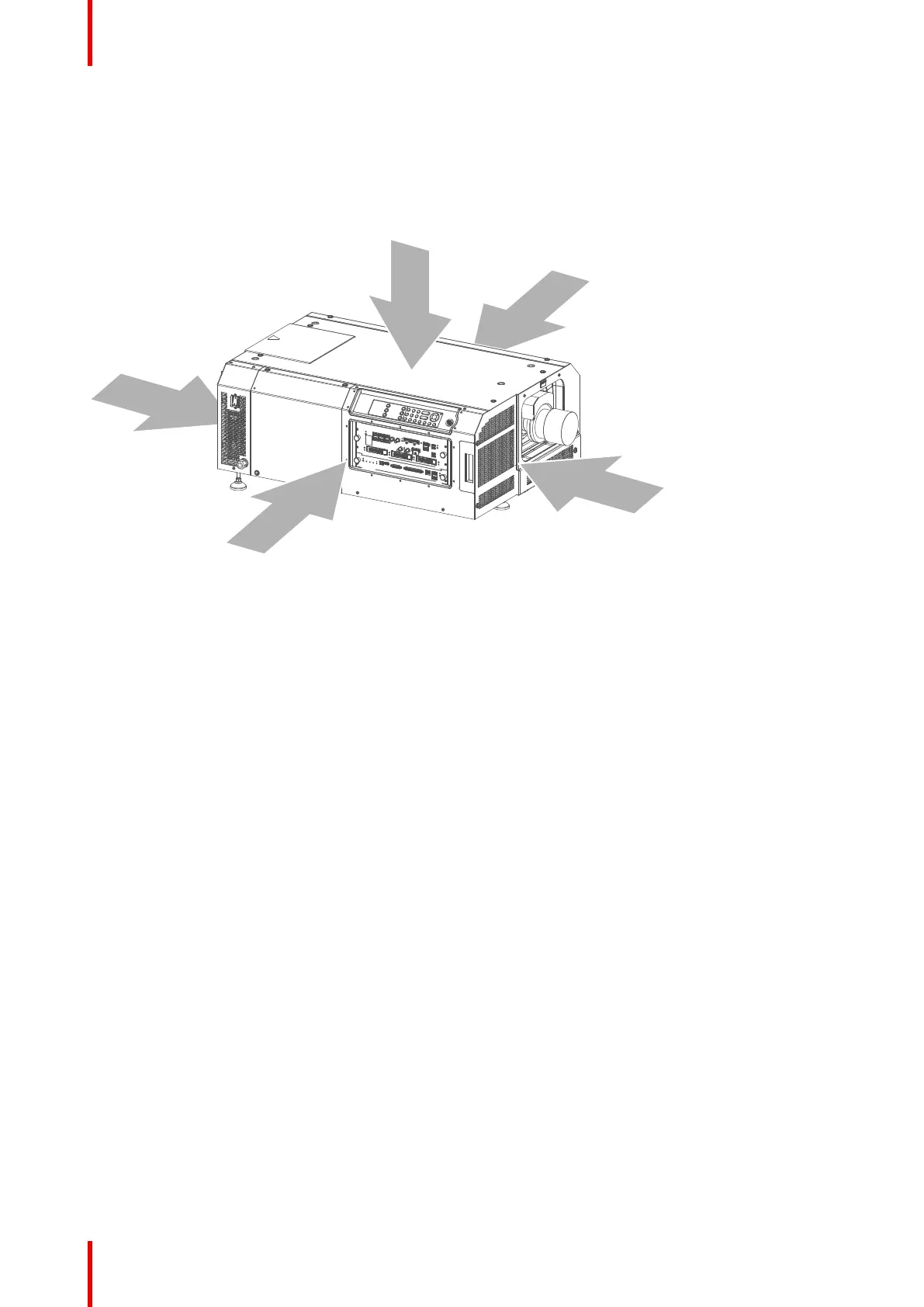

Image 2-1
T Top of the projector.
L Left side of the projector (Light Processor side).
F Front of the projector.
R Right side of the projector (Light Source side &
Input side).
B Back side of the projector.
