R5906848 /04 DP2K SLP Series 195

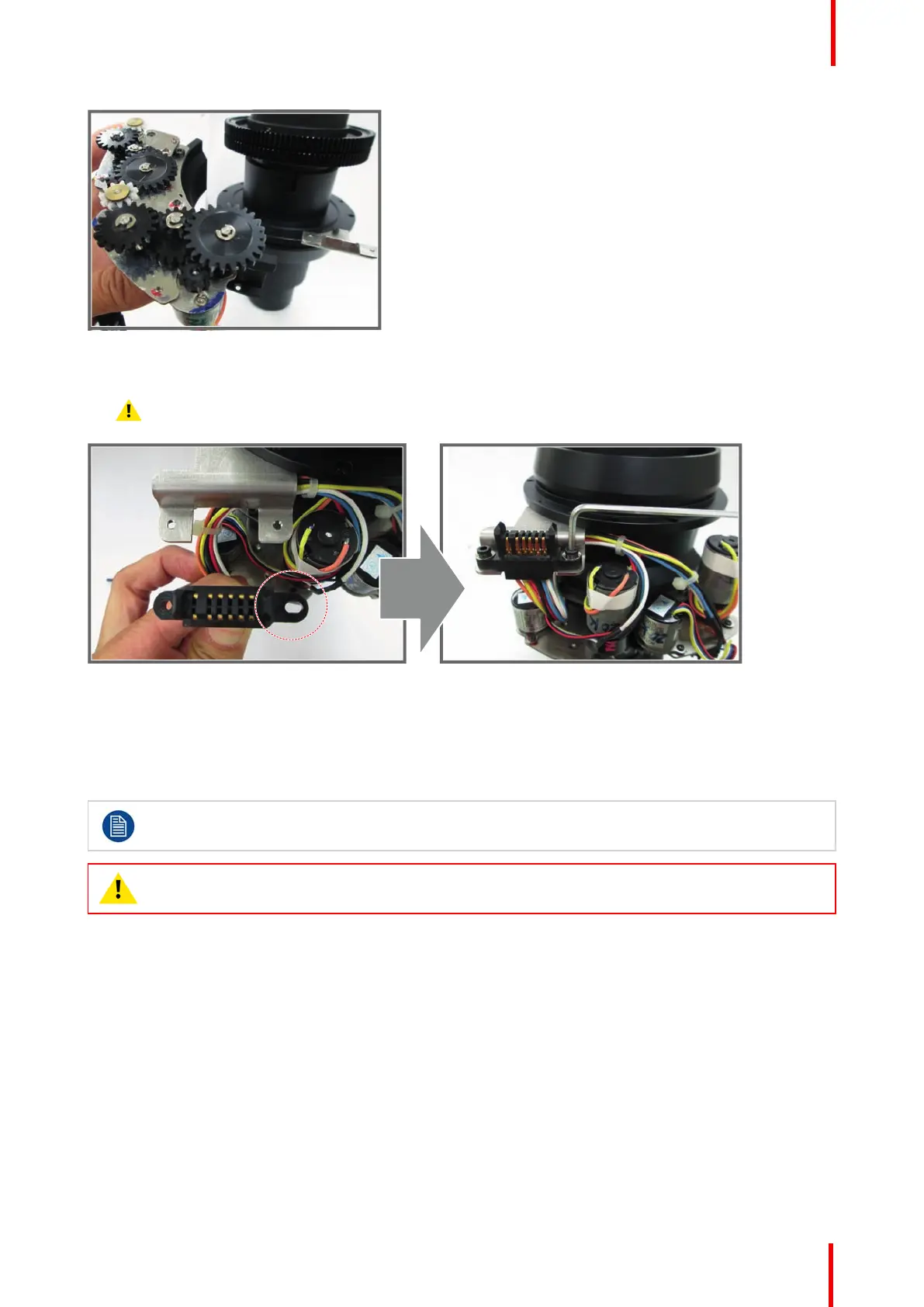

Image 16-43
6. Mount the electrical socket. Use an Allen wrench to fasten the two screws.
Caution: Ensure to orient the electrical socket as illustrated.
Image 16-44
7. Install the cover of the motor block. Use an Allen wrench to fasten the three screws (reference 1 Image 16-40).
16.16 Replacement of the Inner Dust Rubber
This procedure assumes that the Lens Holder is removed from the projector. See procedure
“Removal of the Lens Holder”, page 181.
CAUTION: Be careful as not to damage the inner dust rubber while executing this procedure.
Required tools
• 13 mm nut driver or open-end wrench
• 5.5 mm nut driver or box-end wrench
• PH1 Phillips screwdriver
Required parts
• Lens holder cover
• Dust rubber frame
• Inner dust rubber
• 6 M3 hex nuts
Lens Holder
To Next Page
