R5906848 /04 DP2K SLP Series 275
22.5 Removal of the top cover plate of the Light
Processor compartment
To access the top cover plate of the Light Processor compartment the projector top cover has to be
removed first. This procedure assumes that the projector top cover is already removed.
CAUTION: Opening the Light Processor compartment by removing the top cover plate or side cover
plate will result in a tamper event. An authorization to clear the security warning on the projector,
after closing off the Light Processor compartment, will be needed!
Required tools
Allen wrench 3 mm
How to remove the top cover plate from the Light Processor compartment?

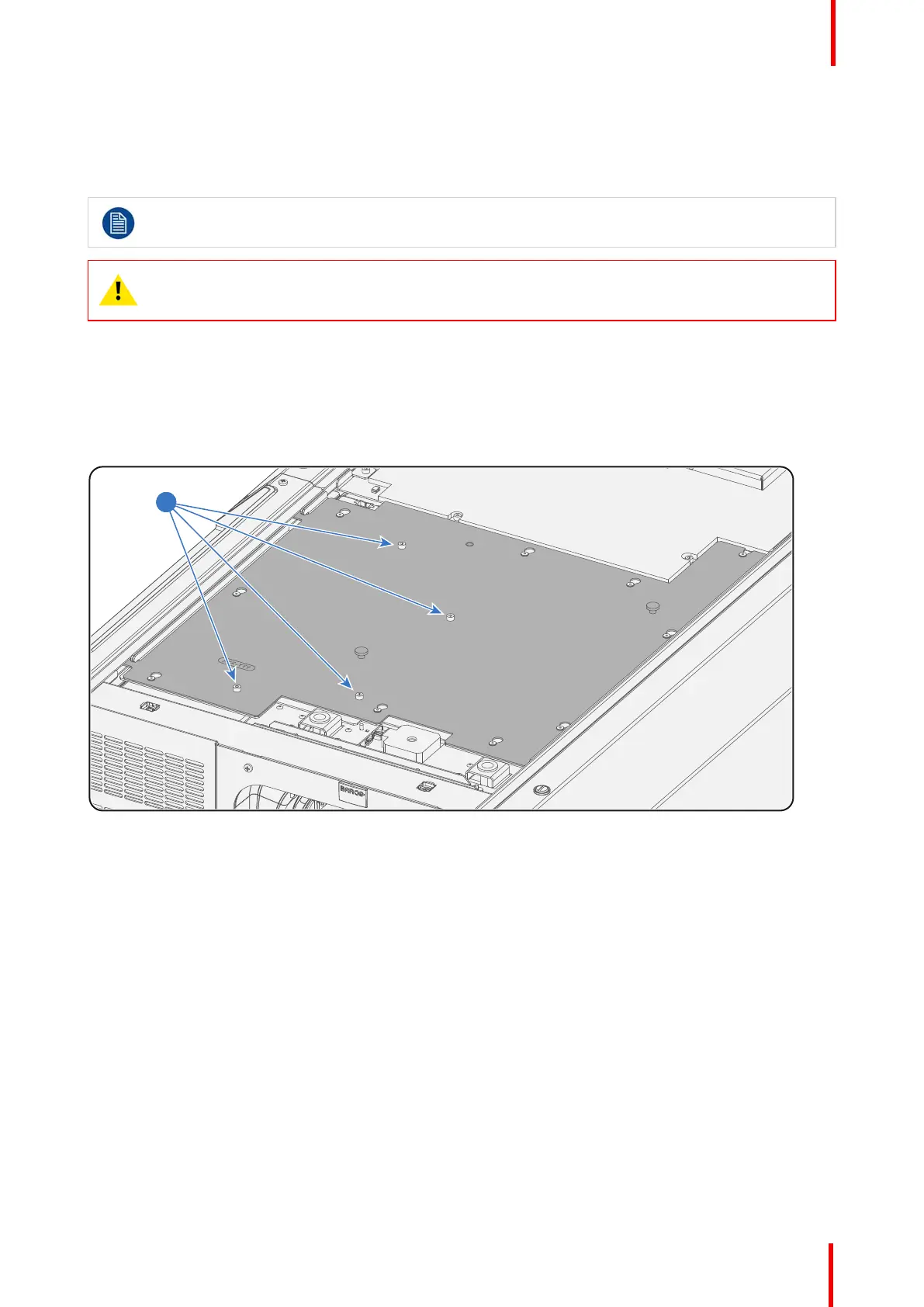

1. Remove the four screws (reference 1 Image 22-6) at the top of the cover plate. Use a 3 mm Allen wrench.
Image 22-6
2. Remove the top cover plate as follows:
1. Grab the top cover plate by the two handles (reference 2 Image 22-7) and slide it towards the front side
(lens side) of the projector. All latches (reference 3 Image 22-7) must become free.
2. Tilt the top cover plate as illustrated.
3. Move the top cover plate away from the projector.
Removal and installation of the projector covers
