R5906848 /04 DP2K SLP Series274
22.4 Removal of the left side cover
WARNING: Switch off the projector prior to starting with this procedure, unless otherwise specified
in the procedure.
Required tools
Flat screwdriver 7 mm
How to remove the left side cover?

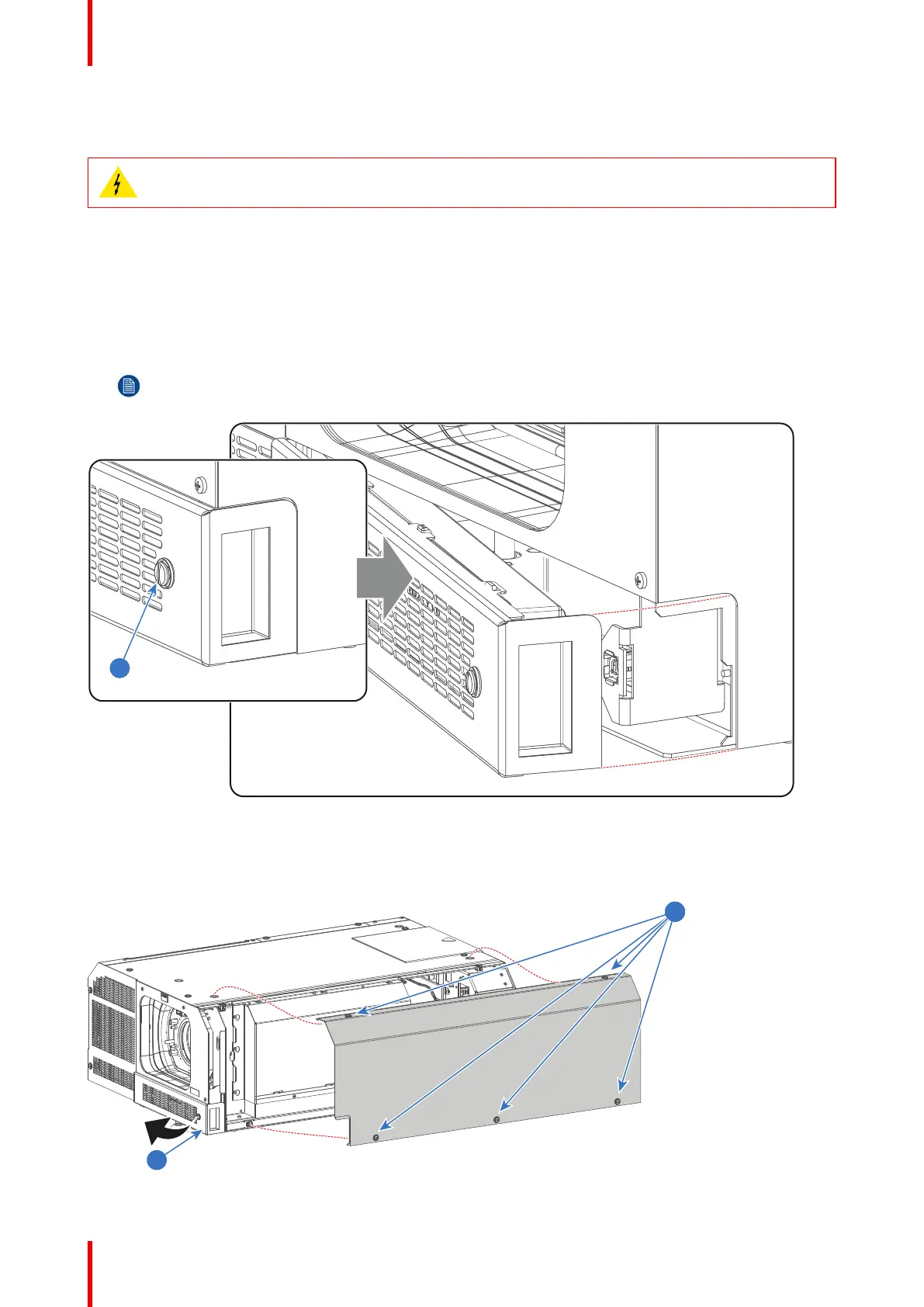

1. Release the small dust filter assembly from the front side of the projector. Use 7 mm flat screw driver to loosen
the captive screw (reference 1 Image 22-4) of the small dust filter assembly.
Note: The left side cover is partial captured by the sheet metal of the small filter assembly. For that,
this filter has to be (partially) removed first.
1
Image 22-4
2. Loosen the five captive screws (reference 2 Image 22-5) of the left side cover using a 7 mm flat screwdriver.
3. Remove the left side cover from the projector.
1
2
Image 22-5
Removal and installation of the projector covers
