R5906848 /04 DP2K SLP Series222

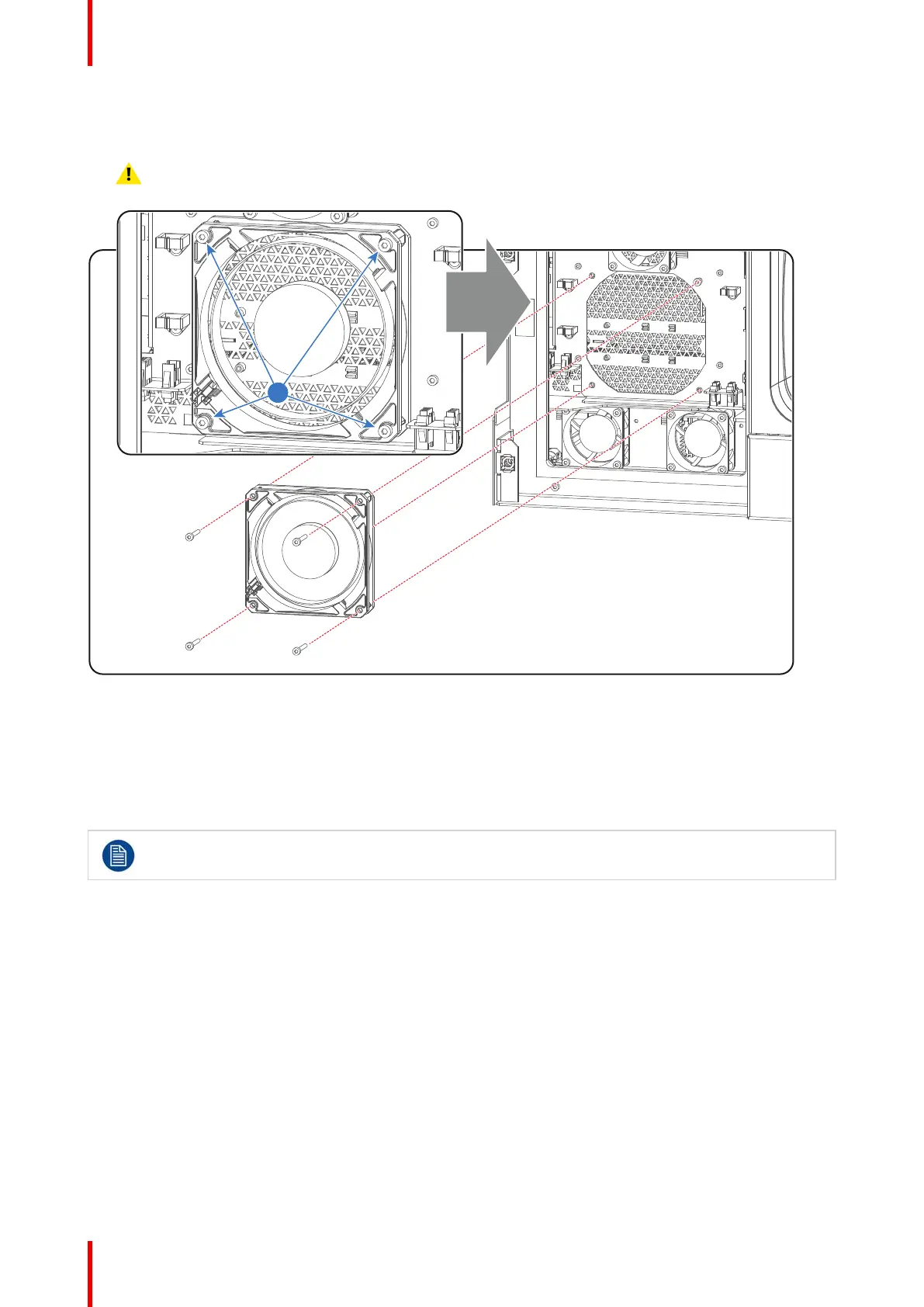

2. Replace the large fan as illustrated. Use a 3mm Allen wrench to loosen/fasten the four fixation screws
(reference 6 Image 18-13).
Caution: Ensure to place the fan guard in front of the fan and that the airflow of the fan is towards the
Card Cage.
6
Image 18-13
3. Connect the wire of the new fan with the right socket (reference 4 Image 18-12) and engage the wire in the
cable clamps.
18.12 Replacement of the ICP fan
This procedure assumes that the projector top cover and top cover plate are removed from the
projector.
Required tools
3mm Allen wrench.
How to replace the ICP fan of the Card Cage?
1. Disconnect the wire with the red cable tie (reference 1 Image 18-14) from the Signal Backplane and release
the wire from the cable clamp (reference 2Image 18-14).
Card Cage
