R5906848 /04 DP2K SLP Series62

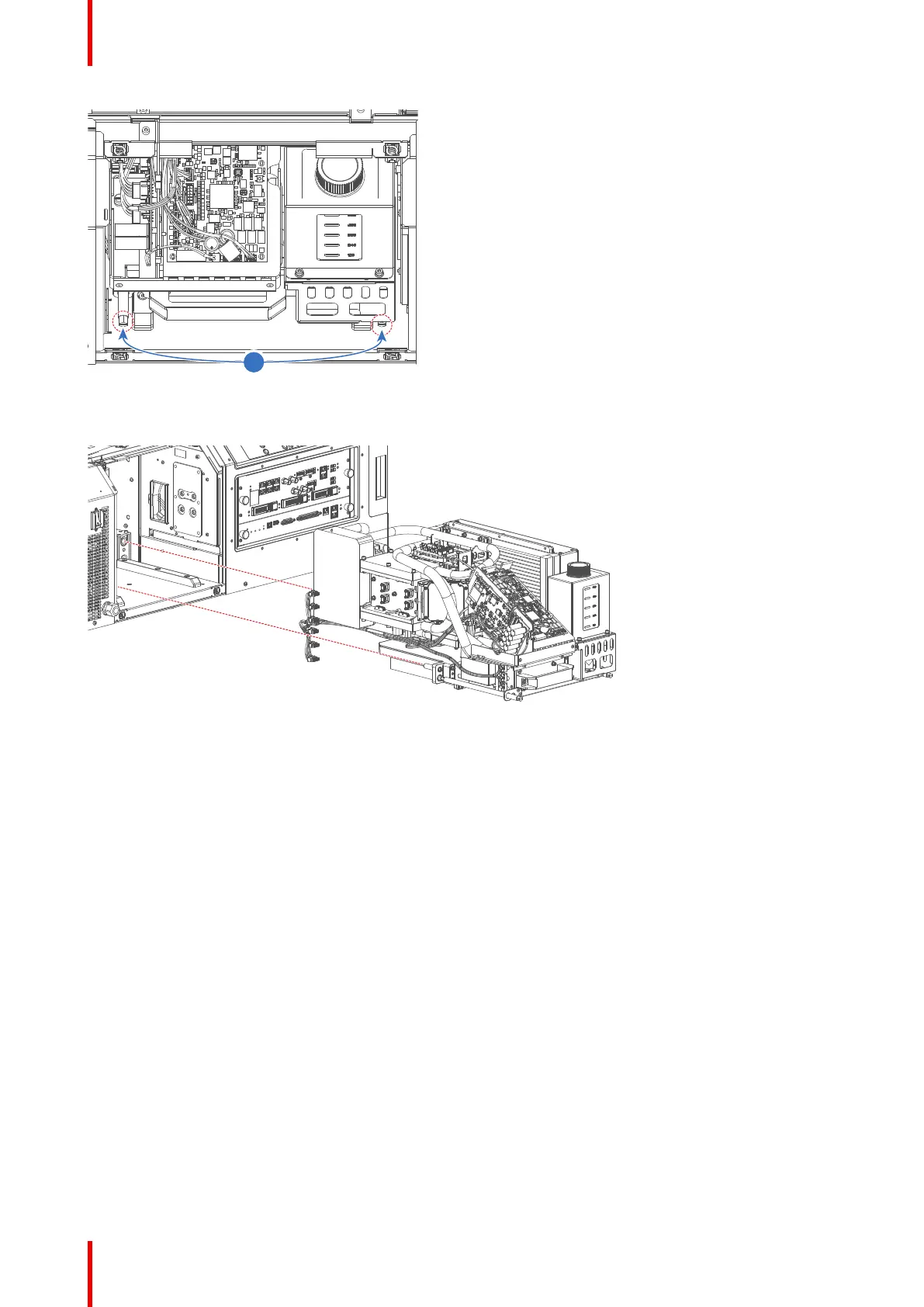

Image 7-5
5. Gently slide out the Light Source and remove it.
Image 7-6
7.3 Removal of the Controller assembly
Required tools
• Allen wrench 3 mm
• Flat screwdriver 7 mm
• Side cutter
How to remove the Controller assembly
1. Remove the Light Source Cover.
2. Cut the cable ties holding the Light Source wiring to the Controller assembly.
Laser Phosphor Light Source
