R5906848 /04 DP2K SLP Series 63
Image 7-7

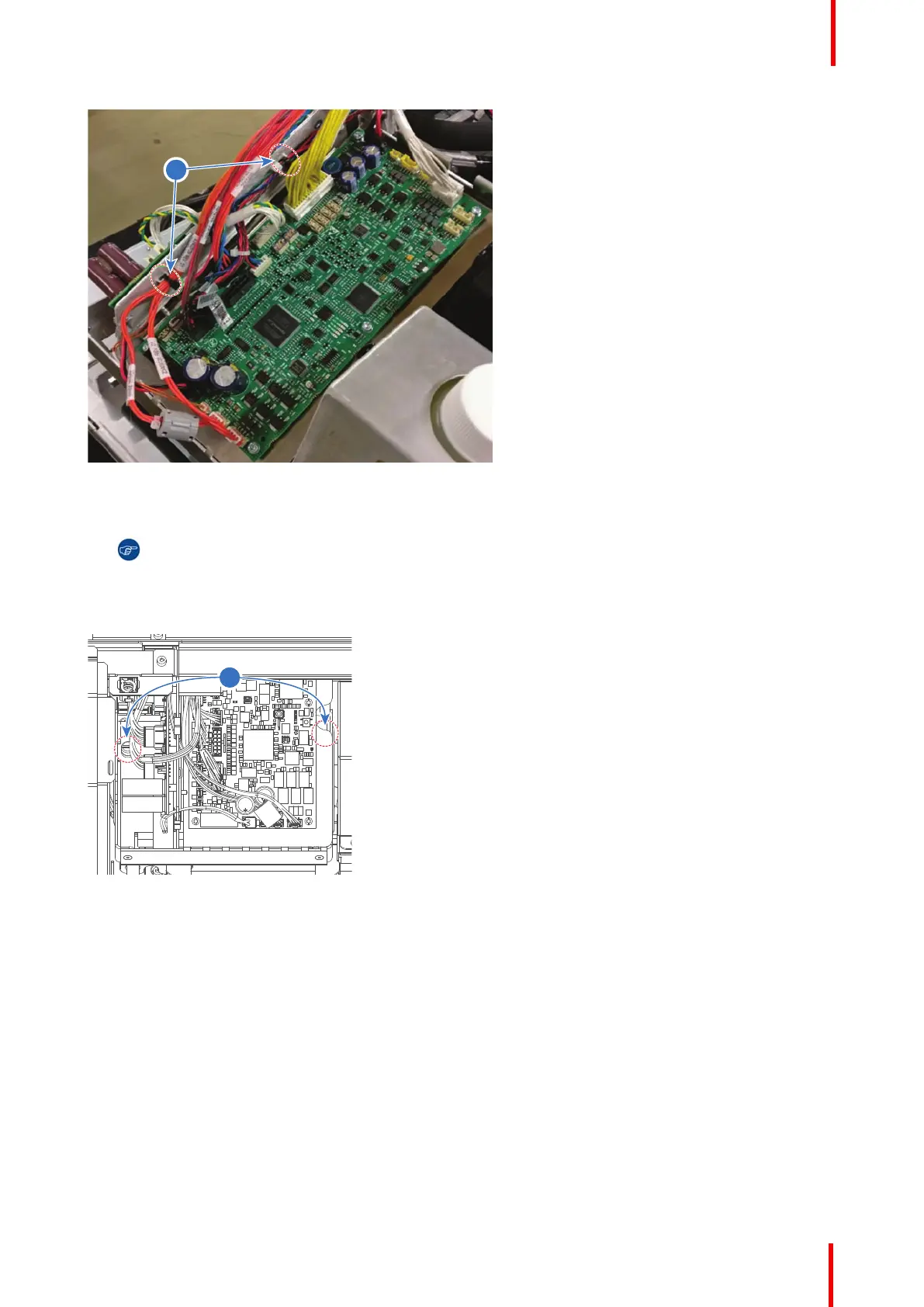

3. Remove the wiring coming to the Controller assembly.
Tip: If you're not familiar with the wiring layout, take notes of the wiring to and from both the Laser
Control Board (LCB) and Peltier Controller.
4. Loosen the 2 set screws, holding the Controller assembly onto the light source, but do not remove them
(reference 1,Image 7-8 ).
Image 7-8
5. Remove the Controller assembly from the light source as illustrated. Use a 3 mm Allen wrench to release the
two hex screws (reference 2, Image 7-9).
