R5906848 /04 DP2K SLP Series52

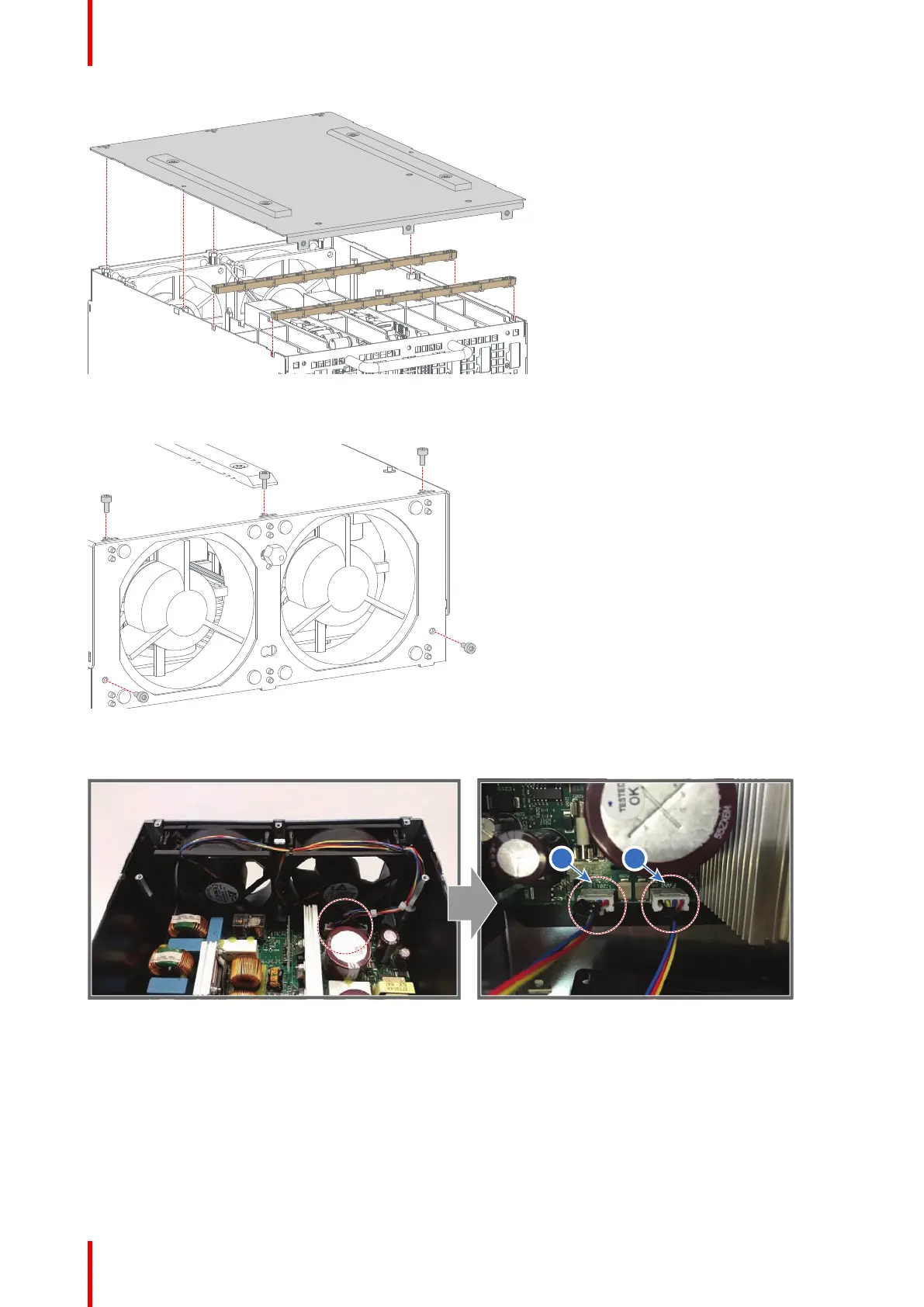

Image 6-14

4. Remove the five screws, holding the fan assembly onto the module. Use a 2.5 mm Allen wrench.

Image 6-15

5. Unplug the fan cable of the desired fan.

2 1

Image 6-16

1 Fan 1

2 Fan 2

6. Remove the fan assembly.

Laser Driver Module (LDM)
