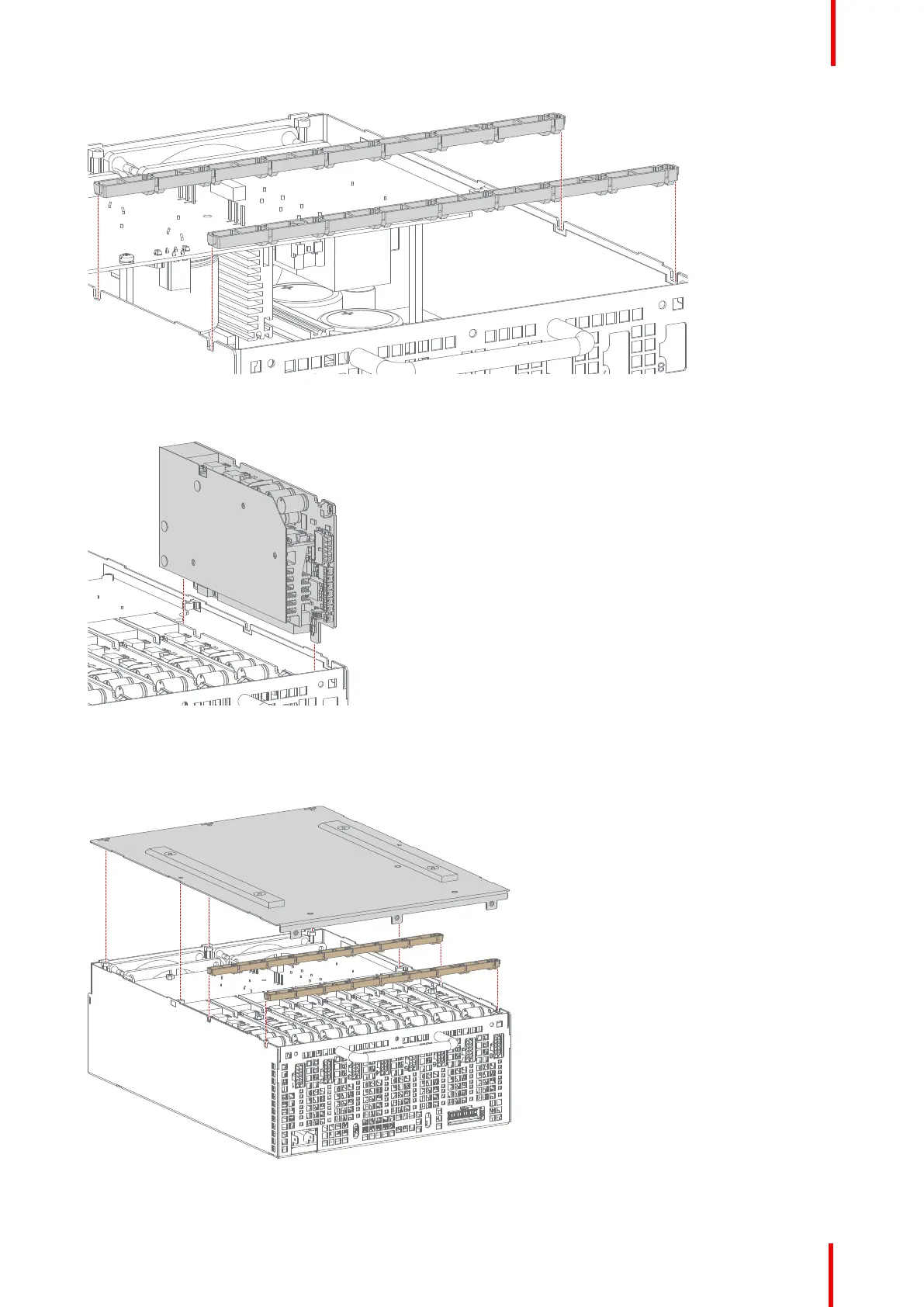

Image 6-27
4. Install all LDM boards into the new module.
Image 6-28
5. Place both fixation rails back on top of the Laser Driver Boards.
6. Place the bottom plate back on the Module.
Image 6-29
Laser Driver Module (LDM)
