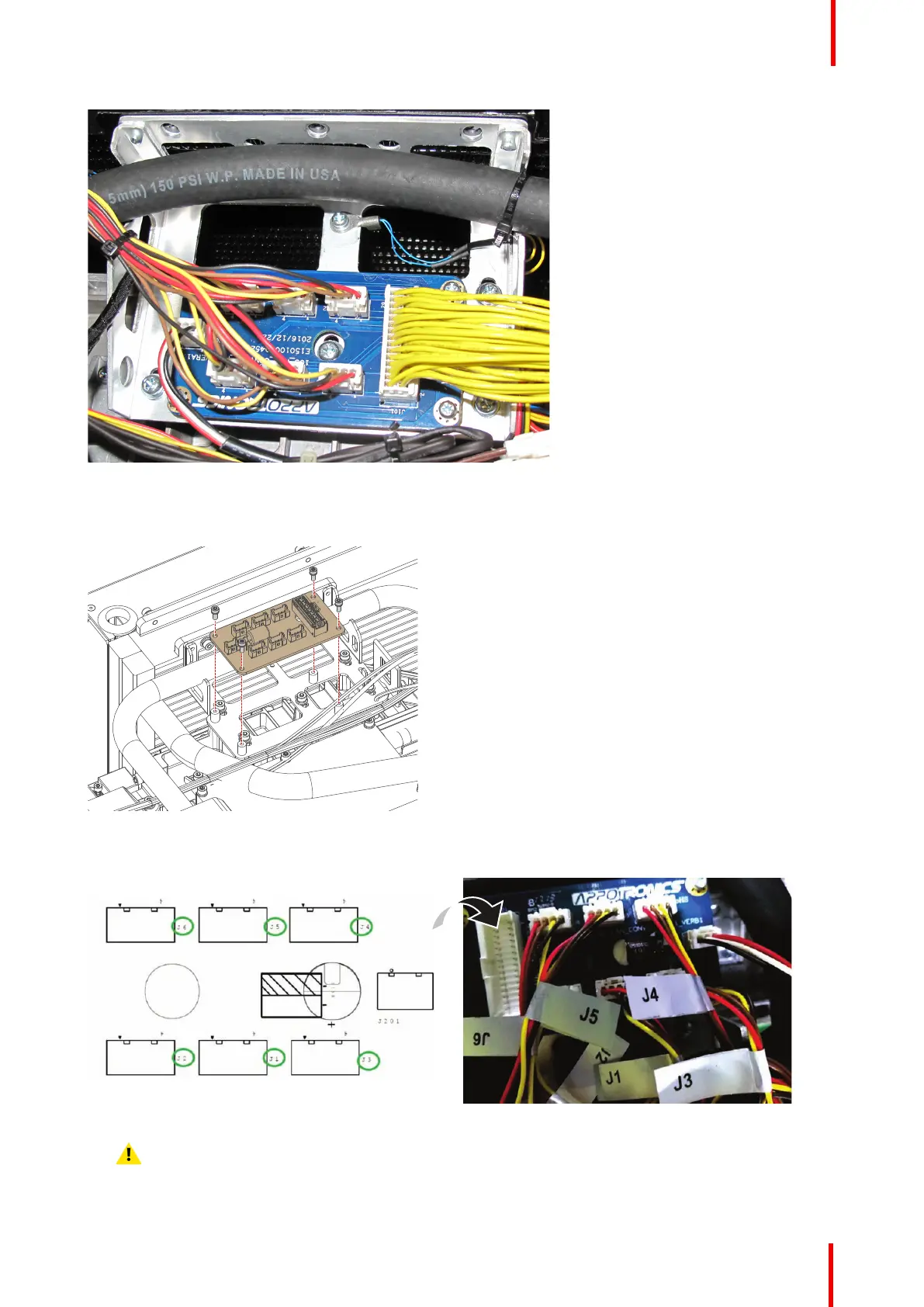

R5906848 /04 DP2K SLP Series 73

Image 7-28

3. Replace the Fan Interconnection Board as illustrated. Use a 2.5 mm Allen wrench to loosen and tighten the

screws.

Image 7-29

4. Reconnect all wire units to the Fan Interconnection board as illustrated.

Image 7-30

Caution: Pay attention to the labels on the fan wires and the fan connector numbers.
