R5906848 /04 DP2K SLP Series80

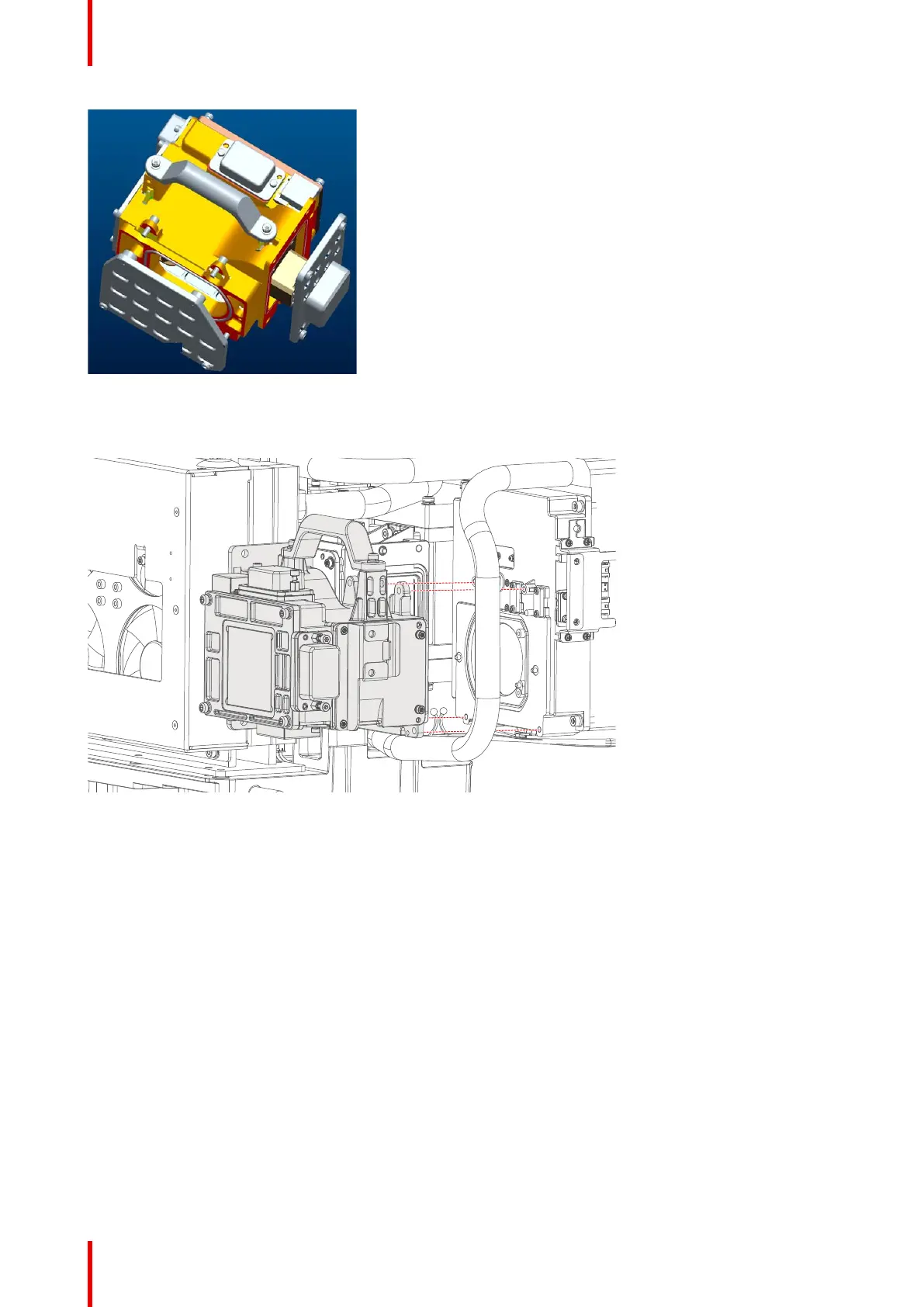

Image 7-43
3. Carefully place the combiner onto the light source. Make sure the O-rings properly fit the openings in the
combiner unit.
Image 7-44
4. Lock the combiner onto the light source. Use the following screws:
• Four Torx screws that will lock the combiner to the phosphor wheel (reference 3). Use a T20 Torx
screwdriver to tighten these screws.
• Four hex screws that will lock the combiner to the rest of the light source unit (reference 4). Use a 4 mm
Allen wrench to tighten these screws.
Laser Phosphor Light Source
