4. Lamp & lamp house

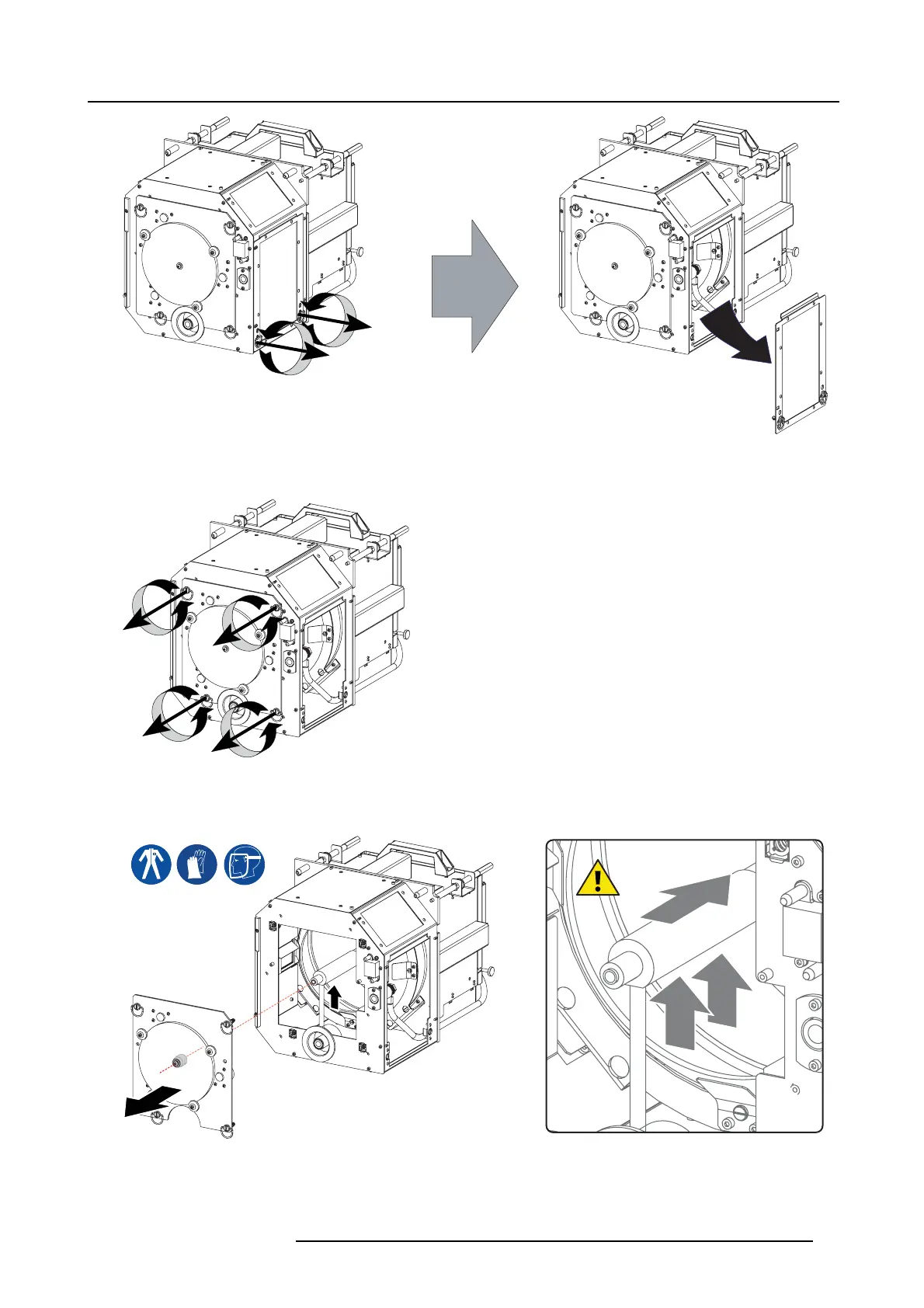

Image 4-7
3. Release the four retaining thumbscrew s of the U V blocker assembly as illustrated. M
ake s ure that the UV blocker as sembly
remains in its position while releasing t he screws.
Image 4-8
4. Support the xenon lamp ins ide the Lam p House w ith one hand while removing the UV blocker assembly from the Lam p House.
Note that some xenon lamps are installed with an anode adaptation bushing.
Caution: Ensure that y ou wear protective clothing, a full face shield and protective gloves.
Image 4-9
5. Slide the white anode socket, which is connected v ia a thick wire with the x enon lamp, upw ards away from its position and then
remove the xenon lamp with anode socket from the Lamp House.
R59770351 DP2K-20C 02/02/2010
31
