4. Lamp & lamp house

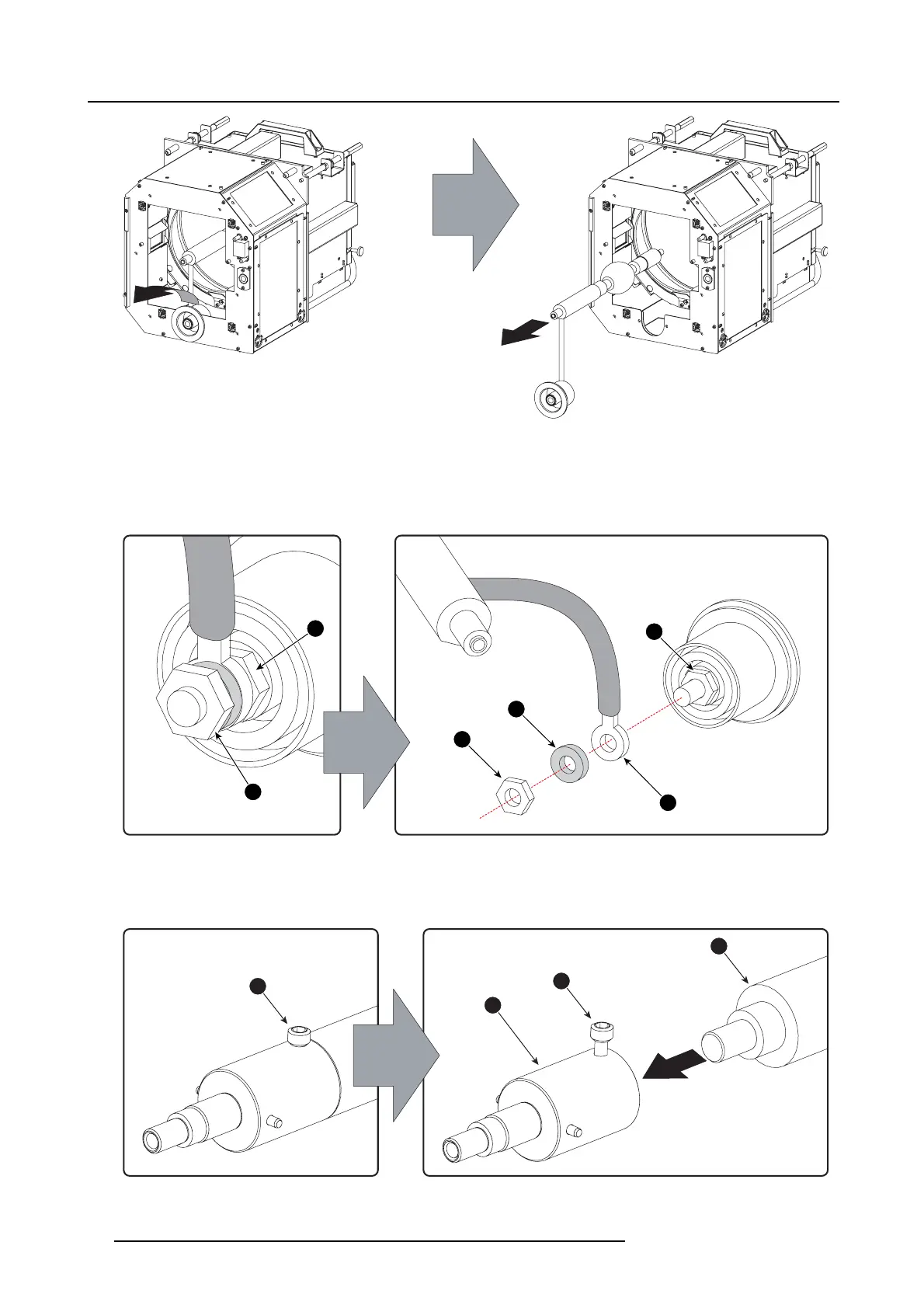

Image 4-10
6. Place the xenon lamp into a protective container or wrap a protective cloth around the xenon lam p prior to proceed with this
procedure.
7. Remove the anode wire lug from the anode so cket. Use for that two open end wrenches of 17 mm. Hold one nut (reference
7) with one wrench while releas ing the other nut (reference 4) w ith the other wrench. Note that a plain washer (reference 5) is
provided between the lock nut (reference 4) and the anode wire lug (reference 6).
5
7
7
6
4
4
Image 4-11
Note: The electrical connection pins of older Lamp H ouses may contain two flat washers, one on each side of the wire lug. New
Lamp Houses can contain only one flat was her due to the shorter thread clearance of the new im proved connection pins.
8. Remov e the cathode lamp adaptor (reference 11) from the xenon lamp (reference 13) as illustrated. Use a 5 mm Allen wrench
to release the adaptor fixation screw (reference 12) of the ada ptor.
12
12
11
13
Image 4-12
32 R59770351 DP2K-20C 02/02/2010
