4. Lamp & lamp house
9 Nm
5
7
7
6
4
4

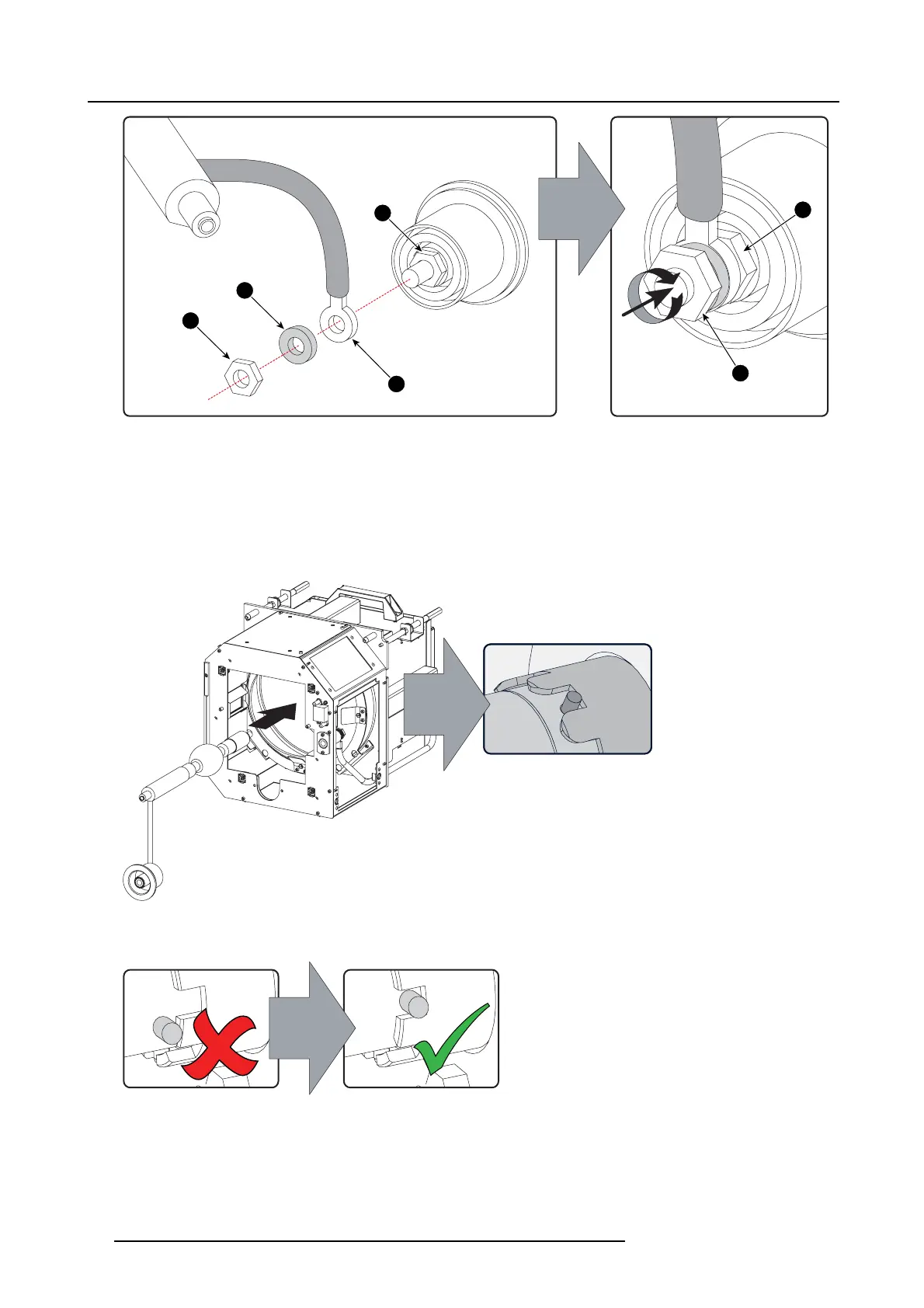

Image 4-15
Anode lug installation
4. Remove the p rotective container or unwrap the p rotective cloth from the xenon lam p.
Warning: Ensure that y ou wear protective clothing, a full face shield and protective gloves.
Tip: Write down the serial number of the lamp. You will need this while updating the lam p parameters after installation of the
lamp. The serial num ber of the lamp is engraved in the neck of the xenon lamp.
5. Gently guide the xenon lamp into position inside the Lamp House as illustrated. Anode socket hanging vertical down. W hile
inserting th e lamp, rotate it slightly, engaging the pins of the
cathode adapter in the foreseen slots. This is to ensure the lam p
cathode is completely ins erted.
Image 4-16
Lamp bulb installat ion
Warning: Make sure that the both pins of the cathode adapter are engaged in the foreseen slots.
Image 4-17
6. Insert the anode s ocket
into position as illustrated.
Caution: Avoid any te nsion on the anode wire, so there is no mechanical stress on the lamp.
36
R59770351 DP2K-20C 02/02/2010
