4. Lamp & lamp house

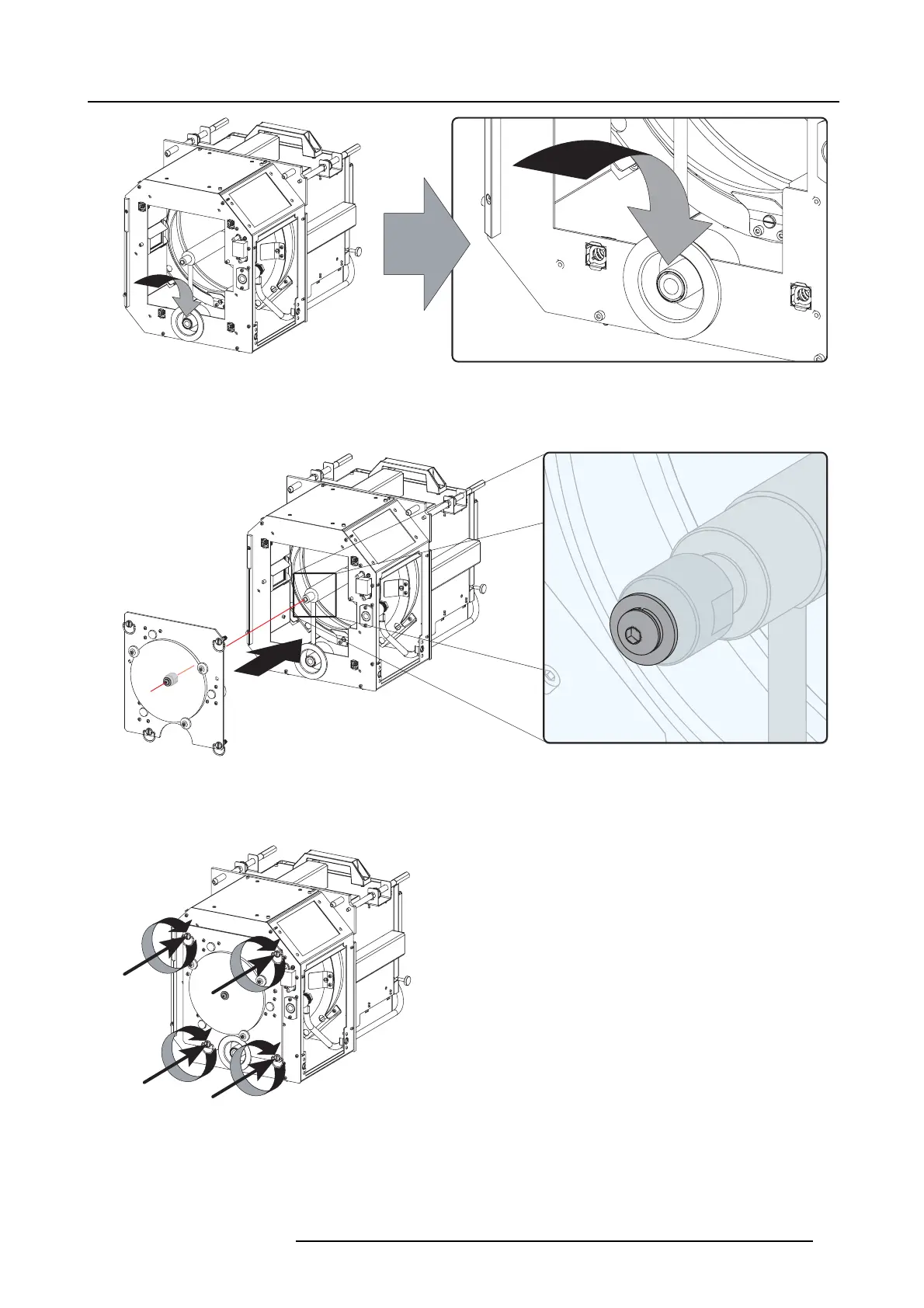

Image 4-18
Anode socket installation
7. Reinstall the UV blocker assembly as illustrated. Make sure that the xenon lamp is properly suppo rted by the lam p supporting
mechanism in the centre of the UV blocker. Use the opening at the side of the Lamp House to guide the suppo rting pin of the
xenon lamp into the anode supporting mechanism.
Image 4-19
UV blocker installation
8. Secure the UV blocker by f astening th e four reta ining thumbsc rews as illustrated.
Note: Please ensure that the thumb screws turning wire s are flush w ith the cover o r interference will occu r while inserting t he
lamp hous e into the projector.
Image 4-20
Secure UV blocker
9. Fasten the cathode si
de of the xenon lamp using a hexagon socket head scr ew M6 x 40 and a plain wa sh er as illustrated. Use a
torque of 2,5 N m (1,84 lbf*ft) to fasten the hexagon socket head screw. Use for that a torque wrench with a 5 mm Allen soc ket.
Caution: Make sure that the both pins (reference 10 of image 4 -21) of the cathode adapter rem ain en gaged in the foreseen
slots. Use one hand
to keep the xen on lamp into position while inserting the hexagon socket head screw.
R59770351 DP2K-20C 02/02/2010
37
