4. Troubleshooting
1
2
Image 4-44

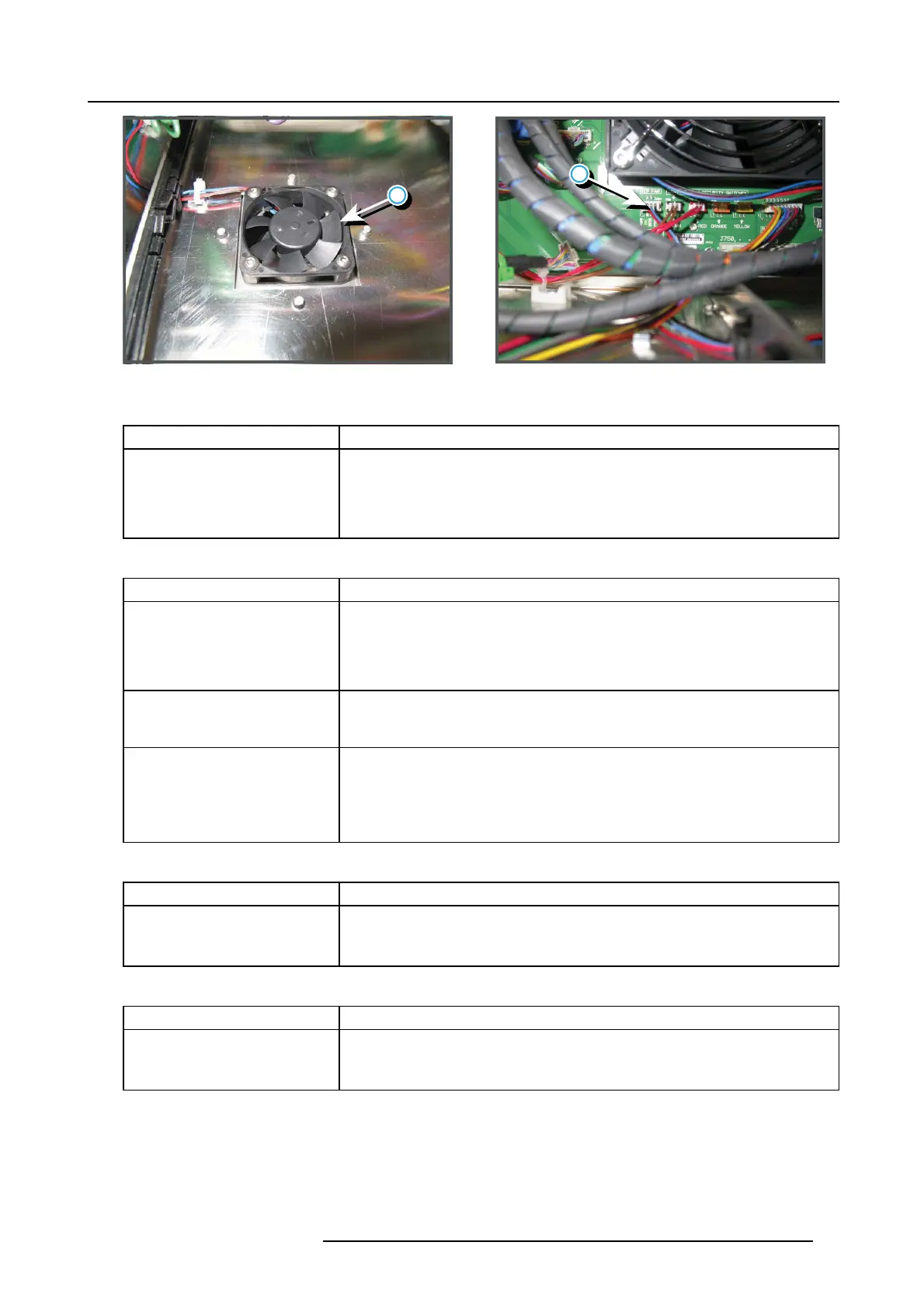

ICP fan connection
Code 6131: “icp fan - voltage high” (Warning)
Situation Solution
Malfunction Fan Control board or
SMPS board.
Measure on the Signal Backplane the ++12V voltage on pin 1, 2 or 3 of the connector of
the b lack wire unit which comes from the SMP S board. See im age 4-43.
If the measured voltage is about12V then replace the Fan Control board. See
"Removing a board in the card cage", page 213. O therwise replace the SMP S board.
See"Replacement of the S witched M ode Power Sup ply", page 281.
Code 6133: “icp fan - voltage low” (Warning)
Situation Solution
Malfunction Fan Control board or
SMPS board.
Measure on the Signal Backplane the ++12V voltage on pin 1, 2 or 3 of the connector of
the b lack wire unit which comes from the SMP S board. See im age 4-43.
If the measured voltage is about12V then replace the Fan Control board. See
"Removing a board in the card cage", page 213. O therwise replace the SMP S board.
See"Replacement of the S witched M ode Power Sup ply", page 281.
Short circuit or b ad connection. Check the Signal B ackplane f or bad connections.
Damaged insulation of the w ire
unit of the fan (reference 1 & 2
image 4-44) Note that this fan is
in the Card C age c ompa rtment
underneath the Fan & Motor Control
board.
Check the insulation of the wire unit of the fan.
1. Repair the insulation of the wire unit using shrink sleeve.
2. If not repairable, replace the whole w ire u nit and/o
r f an. S ee "Integrated cinema
processor fan", page 330 .
Code 6200: “maintenance - maintenance required” (Notification)
Situation Solution
Projector requires m aintenance. Go to the menu “Maintenance → Smart maintenance” in the Comm unicator
software.
See also m aintenance program of the projector (included in the service manual).
Code 6210: “lens - no lens parameter file has been activated” (Warning)
Situation Solution
No lens parameter file has been
activated.
Select a suitable lens parameter file for the installed lens using the Communicator
software.
>Installation >Advanced >Lens parameters >Select
R5905043 DP2K-12C/11CX 19/02/2018 73
